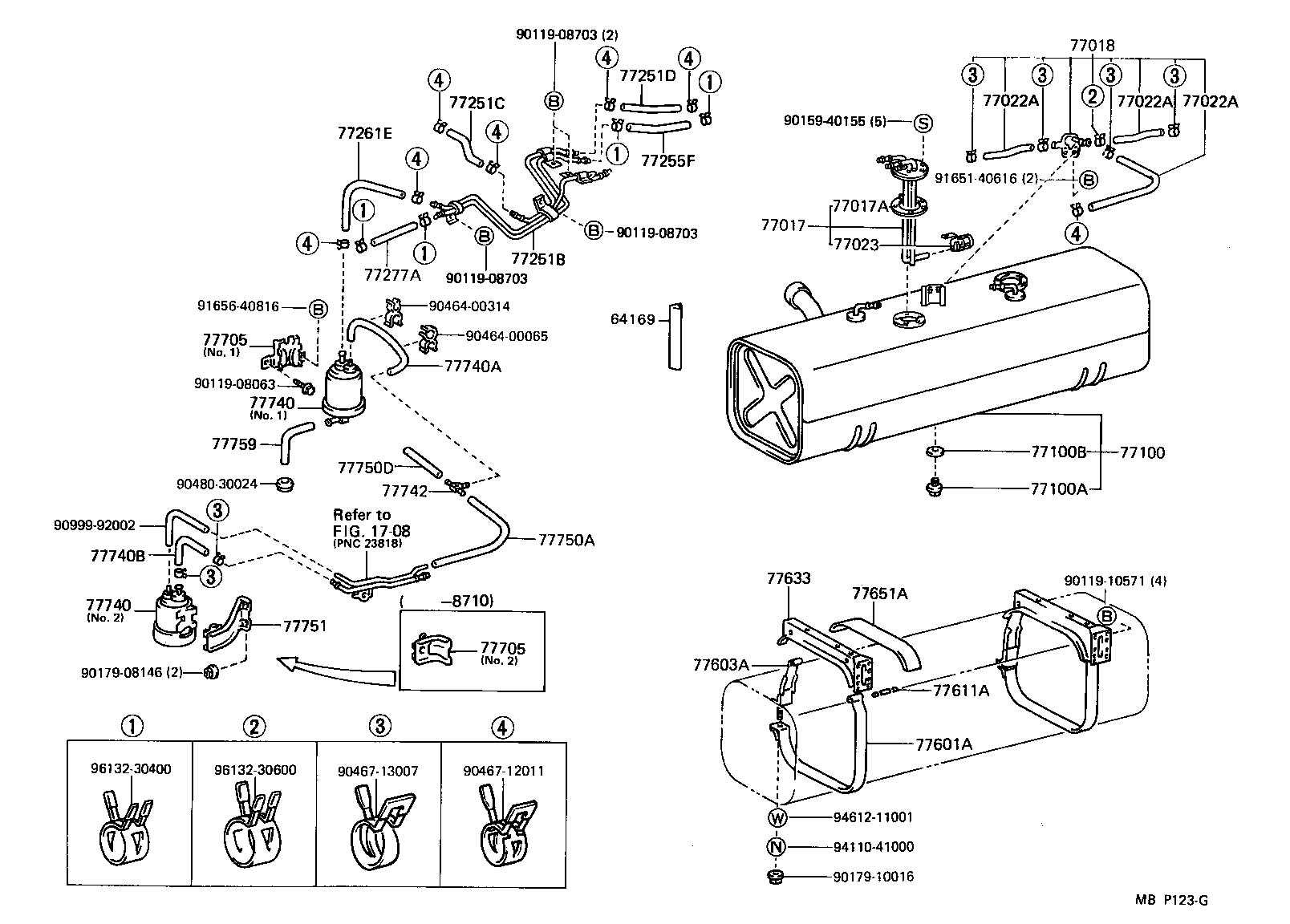

Toyota Hiace truck YH81 FUEL TANK & TUBE

Part #	Description	Period	Qty
64169 - PROTECTOR, FUEL INLET
64169-95A01	LH8#,9#,YH81..TW	08/1987 - 05/1995	1
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-26110	YH81	08/1987 - 05/1995	1
77017A - GASKET, FUEL TANK VENT
77169-14020	LH8#,9#,YH81	08/1987 - 05/1995	1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-26130	YH81	08/1987 - 05/1995	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040	YH81 *H,L=400	08/1987 - 05/1995	1
95333-08020	LH8#,9#,YH81 長さ=200,内径=8	08/1987 - 05/1995	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040	YH81 *H,L=400	08/1987 - 05/1995	1
95333-08020	LH8#,9#,YH81 長さ=200,内径=8	08/1987 - 05/1995	2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040	YH81 *H,L=400	08/1987 - 05/1995	1
95333-08020	LH8#,9#,YH81 長さ=200,内径=8	08/1987 - 05/1995	2
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-14030	YH81	08/1987 - 05/1995	1
77100 - TANK ASSY, FUEL
77001-26410	LH80,90,YH81..TW	08/1987 - 05/1995	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	LH8#,9#,YH81	08/1987 - 05/1995	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	LH8#,9#,YH81	08/1987 - 05/1995	1
77251B - TUBE, FUEL MAIN
77205-26060	YH81	08/1987 - 05/1995	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-26030	YH81	08/1987 - 05/1995	1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06020	YH81 *H,L=200	08/1987 - 08/1993	1
95334-06014	YH81 *H,L=140	08/1993 - 05/1995	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-04020	YH81 長さ=200	08/1993 - 05/1995	1
95333-04020	YH81 長さ=200	08/1987 - 08/1993	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-26020	YH81	08/1987 - 05/1995	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-11004	YH81 長さ=280	08/1987 - 05/1995	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-26060	LH8#,9#,YH81	08/1987 - 05/1995	2
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-26030	LH8#,9#,YH81	08/1987 - 05/1995	2
77611A - PIN (FOR FUEL TANK BAND)
77653-25010	LH8#,9#,YH81	08/1987 - 05/1995	4
77633 - STAY, FUEL TANK
77501-25091	LH8#,9#,YH81	12/1994 - 05/1995	2
77501-25090	LH8#,9#,YH81	08/1987 - 12/1994	2
77651A - CUSHION, FUEL TANK, NO.1
77651-26040	LH8#,9#,YH81	08/1987 - 05/1995	2
77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER
77705-26021	YH81 NO.2	08/1987 - 10/1987	1
77705-26031	YH81 NO.1	08/1987 - 10/1987	1
77705-26031	YH81	10/1987 - 05/1995	1
77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER
77705-26021	YH81 NO.2	08/1987 - 10/1987	1
77705-26031	YH81 NO.1	08/1987 - 10/1987	1
77705-26031	YH81	10/1987 - 05/1995	1
77740 - CANISTER ASSY, CHARCOAL
77740-26060	YH81 NO.2	08/1987 - 10/1987	1
77704-60050	YH81 NO.1	08/1987 - 05/1995	1
77740-27210	YH81 NO.2	10/1987 - 05/1995	1
77740 - CANISTER ASSY, CHARCOAL
77740-26060	YH81 NO.2	08/1987 - 10/1987	1
77704-60050	YH81 NO.1	08/1987 - 05/1995	1
77740-27210	YH81 NO.2	10/1987 - 05/1995	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-14104	YH81	03/1993 - 05/1995	1
90999-92003	YH81 長さ=600	08/1987 - 05/1995	1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
90445-14098	YH81	10/1987 - 03/1991	1
90445-14104	YH81	03/1991 - 03/1993	1
90447-14048	YH81	03/1993 - 05/1995	1
90445-14136	YH81 長さ=150	08/1987 - 10/1987	1
77742 - WAY, 3(FOR CANISTER)
90413-04005	YH81	08/1987 - 05/1995	1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
90447-14048	YH81	08/1987 - 03/1993	1
77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER)
90999-92002	YH81 *H,L=300	08/1987 - 05/1995	1
90999-92002	YH81 *H,L=300	08/1987 - 10/1987	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-26030	YH81	10/1987 - 05/1995	1
77759 - HOSE, CHARCOAL CANISTER
90910-05180	YH81	08/1987 - 05/1995	1
Common parts
90119-08063
90119-08703
90119-10571
90159-40155
90179-08146
90179-10016
90464-00065
90464-00314
90467-12011
90467-13007
90480-30024
90999-92002
91651-40616
91656-40816
94110-41000
94612-11001
96132-30400
96132-30600
Linked diagrams
1708

YH81-MDP (1987)

(8708- )YH81
