YH81-MDP (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2Y

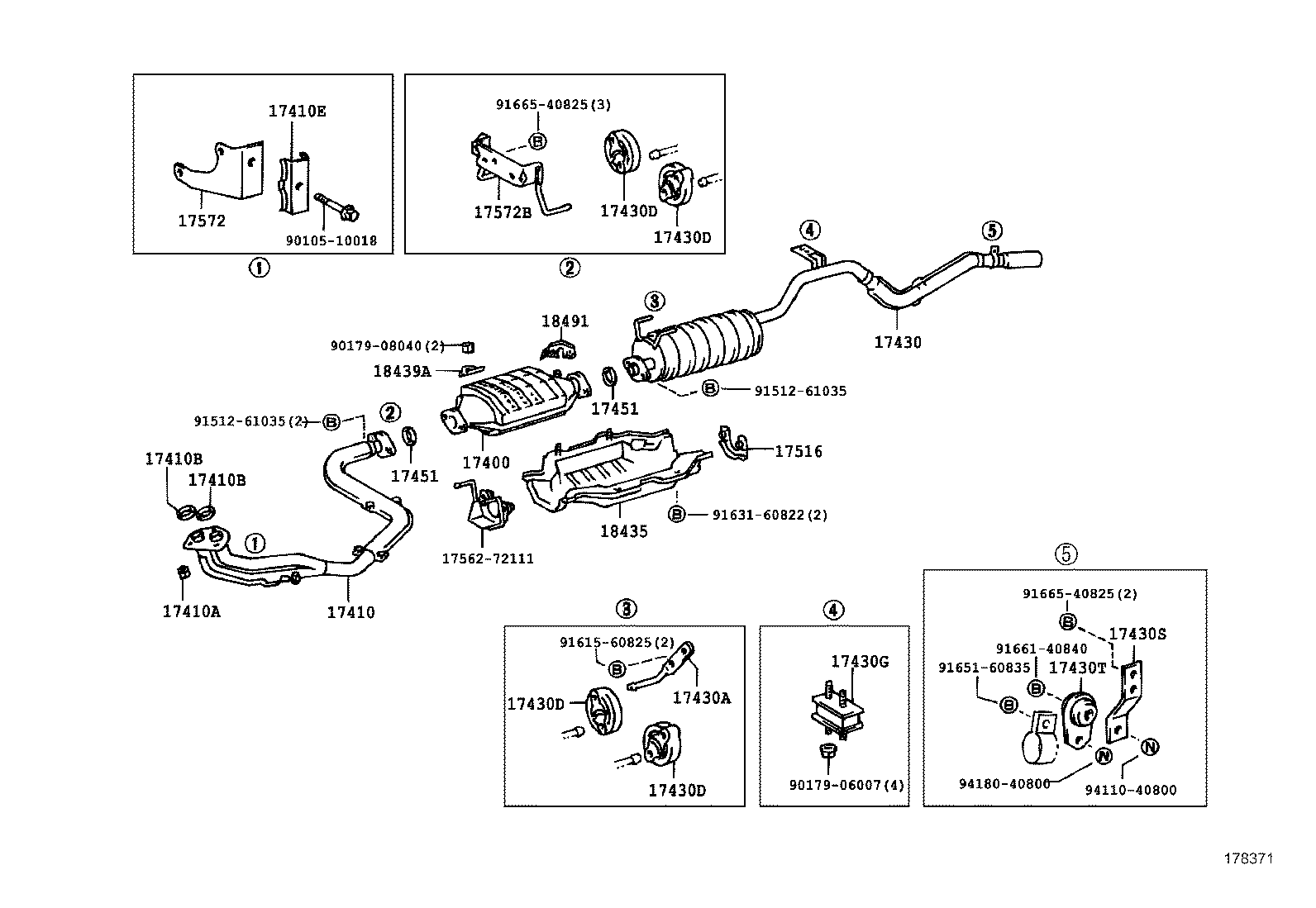

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410E 17430 17430A 17430D 17430D 17430D 17430D 17430G 17430S 17430T 17451 17451 17516 1756272111 17572 17572B 18435 18439A 18491 9010510018 9017906007 9017908040 9151261035 9151261035 9161560825 9163160822 9165160835 9166140840 9166540825 9166540825 9411040800 9418040800
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-15070

2Y..YH81

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-71111

2Y..YH81

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2L,2Y..LH8#,9#,YH81

 3
17410B - GASKET, EXHAUST PIPE
90917-06001

2Y..YH81

 2
90917-06038

2Y..YH81

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

2Y..YH81

 2
90917-06038

2Y..YH81

 2
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17589-27010

2Y..YH81

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-71252

2Y..YH81..ST

 1
17430-71251

2Y..YH81..ST

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17575-71050

2L,2Y..LH8#,9#,YH81

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2Y..YH81

 4
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2Y..YH81

 4
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2Y..YH81

 4
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-63030

2Y..YH81

 4
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-61010

2L,2Y..LH8#,9#,YH81

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-54040

2L,2Y..LH8#,9#,YH81

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
90917-08009

2L,2Y..LH8#,9#,YH81

 1
17451 - GASKET, EXHAUST PIPE
90917-06012

2Y..YH81

 2
90917-06045

2Y..YH81

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

2Y..YH81

 2
90917-06045

2Y..YH81

 2
17516 - RETAINER, EXHAUST PIPE, NO.2
18495-38020

2Y..YH81

 1
18495-71010

2Y..YH81

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-71040

2Y..YH81

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-72030

2Y..YH81

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-35010

2Y..YH81

 1
18439A - BRACKET, CONVERTER PROTECTOR, RH
18439-35010

2Y..YH81

 2
18491 - FLANGE, THERMOSENSOR INLET
18491-63010

2Y..YH81

 1
Common parts
17562-72111
90105-10018
90179-06007
90179-08040
91512-61035
91615-60825
91631-60822
91651-60835
91661-40840
91665-40825
94110-40800
94180-40800
