Toyota Hiace truck YH81 WIRING & CLAMP

YH81-MDLT3 (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995

Engine 2Y

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

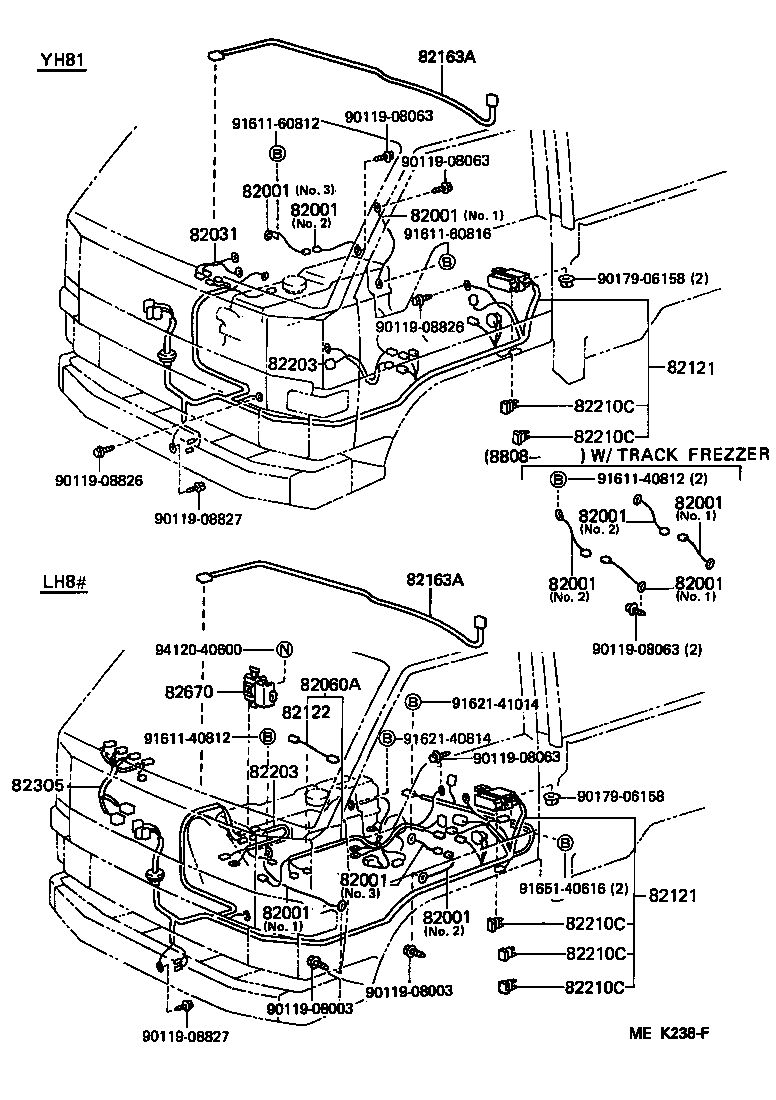

ILLUST NO. 1 OF 4(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07227	YH81 NO.3,L=300	08/1987 - 03/1989	1
90980-07228	YH81 NO.2,L=170	08/1987 - 03/1989	1
90980-07291	YH81 NO.2,L=170	03/1989 - 05/1995	1
90980-07317	YH81 NO.3,L=300	03/1989 - 05/1995	1
90980-07181	YH81 NO.1,L=460	08/1987 - 05/1995	1
82001 - CABLE, BOND, NO.1
90980-07227	YH81 NO.3,L=300	08/1987 - 03/1989	1
90980-07228	YH81 NO.2,L=170	08/1987 - 03/1989	1
90980-07291	YH81 NO.2,L=170	03/1989 - 05/1995	1
90980-07317	YH81 NO.3,L=300	03/1989 - 05/1995	1
90980-07181	YH81 NO.1,L=460	08/1987 - 05/1995	1
82001 - CABLE, BOND, NO.1
90980-07227	YH81 NO.3,L=300	08/1987 - 03/1989	1
90980-07228	YH81 NO.2,L=170	08/1987 - 03/1989	1
90980-07291	YH81 NO.2,L=170	03/1989 - 05/1995	1
90980-07317	YH81 NO.3,L=300	03/1989 - 05/1995	1
90980-07181	YH81 NO.1,L=460	08/1987 - 05/1995	1
82001 - CABLE, BOND, NO.1
90980-07227	YH81 NO.3,L=300	08/1987 - 03/1989	1
90980-07228	YH81 NO.2,L=170	08/1987 - 03/1989	1
90980-07291	YH81 NO.2,L=170	03/1989 - 05/1995	1
90980-07317	YH81 NO.3,L=300	03/1989 - 05/1995	1
90980-07181	YH81 NO.1,L=460	08/1987 - 05/1995	1
82001 - CABLE, BOND, NO.1
90980-07227	YH81 NO.3,L=300	08/1987 - 03/1989	1
90980-07228	YH81 NO.2,L=170	08/1987 - 03/1989	1
90980-07291	YH81 NO.2,L=170	03/1989 - 05/1995	1
90980-07317	YH81 NO.3,L=300	03/1989 - 05/1995	1
90980-07181	YH81 NO.1,L=460	08/1987 - 05/1995	1
82001 - CABLE, BOND, NO.1
90980-07227	YH81 NO.3,L=300	08/1987 - 03/1989	1
90980-07228	YH81 NO.2,L=170	08/1987 - 03/1989	1
90980-07291	YH81 NO.2,L=170	03/1989 - 05/1995	1
90980-07317	YH81 NO.3,L=300	03/1989 - 05/1995	1
90980-07181	YH81 NO.1,L=460	08/1987 - 05/1995	1
82001 - CABLE, BOND, NO.1
90980-07227	YH81 NO.3,L=300	08/1987 - 03/1989	1
90980-07228	YH81 NO.2,L=170	08/1987 - 03/1989	1
90980-07291	YH81 NO.2,L=170	03/1989 - 05/1995	1
90980-07317	YH81 NO.3,L=300	03/1989 - 05/1995	1
90980-07181	YH81 NO.1,L=460	08/1987 - 05/1995	1
82001 - CABLE, BOND, NO.1
90980-07227	YH81 NO.3,L=300	08/1987 - 03/1989	1
90980-07228	YH81 NO.2,L=170	08/1987 - 03/1989	1
90980-07291	YH81 NO.2,L=170	03/1989 - 05/1995	1
90980-07317	YH81 NO.3,L=300	03/1989 - 05/1995	1
90980-07181	YH81 NO.1,L=460	08/1987 - 05/1995	1
82001 - CABLE, BOND, NO.1
90980-07227	YH81 NO.3,L=300	08/1987 - 03/1989	1
90980-07228	YH81 NO.2,L=170	08/1987 - 03/1989	1
90980-07291	YH81 NO.2,L=170	03/1989 - 05/1995	1
90980-07317	YH81 NO.3,L=300	03/1989 - 05/1995	1
90980-07181	YH81 NO.1,L=460	08/1987 - 05/1995	1
82001 - CABLE, BOND, NO.1
90980-07227	YH81 NO.3,L=300	08/1987 - 03/1989	1
90980-07228	YH81 NO.2,L=170	08/1987 - 03/1989	1
90980-07291	YH81 NO.2,L=170	03/1989 - 05/1995	1
90980-07317	YH81 NO.3,L=300	03/1989 - 05/1995	1
90980-07181	YH81 NO.1,L=460	08/1987 - 05/1995	1
82031 - WIRE SUB-ASSY, IGNITION COIL
82031-95010	YH81	08/1987 - 09/1991	1
82121 - WIRE, ENGINE
82121-95A30	YH81	08/1987 - 10/1989	1
82121-95A57	YH81	10/1989 - 09/1993	1
82121-26280	YH81	09/1993 - 05/1995	1
82121 - WIRE, ENGINE
82121-95A30	YH81	08/1987 - 10/1989	1
82121-95A57	YH81	10/1989 - 09/1993	1
82121-26280	YH81	09/1993 - 05/1995	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-95A06	YH81	10/1989 - 09/1993	1
82203-95015	YH81	08/1987 - 10/1989	1
82203-26050	YH81	09/1993 - 05/1995	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-95A06	YH81	10/1989 - 09/1993	1
82203-95015	YH81	08/1987 - 10/1989	1
82203-26050	YH81	09/1993 - 05/1995	1
82210C - FUSIBLE LINK
90982-08202	YH81 60A,ｵｽ端子,黄	08/1987 - 09/1991	1
90982-08202	LH80,90,YH81..5F 60A,ｵｽ端子,黄	09/1991 - 05/1995	1
90982-08189	LH8#,9#,YH81 40A,ﾒｽ端子,緑	08/1987 - 05/1995	1
82210C - FUSIBLE LINK
90982-08202	YH81 60A,ｵｽ端子,黄	08/1987 - 09/1991	1
90982-08202	LH80,90,YH81..5F 60A,ｵｽ端子,黄	09/1991 - 05/1995	1
90982-08189	LH8#,9#,YH81 40A,ﾒｽ端子,緑	08/1987 - 05/1995	1
82210C - FUSIBLE LINK
90982-08202	YH81 60A,ｵｽ端子,黄	08/1987 - 09/1991	1
90982-08202	LH80,90,YH81..5F 60A,ｵｽ端子,黄	09/1991 - 05/1995	1
90982-08189	LH8#,9#,YH81 40A,ﾒｽ端子,緑	08/1987 - 05/1995	1
82210C - FUSIBLE LINK
90982-08202	YH81 60A,ｵｽ端子,黄	08/1987 - 09/1991	1
90982-08202	LH80,90,YH81..5F 60A,ｵｽ端子,黄	09/1991 - 05/1995	1
90982-08189	LH8#,9#,YH81 40A,ﾒｽ端子,緑	08/1987 - 05/1995	1
82210C - FUSIBLE LINK
90982-08202	YH81 60A,ｵｽ端子,黄	08/1987 - 09/1991	1
90982-08202	LH80,90,YH81..5F 60A,ｵｽ端子,黄	09/1991 - 05/1995	1
90982-08189	LH8#,9#,YH81 40A,ﾒｽ端子,緑	08/1987 - 05/1995	1
Common parts
90119-08003
90119-08063
90119-08826
90119-08827
90179-06158
91611-40812
91611-60812
91611-60816
91621-40814
91621-41014
91651-40616
94120-40600

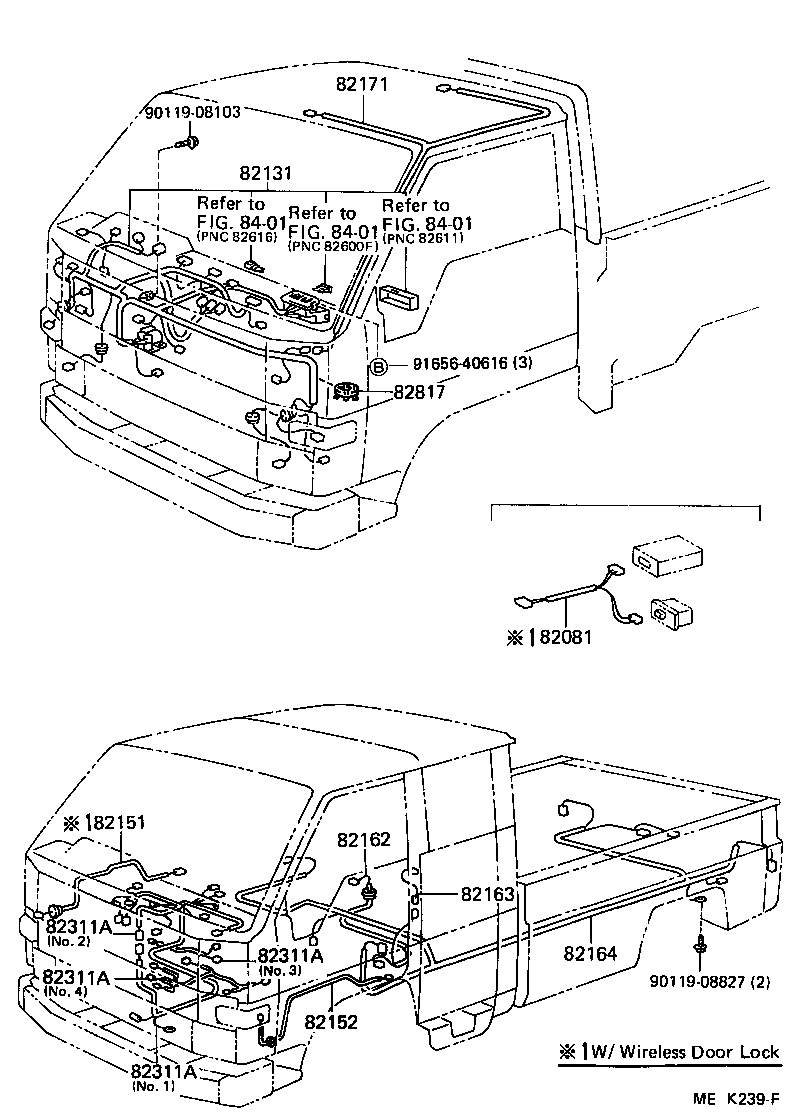

ILLUST NO. 2 OF 4(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82081 - WIRING ASSY, DOOR LOCK
82081-37020	LH8#,9#,YH81	09/1993 - 05/1995	1
82131 - WIRE, COWL
82131-95A59	YH81	08/1987 - 08/1988	1
82131-95A81	YH81	08/1988 - 10/1989	1
82131-95K15	YH81	10/1989 - 08/1990	1
82131-26010	YH81	08/1990 - 09/1991	1
82131-26011	YH81	09/1991 - 09/1993	1
82131-26290	YH81..T2,T3;YH81..ST..IV ｶｽﾀﾑｼﾖｳ	09/1991 - 09/1993	1
82131-26012	YH81	09/1993 - 05/1995	1
82131-26291	YH81 ｱﾘ(*PW)	09/1993 - 05/1995	1
82151 - WIRE, FRONT DOOR, RH
82151-37030	LH80,90;YH81..ST..IV;LH85,95,YH81..T2,T3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1991 - 12/1991	1
82151-25040	LH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV ｶｽﾀﾑｼﾖｳ & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1991 - 12/1991	1
82151-37031	LH80,90;YH81..ST..IV;LH85,95,YH81..T2,T3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	12/1991 - 09/1993	1
82151-25041	LH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV ｶｽﾀﾑｼﾖｳ & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	12/1991 - 09/1993	1
82151-37011	LH8#,9#,YH81 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	09/1993 - 05/1995	1
82151-37031	LH8#,9#,YH81 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1993 - 05/1995	1
82151-25060	LH8#,9#,YH81 ｱﾘ(*PW) & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1993 - 05/1995	1
82151-25042	LH8#,9#,YH81 ｱﾘ(*PW) & ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	09/1993 - 05/1995	1
82151-25050	LH8#,9#,YH81 ｱﾘ(*PW)	09/1993 - 05/1995	1
82152 - WIRE, FRONT DOOR, LH
82152-25020	LH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV ｶｽﾀﾑｼﾖｳ	09/1991 - 09/1993	1
82152-25021	LH8#,9#,YH81 ｱﾘ(*PW) & ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	09/1993 - 05/1995	1
82152-25040	LH8#,9#,YH81 ｱﾘ(*PW & ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1993 - 05/1995	1
82152-25030	LH8#,9#,YH81 ｱﾘ(*PW)	09/1993 - 05/1995	1
82152-37040	LH80,90;YH81..ST..IV;LH85,95,YH81..T2,T3 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1991 - 09/1993	1
82152-37040	LH8#,9#,YH81 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	09/1993 - 05/1995	1
82152-37010	LH8#,9#,YH81 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱｷ-)	09/1993 - 05/1995	1
82152-37010	LH8#,YH81	08/1990 - 04/1991	1
82164 - WIRE, FRAME
82164-95A24	YH81..T1,T3,TW	08/1987 - 08/1988	1
82164-95A44	YH81..T1,T3,TW	08/1988 - 08/1990	1
82164-95A25	YH81..WT	08/1987 - 08/1988	1
82164-26070	YH81..T1,T3,TW	08/1990 - 09/1993	1
82164-26090	YH81..WT	08/1990 - 09/1993	1
82164-95A46	YH81..WT	08/1988 - 08/1990	1
82164-26071	YH81..T1,T3,TW	09/1993 - 05/1995	1
82164-26091	YH81..WT	09/1993 - 05/1995	1
82171 - WIRE, ROOF, NO.1
82171-95400	LH8#,9#,YH81..T1,T2,T3	08/1987 - 09/1993	1
82171-37080	LH8#,9#,YH81..T1,T2,T3	09/1993 - 05/1995	1
82311A - WIRE, AIR CONDITIONER
88648-95409	YH81 NO.2	08/1987 - 05/1995	1
88648-95A19	YH81 NO.1	08/1987 - 05/1995	1
82311A - WIRE, AIR CONDITIONER
88648-95409	YH81 NO.2	08/1987 - 05/1995	1
88648-95A19	YH81 NO.1	08/1987 - 05/1995	1
82311A - WIRE, AIR CONDITIONER
88648-95409	YH81 NO.2	08/1987 - 05/1995	1
88648-95A19	YH81 NO.1	08/1987 - 05/1995	1
82311A - WIRE, AIR CONDITIONER
88648-95409	YH81 NO.2	08/1987 - 05/1995	1
88648-95A19	YH81 NO.1	08/1987 - 05/1995	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14350	LH8#,9#,YH81	08/1987 - 05/1995	2
Common parts
90119-08103
90119-08827
91656-40616
Linked diagrams
8401

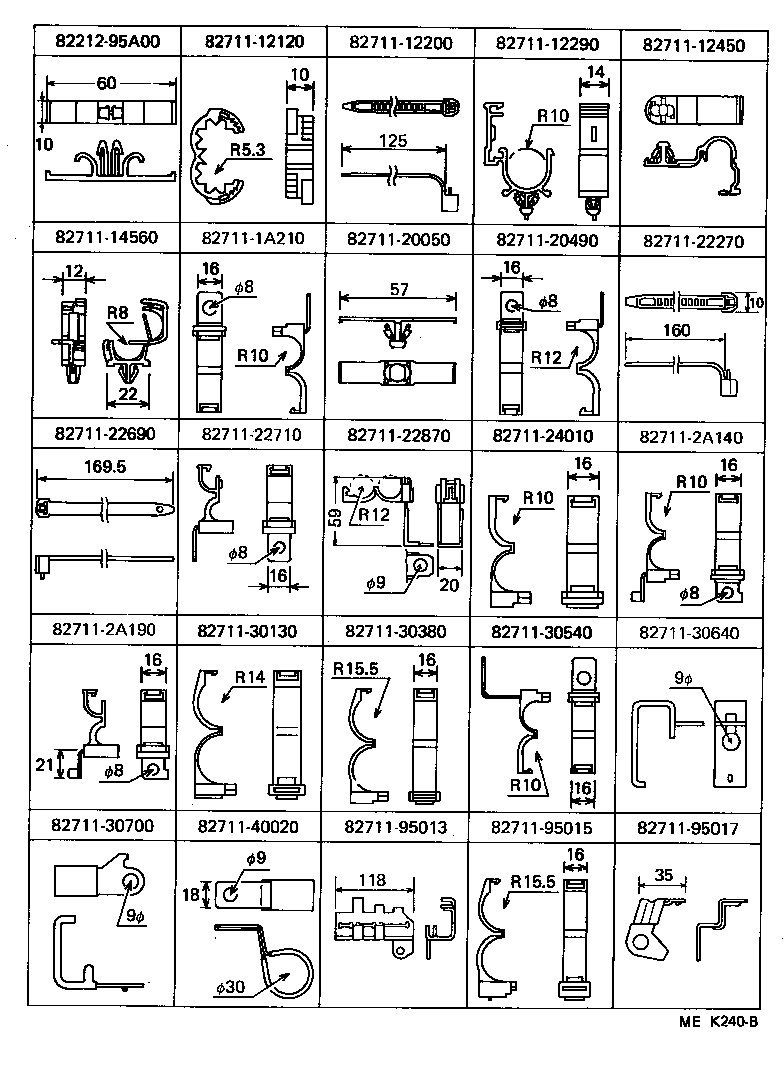

ILLUST NO. 3 OF 4(8708- )

Click highlighted areas on diagram

CLAMP

Part #	Description	Period	Qty	Price
Common parts
82212-95A00
82711-12120
82711-12200
82711-12290
82711-12450
82711-14560
82711-1A210
82711-20050
82711-20490
82711-22270
82711-22690
82711-22710
82711-22870
82711-24010
82711-2A140
82711-2A190
82711-30130
82711-30380
82711-30540
82711-30640
82711-30700
82711-40020
82711-95013
82711-95015
82711-95017

ILLUST NO. 3 OF 4(8708- )

Click highlighted areas on diagram

CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-95021
82711-95022
82711-95023
82711-95024
82711-95404
82711-95410
82711-95411
82711-95413
82711-95711
82711-95A06
82711-95A07
82711-95A08
82711-95A09
90461-04009
90461-08200
90461-08202
90461-08574
90461-10275
90461-10294
90461-12146
90463-10012
90463-10032
90463-15002
90463-15003

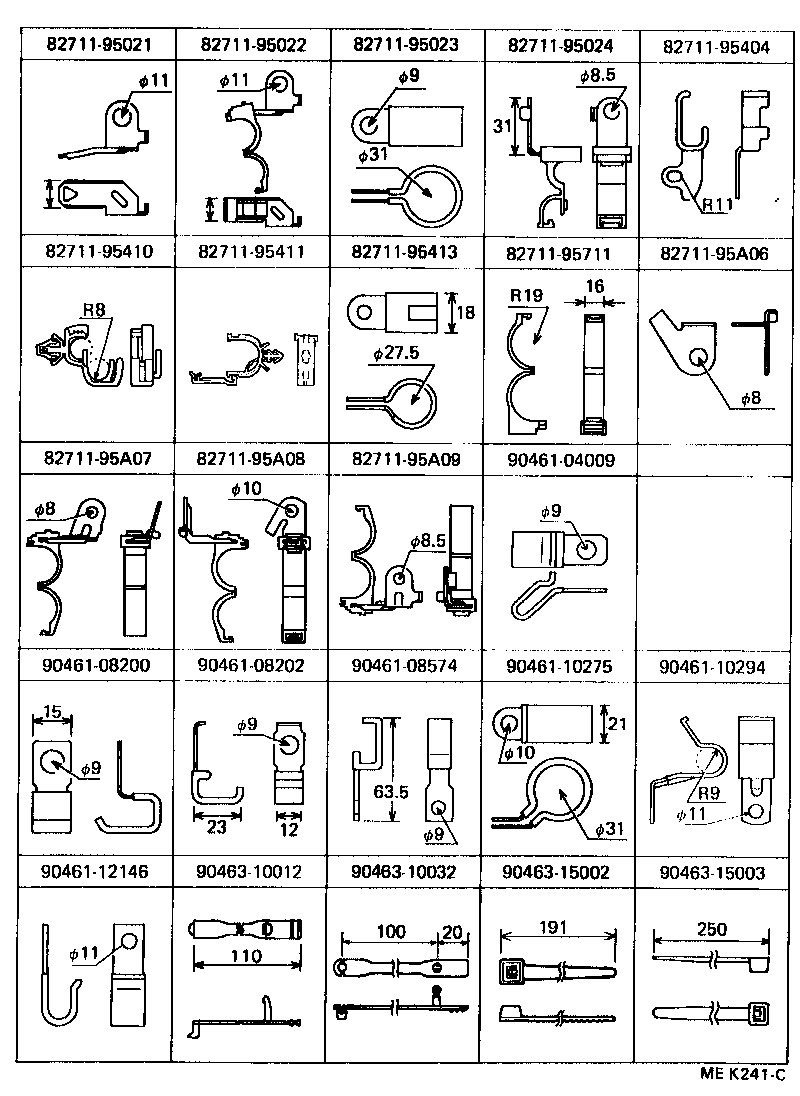

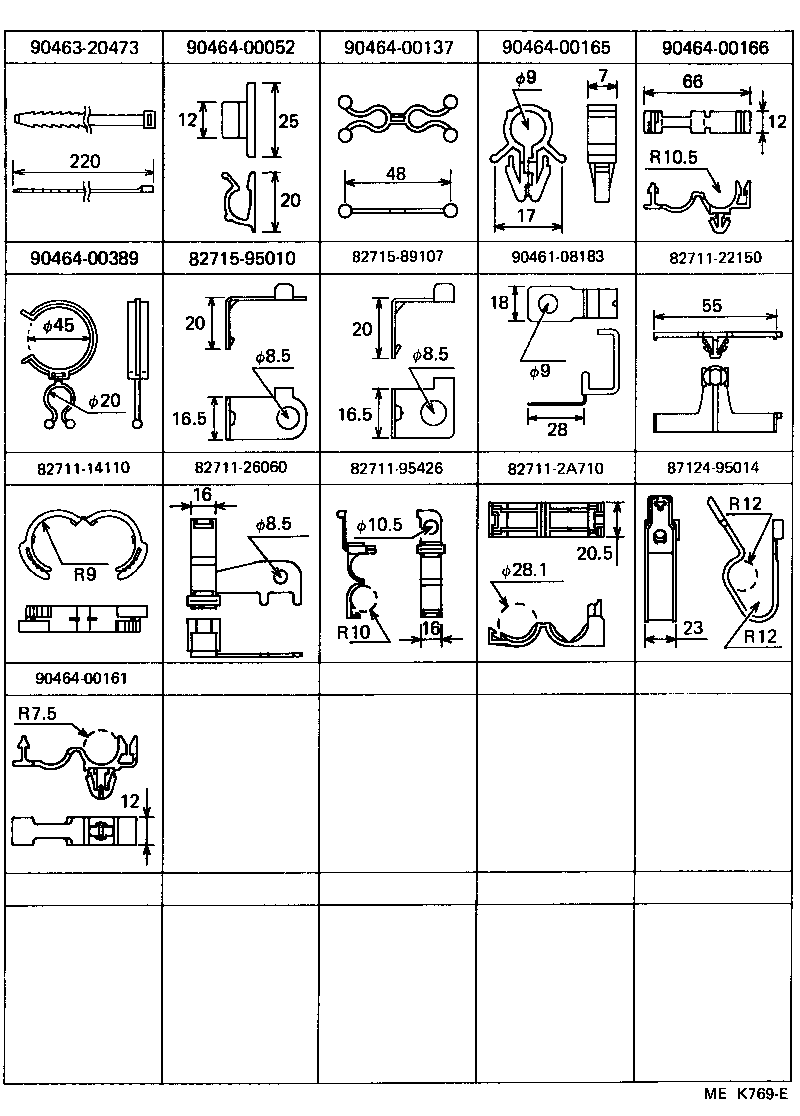

ILLUST NO. 3 OF 4(8708- )

Click highlighted areas on diagram

CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-14110
82711-22150
82711-26060
82711-2A710
82711-95426
82715-89107
82715-95010
87124-95014
90461-08183
90463-20473
90464-00052
90464-00137
90464-00161
90464-00165
90464-00166
90464-00389

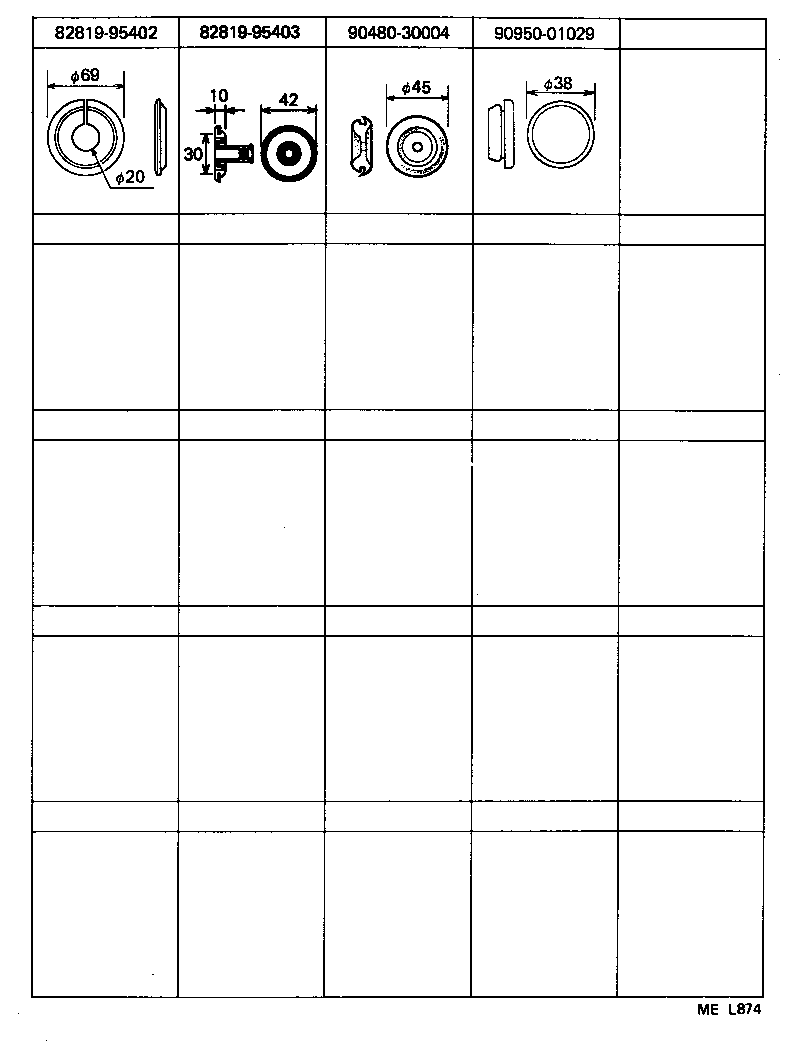

ILLUST NO. 4 OF 4(8708- )

Click highlighted areas on diagram

GROMET

Part #	Description	Period	Qty	Price
Common parts
82819-95402
82819-95403
90480-30004
90950-01029
