YH81-MDLT3 (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )YH81

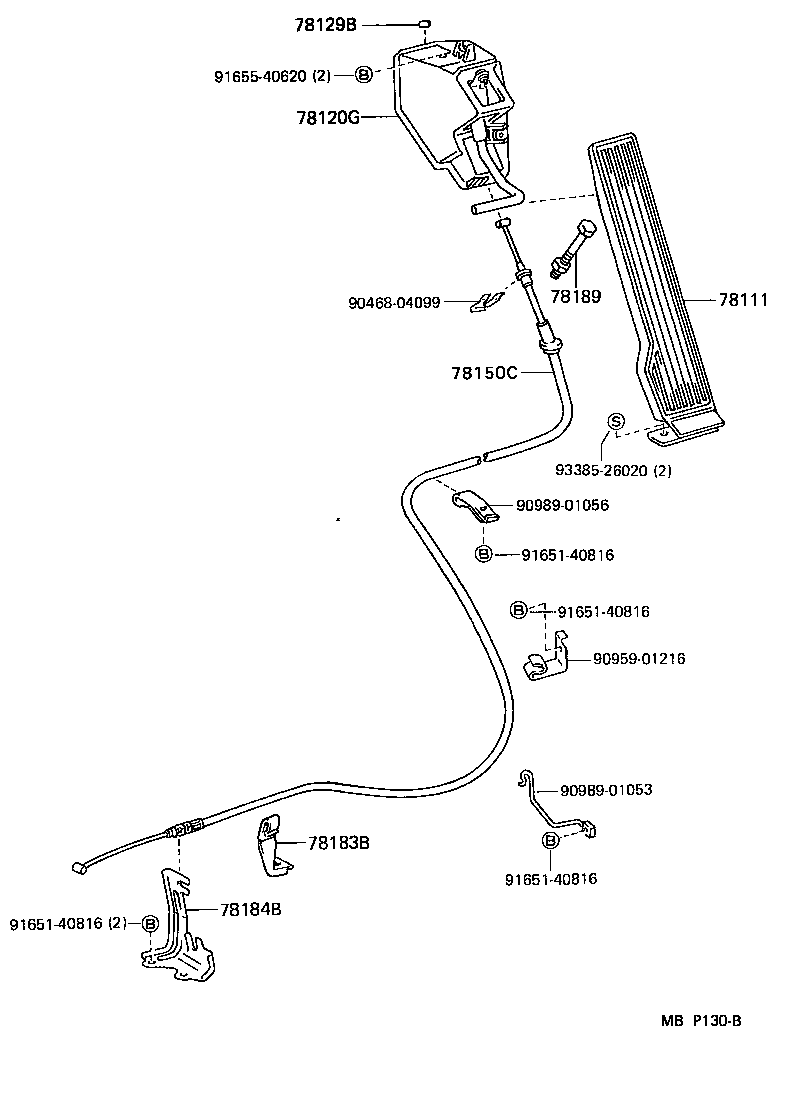

Click highlighted areas on diagram

diagram 78111 78120G 78129B 78150C 78183B 78184B 78189 9046804099 9095901216 9098901053 9098901056 9165140816 9165140816 9165140816 9165140816 9165540620 9338526020
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78110-95410

LH8#,9#,YH81

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95010

LH8#,9#,YH81

 1
78129B - SEAL, ACCELERATOR PEDAL ARM
78129-95J00

YH81

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-25020

YH81

 1
78150-95055

YH81

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95A10

YH81

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95010

YH81

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95404

LH8#,9#,YH81

 1
Common parts
90468-04099
90959-01216
90989-01053
90989-01056
91651-40816
91655-40620
93385-26020
