YH81-MDL (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )

Click highlighted areas on diagram

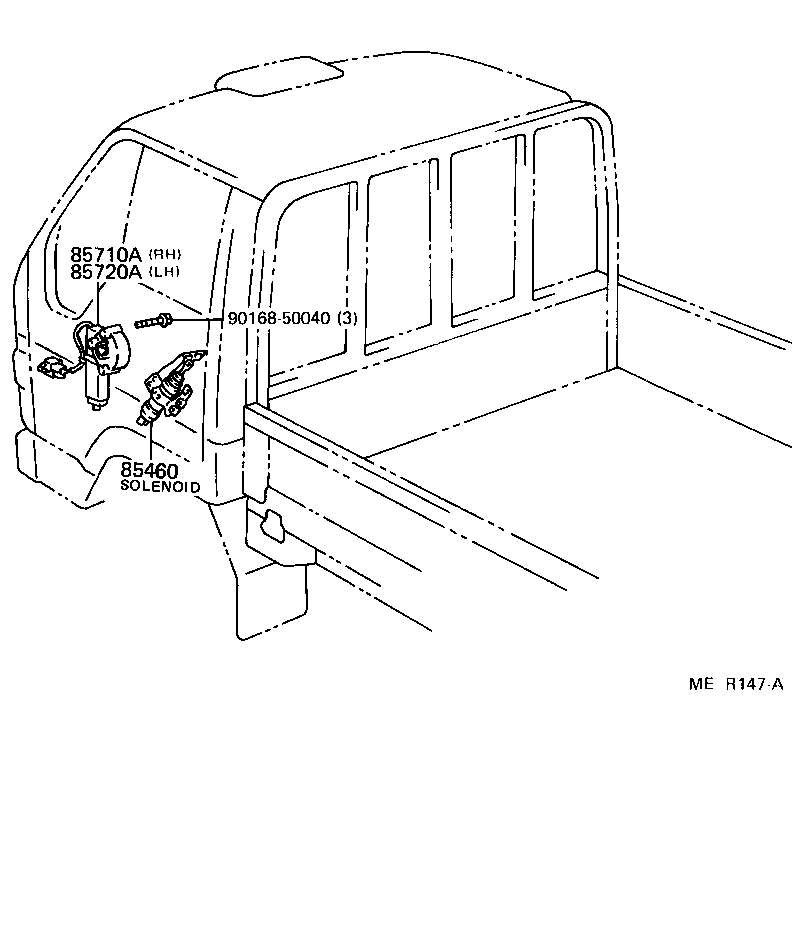

diagram 85460 85710A 85720A 9016850040
Part # Description Qty Price
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85460-37020

LH8#,9#,YH81..T1,T2,T3

 1
85460-37020

YH81..ST..IV;LH85,95,YH81..T2,T3

 1
85460-37020

LH8#,YH81

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85720-10030

LH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV

 1
85720-10030

LH85..T3..IV;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH9#,YH81..T1,T2,T3;LH80..5F..(T1,T2,T3)

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85710-10030

LH85..T3..IV;LH80..4FC..WT;LH85..(T2,T3)..CBU;LH9#,YH81..T1,T2,T3;LH80..5F..(T1,T2,T3)

 1
85710-10030

LH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV

 1
Common parts
90168-50040
