YH81-MDL (1987)
Toyota Hiace Truck
Production
Aug 1987
-
May 1995
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708-9109)

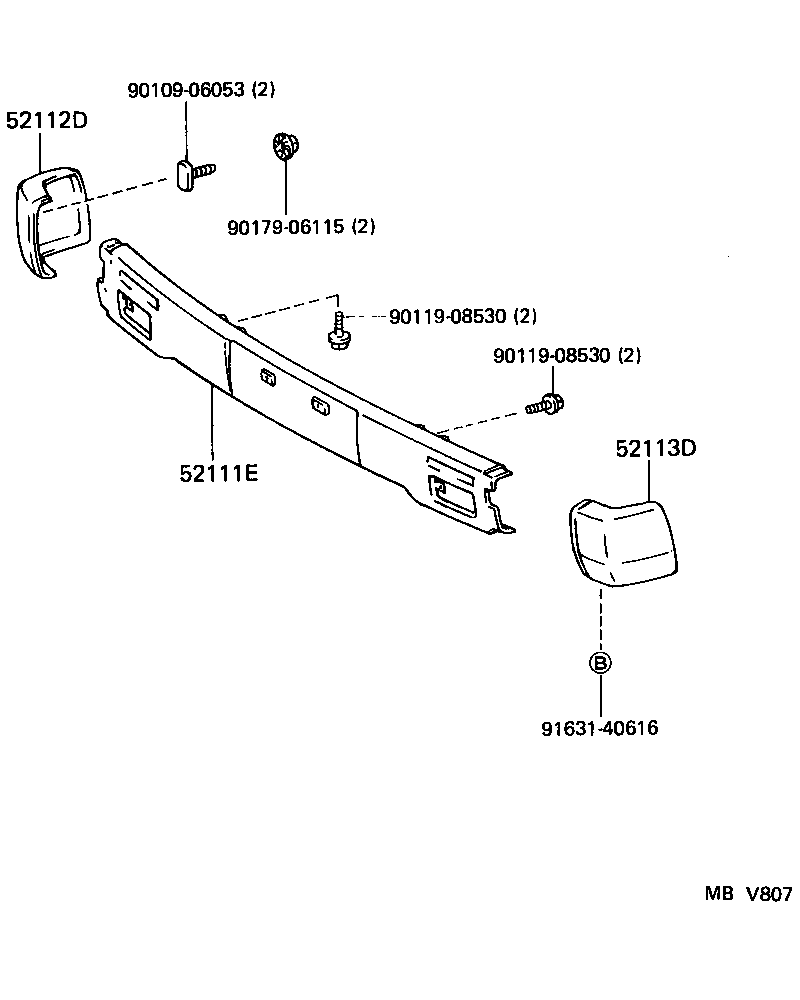

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52101-95A3103 |
LH80,YH81 GRAY M,048 |
1 | ||
| 52101-26030A0 |
LH80,90,YH81 WHITE,TRIM1#&048 |
1 | ||
| 52101-95A2603 |
LH80,YH81 GRAY M,048 |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-26020A0 |
LH8#,9#,YH81 WHITE,048 |
1 | ||
| 52112-95A00 |
LH8#,YH81 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-26020A0 |
LH8#,9#,YH81 WHITE,048 |
1 | ||
| 52113-95A03 |
LH8#,YH81 |
1 | ||
| Common parts | ||||
| 90109-06053 | ||||
| 90109-06078 | ||||
| 90119-08530 | ||||
| 90179-06115 | ||||
| 94611-10800 | ||||
(9109- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52111E - BAR, FRONT BUMPER | ||||
| 52101-95A3103 |
LH80,YH81 GRAY M,048 |
1 | ||
| 52101-26030A0 |
LH80,90,YH81 WHITE,TRIM1#&048 |
1 | ||
| 52101-95A2603 |
LH80,YH81 GRAY M,048 |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-26020A0 |
LH8#,9#,YH81 WHITE,048 |
1 | ||
| 52112-95A00 |
LH8#,YH81 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-26020A0 |
LH8#,9#,YH81 WHITE,048 |
1 | ||
| 52113-95A03 |
LH8#,YH81 |
1 | ||
| Common parts | ||||
| 90109-06053 | ||||
| 90119-08530 | ||||
| 90179-06115 | ||||
| 91631-40616 | ||||
