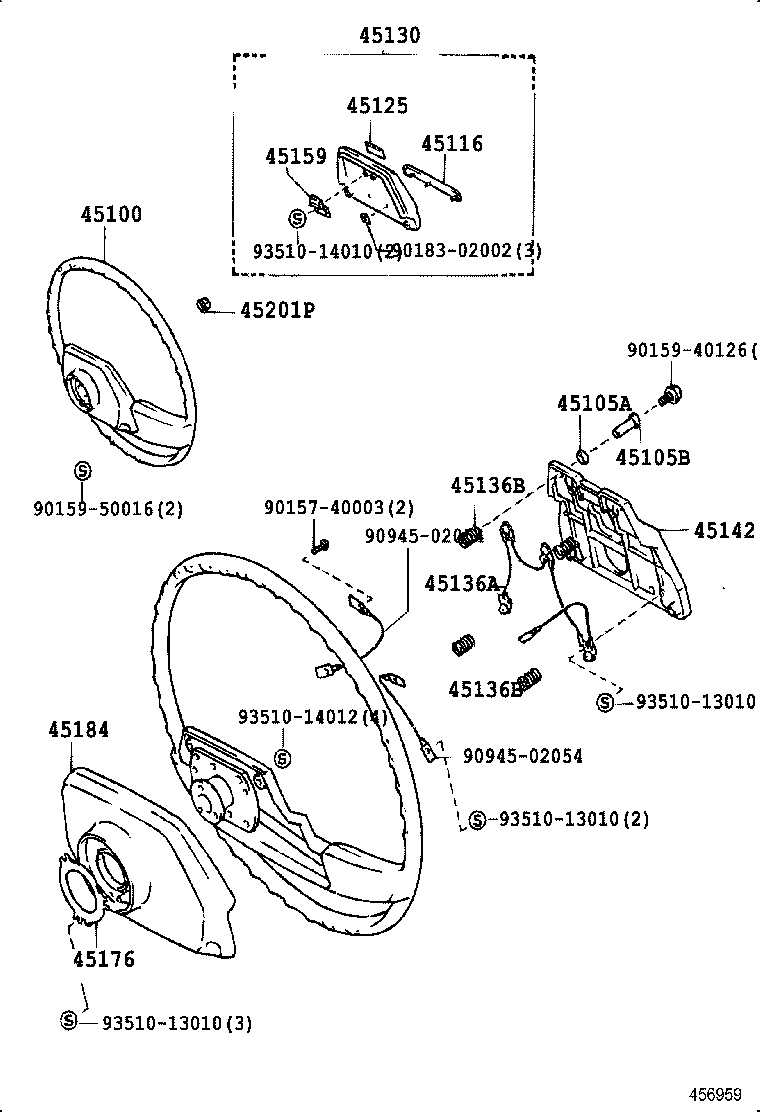

YH81-MDL (1987)
Toyota Hiace Truck
(8710- )
ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) & URETHANE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2609024 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｶｽﾀﾑ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 45100-2612104 |
LH8#,YH81 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-60130B0 |
LH80,90,YH81 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-22151B0 |
LH80,90,YH81 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90540-08006 |
LH8#,9#,YH81 |
4 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04010 |
LH80,90,YH81 |
4 | ||
| 90561-04007 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90561-04006 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ |
4 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-22040 |
LH8#,9#,YH81 |
1 | ||
| 45125 - MARK, STEERING WHEEL PAD | ||||
| 45125-2606004 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2607014 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 45130-26230B0 |
LH80,90,YH81 GRAY,TRIM1# |
1 | ||
| 45130-26070 |
LH80..TB..ST;LH80,YH81..T1..IV;LH80,YH81..TS..(T2,T3) ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 45130-26120B0 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 45130-2611004 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 45136A - CORD(FOR HORN CONTACT RING) | ||||
| 90945-03036 |
LH8#,9#,YH81 |
1 | ||
| 45136B - SPRING, COMPRESSION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90501-12099 |
LH80,90,YH81 |
4 | ||
| 90501-09027 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 45136B - SPRING, COMPRESSION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90501-12099 |
LH80,90,YH81 |
4 | ||
| 90501-09027 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 45142 - SEAT, HORN BUTTON CONTACT, NO.1 | ||||
| 45142-12050 |
LH80,90,YH81 |
4 | ||
| 45142-30050 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45159 - RETAINER, STEERING WHEEL PAD SET | ||||
| 45159-30010 |
LH8#,9#,YH81 |
1 | ||
| 45176 - RING, HORN CONTACT | ||||
| 45176-20030 |
YH81..T2,T3 ｱﾘ(ｳﾚﾀﾝ ﾎｲｰﾙ) |
1 | ||
| 45176-30070 |
LH8#,YH81 |
1 | ||
| 45176-14050 |
LH8#,9#,YH81 |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-2604001 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ,BLACK,TRIM8# |
1 | ||
| 45184-26040 |
LH80..TB..ST;LH80,YH81..T1..IV;LH80,YH81..TS..(T2,T3) ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 45184-22081B0 |
LH80..TB..ST;LH80,YH81..T1..IV;LH80,YH81..TS..(T2,T3) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LH8#,9#,YH81 |
1 | ||
| 90179-12086 |
LH8#,9#,YH81 |
1 | ||
| Common parts | ||||
| 90157-40003 | ||||
| 90159-40126 | ||||
| 90159-50016 | ||||
| 90183-02002 | ||||
| 90945-02054 | ||||
| 93510-13010 | ||||
| 93510-14010 | ||||
| 93510-14012 | ||||
(8708-9109)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2609024 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｶｽﾀﾑ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 45100-2612104 |
LH8#,YH81 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-60130B0 |
LH80,90,YH81 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-22151B0 |
LH80,90,YH81 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 45125 - MARK, STEERING WHEEL PAD | ||||
| 45125-2606004 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2607014 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 45130-26230B0 |
LH80,90,YH81 GRAY,TRIM1# |
1 | ||
| 45130-26070 |
LH80..TB..ST;LH80,YH81..T1..IV;LH80,YH81..TS..(T2,T3) ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 45130-26120B0 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 45130-2611004 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-26050 |
LH8#,YH81 |
2 | ||
| 45136 - PLATE, HORN BUTTON CONTACT | ||||
| 45136-26020 |
LH8#,YH81 |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-26030 |
LH8#,YH81 |
2 | ||
| 45176 - RING, HORN CONTACT | ||||
| 45176-20030 |
YH81..T2,T3 ｱﾘ(ｳﾚﾀﾝ ﾎｲｰﾙ) |
1 | ||
| 45176-30070 |
LH8#,YH81 |
1 | ||
| 45176-14050 |
LH8#,9#,YH81 |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LH8#,9#,YH81 |
1 | ||
| 90179-12086 |
LH8#,9#,YH81 |
1 | ||
| Common parts | ||||
| 93510-13010 | ||||
| 93510-15014 | ||||
| 93540-45020 | ||||
(8708-9109)T1..IV ; (8708-9109)LH80,YH81..T2,T3
URETHANE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2609024 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｶｽﾀﾑ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 45100-2612104 |
LH8#,YH81 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-60130B0 |
LH80,90,YH81 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-22151B0 |
LH80,90,YH81 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-60040 |
LH80,90,YH81 |
1 | ||
| 45105-26020 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04010 |
LH80,90,YH81 |
4 | ||
| 90561-04007 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90561-04006 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ |
4 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2607014 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 45130-26230B0 |
LH80,90,YH81 GRAY,TRIM1# |
1 | ||
| 45130-26070 |
LH80..TB..ST;LH80,YH81..T1..IV;LH80,YH81..TS..(T2,T3) ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 45130-26120B0 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 45130-2611004 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 45155A - SPACER, HORN CONTACT | ||||
| 45155-26010 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ |
4 | ||
| 45155-12030 |
LH80,90,YH81 |
4 | ||
| 45156A - SEAT, HORN CONTACT SPRING SET | ||||
| 45156-26020 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ |
4 | ||
| 45156B - SPRING(FOR HORN CONTACT SPRING SET SEAT) | ||||
| 90501-10104 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ |
4 | ||
| 45176 - RING, HORN CONTACT | ||||
| 45176-20030 |
YH81..T2,T3 ｱﾘ(ｳﾚﾀﾝ ﾎｲｰﾙ) |
1 | ||
| 45176-30070 |
LH8#,YH81 |
1 | ||
| 45176-14050 |
LH8#,9#,YH81 |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-2604001 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ,BLACK,TRIM8# |
1 | ||
| 45184-26040 |
LH80..TB..ST;LH80,YH81..T1..IV;LH80,YH81..TS..(T2,T3) ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 45184-22081B0 |
LH80..TB..ST;LH80,YH81..T1..IV;LH80,YH81..TS..(T2,T3) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LH8#,9#,YH81 |
1 | ||
| 90179-12086 |
LH8#,9#,YH81 |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||
| 93315-14025 | ||||
| 93510-13010 | ||||
(9109- )LH80,90,YH81
URETHANE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2609024 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｶｽﾀﾑ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 45100-2612104 |
LH8#,YH81 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8# |
1 | ||
| 45100-60130B0 |
LH80,90,YH81 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GRAY,TRIM1# |
1 | ||
| 45100-22151B0 |
LH80,90,YH81 2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-60040 |
LH80,90,YH81 |
1 | ||
| 45105-26020 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04010 |
LH80,90,YH81 |
4 | ||
| 90561-04007 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90561-04006 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ |
4 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2607014 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 45130-26230B0 |
LH80,90,YH81 GRAY,TRIM1# |
1 | ||
| 45130-26070 |
LH80..TB..ST;LH80,YH81..T1..IV;LH80,YH81..TS..(T2,T3) ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 45130-26120B0 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 45130-2611004 |
LH8#,YH81 BLUE,TRIM8# |
1 | ||
| 45136B - SPRING, COMPRESSION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90501-12099 |
LH80,90,YH81 |
4 | ||
| 90501-09027 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 45142 - SEAT, HORN BUTTON CONTACT, NO.1 | ||||
| 45142-12050 |
LH80,90,YH81 |
4 | ||
| 45142-30050 |
LH80,90,YH81 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45155A - SPACER, HORN CONTACT | ||||
| 45155-26010 |
LH80,YH81..T2,T3;LH80,YH81..T1..IV ｶｽﾀﾑ ｼﾖｳ |
4 | ||
| 45155-12030 |
LH80,90,YH81 |
4 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-60011 |
LH80,90,YH81 |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
LH8#,9#,YH81 |
1 | ||
| 90179-12086 |
LH8#,9#,YH81 |
1 | ||
| Common parts | ||||
| 93315-14016 | ||||
| 93319-14010 | ||||
| 93510-13008 | ||||
