YH81-MDB (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

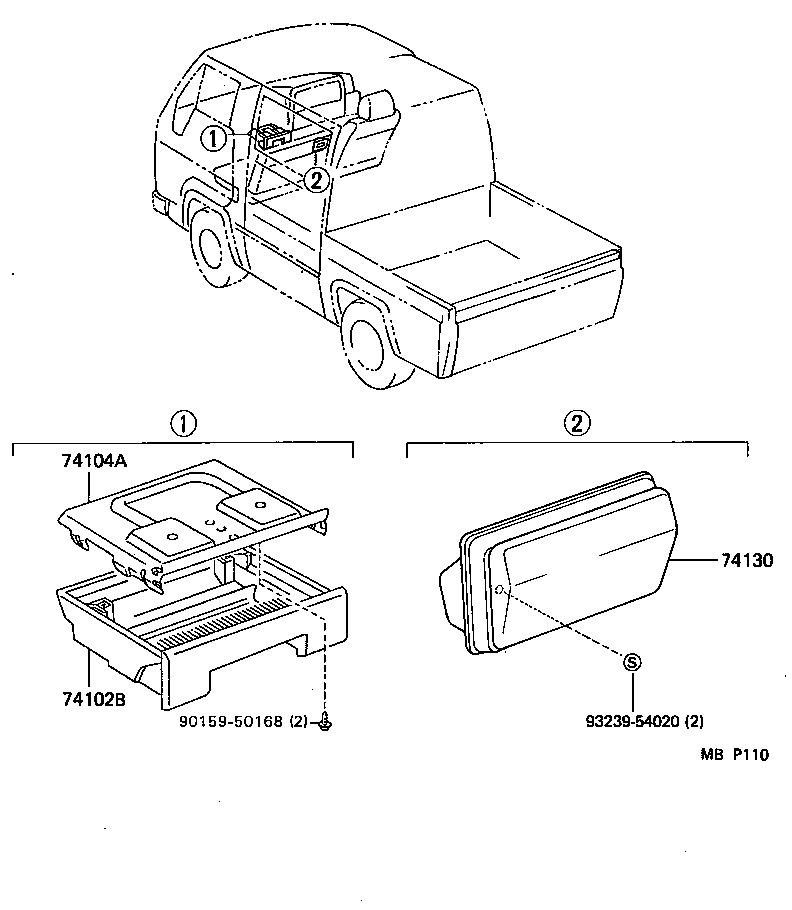

Click highlighted areas on diagram

diagram 74102B 74104A 74130 9015950168 9323954020
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-95409B0

LH8#,9#,YH81

GRAY,TRIM1#

 1
74102-9540904

LH8#,YH81

BLUE,TRIM8#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-95406

LH80..TS;LH85,YH81;LH80..TB..ST

 1
Common parts
90159-50168
93239-54020
