YH81-MDB (1987)
Toyota Hiace Truck

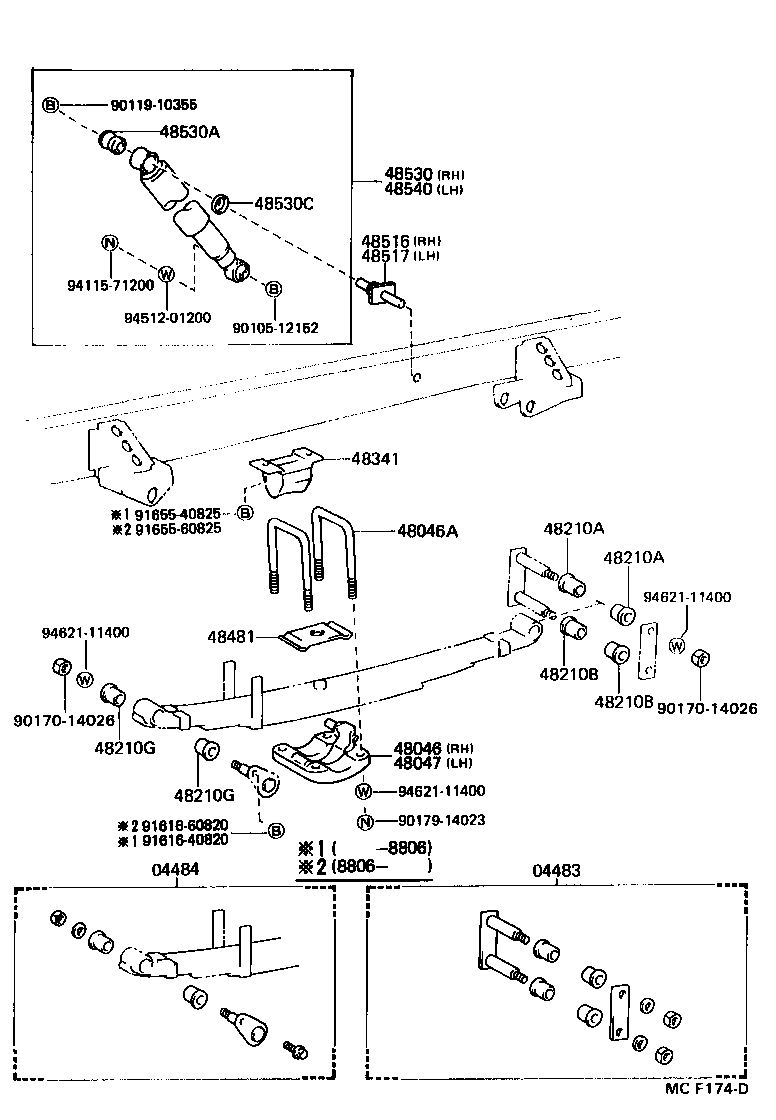

ILLUST NO. 1 OF 2(8708- )LH80,90,YH81..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26010 |
LH8#,9#,YH81..ST |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-26030 |
LH8#,9#,YH81..ST |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-26080 |
LH8#,9#,YH81..ST |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14044 |
LH80,90,YH81..ST 長さ=165 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-26080 |
LH8#,9#,YH81..ST |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LH8#,9#,YH81..ST |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LH8#,9#,YH81..ST |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LH8#,9#,YH81 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LH8#,9#,YH81 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LH8#,9#,YH81 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LH8#,9#,YH81 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26040 |
LH80,90,YH81..T1,T3,TW |
2 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-26011 |
LH90..TW;LH80,YH81..ST |
2 | ||
| 48481-26010 |
LH80,YH81..ST |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-26010 |
LH8#,9#,YH81 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-26010 |
LH8#,9#,YH81 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80095 |
LH80,90,YH81..T1,T3,TW |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LH8#,9#,YH81..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LH8#,9#,YH81..ST |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80095 |
LH80,90,YH81..T1,T3,TW |
1 | ||
| Common parts | ||||
| 90105-12152 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 91616-40820 | ||||
| 91616-60820 | ||||
| 91655-40825 | ||||
| 91655-60825 | ||||
| 94115-71200 | ||||
| 94512-01200 | ||||
| 94621-11400 | ||||

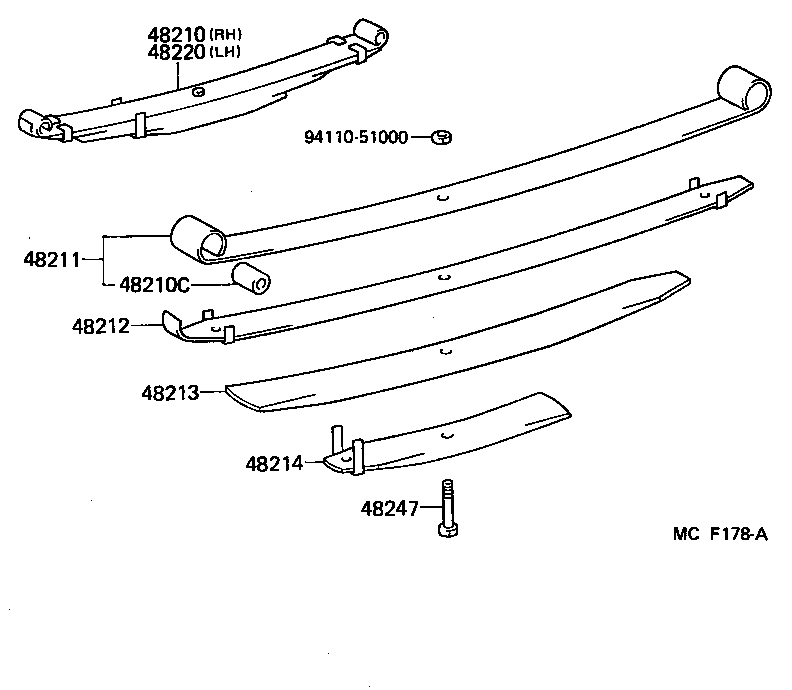

ILLUST NO. 2 OF 2(8708-8910)LH80,YH81 ; (8910- )WT ; (8910-)LH80,90,YH81..T1,T3,TW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26390 |
LH80,YH81..WT;LH80,YH81..T1,T3,TW # |
1 | ||
| 48210-26392 |
LH80,90,YH81..T1,T3,TW # |
1 | ||
| 48210-26391 |
LH80,YH81..WT;LH80,YH81..T1,T3,TW # |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LH8#,9#,YH81 |
2 | ||
| 48299-26540 |
LH85;LH80,YH81..WT;LH80,YH81..T1,T3,TW |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26390 |
LH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26390 |
LH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-26390 |
LH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-26390 |
LH80,YH81..WT;LH80,YH81..T1,T3,TW 右側 |
1 | ||
| 48203-26391 |
LH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW 右側 |
1 | ||
| 48204-26390 |
LH80,YH81..WT;LH80,YH81..T1,T3,TW 左側 |
1 | ||
| 48204-26391 |
LH80,90,YH81..WT;LH80,90,YH81..T1,T3,TW 左側 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-26260 |
LH80,YH81..WT;LH80,YH81..T1,T3,TW # |
1 | ||
| 48220-26261 |
LH80,YH81..WT;LH80,YH81..T1,T3,TW # |
1 | ||
| 48220-26262 |
LH80,90,YH81..T1,T3,TW # |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36450 |
LH80,90,YH81 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
