YH81-MDB (1987)
Toyota Hiace Truck
Production
Aug 1987
-
May 1995
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )2Y

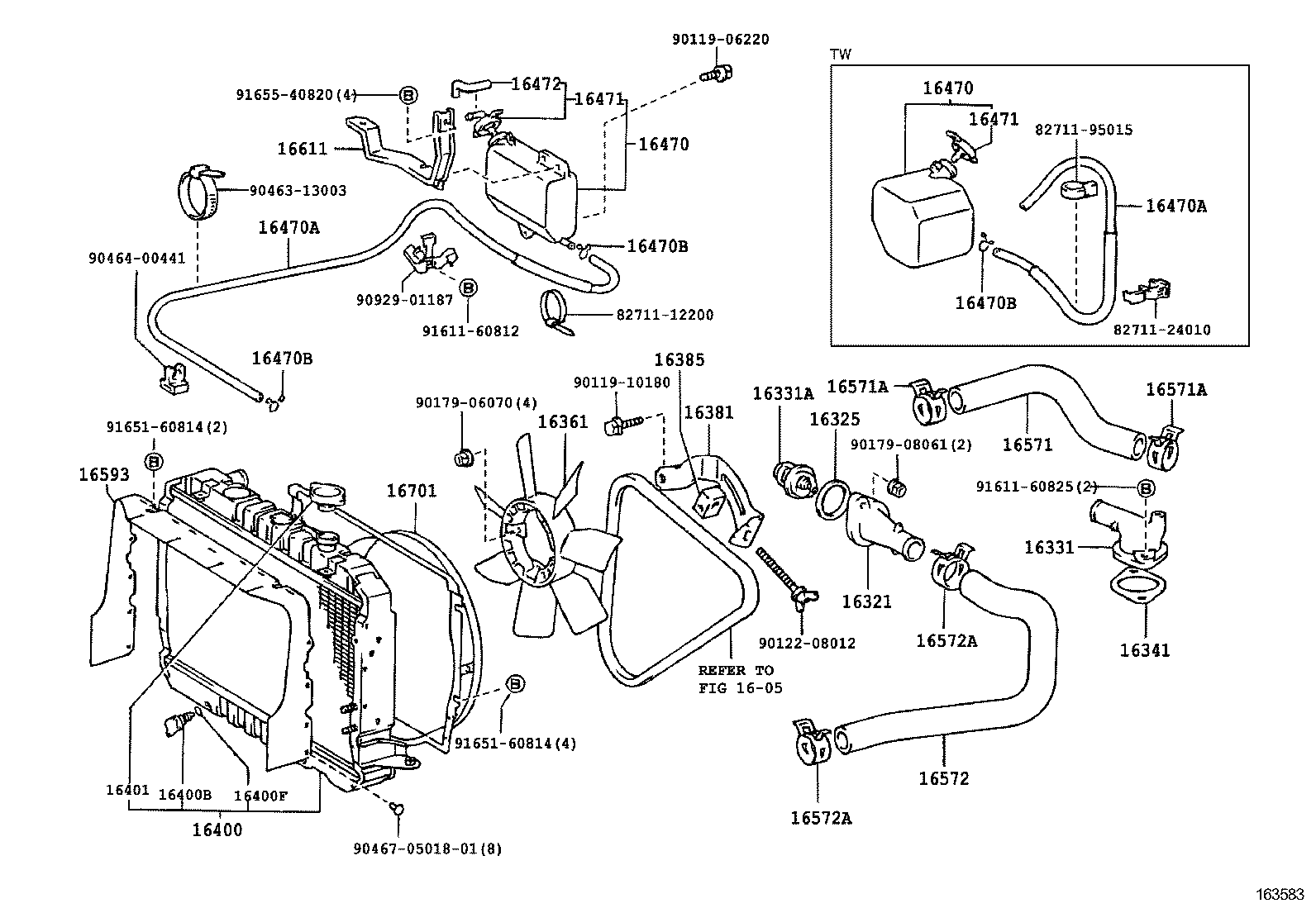

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-71010 |
2Y..YH81 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
2Y..YH81 |
1 | ||
| 16325-63011 |
2Y..YH81 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-71010 |
2Y..YH81 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2Y..YH81 *WAX 82−95 |
1 | ||
| 90916-03069 |
2Y..YH81 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-71011 |
2Y..YH81 |
1 | ||
| 16341-71010 |
2Y..YH81 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
2Y..YH81 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-73011 |
2Y..YH81 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-71010 |
2Y..YH81 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-72200 |
2Y..YH81 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
2Y..YH81 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
2Y..YH81 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
2Y..YH81 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54141 |
2Y..YH81..T1,T2,T3 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54141 |
2Y..YH81..T1,T2,T3 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12088 |
2Y..YH81..T1,T2,T3 長さ=1435 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12088 |
2Y..YH81..T1,T2,T3 長さ=1435 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2Y..YH81 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2Y..YH81 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2Y..YH81 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54151 |
2Y..YH81..T1,T2,T3 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54151 |
2Y..YH81..T1,T2,T3 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2Y..YH81..T1,T2,T3 |
2 | ||
| 85338-71030 |
2Y..YH81..T1,T2,T3 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-71060 |
2Y..YH81 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2Y..YH81 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2Y..YH81 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-71050 |
2Y..YH81 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
2Y..YH81 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
2Y..YH81 |
2 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-71020 |
2Y..YH81 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-54080 |
2Y..YH81..T1,T2,T3 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-71020 |
2Y..YH81 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-24010 | ||||
| 82711-95015 | ||||
| 90119-06220 | ||||
| 90119-10180 | ||||
| 90122-08012 | ||||
| 90179-06070 | ||||
| 90179-08061 | ||||
| 90463-13003 | ||||
| 90464-00441 | ||||
| 90467-0501801 | ||||
| 90929-01187 | ||||
| 91611-60812 | ||||
| 91611-60825 | ||||
| 91651-60814 | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 1605 | ||||
