YH81-MD3 (1987)

Toyota Hiace Truck

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

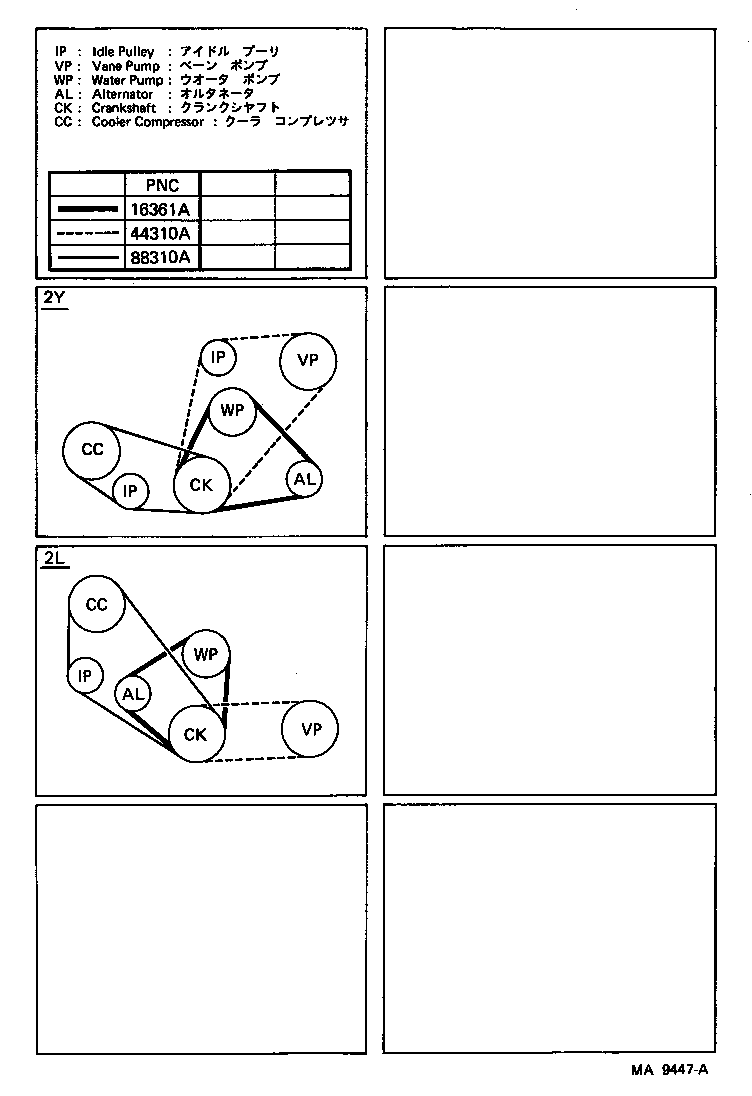

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-70820

2Y..YH81

 1
99365-50820

2Y..YH81

 1
99365-80820

2Y..YH81

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01040

YH81

長さ=1040

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00880

YH81

 1
99332-10880

YH81

長さ=880

 1
