YH81-MD (1987)
Toyota Hiace Truck

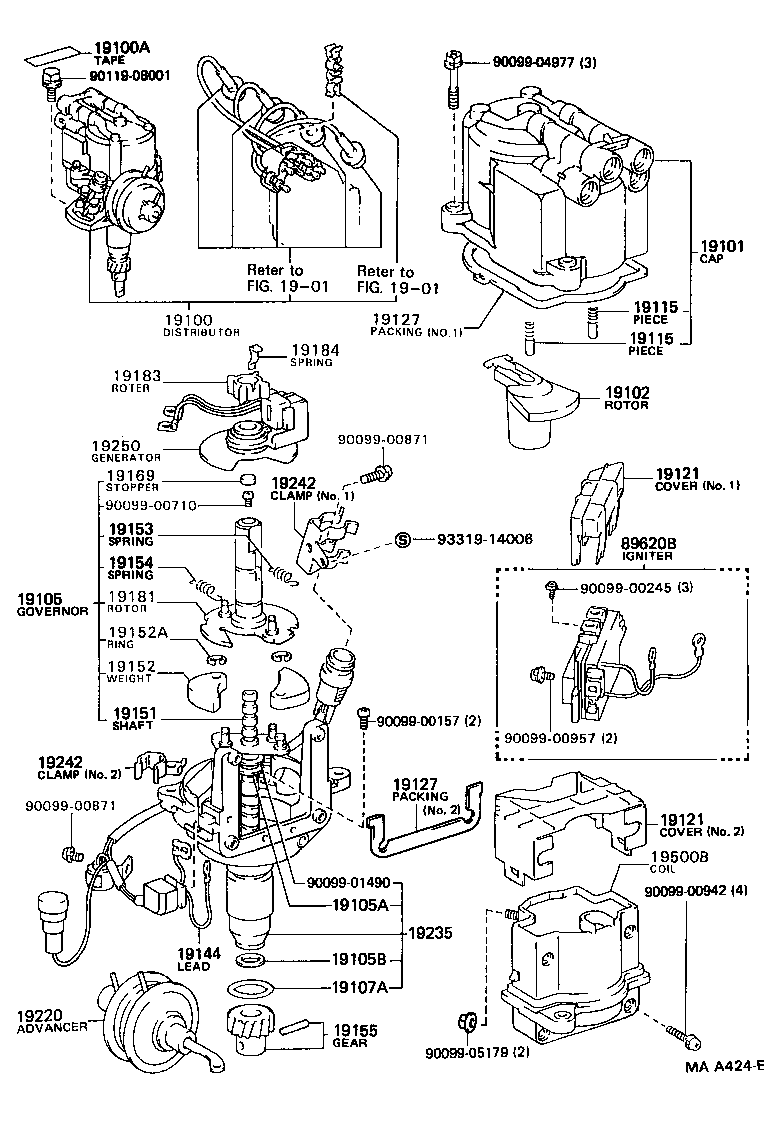

(8708-9109)2Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-73130 |
2Y..YH81 |
1 | ||
| 19030-71060 |
2Y..YH81 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
2Y..YH81 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-71010 |
2Y..YH81 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-16040 |
2Y..YH81 |
1 | ||
| 19102-16060 |
2Y..YH81 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-71060 |
2Y..YH81 |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01486 |
2Y..YH81 厚さ=0.3 |
2 | ||
| 90099-01488 |
2Y..YH81 厚さ=0.6 |
2 | ||
| 90099-01487 |
2Y..YH81 厚さ=0.4 |
2 | ||
| 90099-01489 |
2Y..YH81 厚さ=0.5 |
2 | ||
| 19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01429 |
2Y..YH81 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14090 |
2Y..YH81 |
1 | ||
| 90099-14020 |
2Y..YH81 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
2Y..YH81 |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
2Y..YH81 |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63010 |
2Y..YH81 NO.1 |
1 | ||
| 19121-63040 |
2Y..YH81 NO.2 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63010 |
2Y..YH81 NO.1 |
1 | ||
| 19121-63040 |
2Y..YH81 NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
2Y..YH81 NO.1 |
1 | ||
| 19127-63020 |
2Y..YH81 NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
2Y..YH81 NO.1 |
1 | ||
| 19127-63020 |
2Y..YH81 NO.2 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-71061 |
2Y..YH81 |
1 | ||
| 19144-73050 |
2Y..YH81 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-71010 |
2Y..YH81 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
2Y..YH81 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
2Y..YH81 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-72060 |
2Y..YH81 |
1 | ||
| 19153-71060 |
2Y..YH81 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19153-71060 |
2Y..YH81 |
1 | ||
| 19153-72060 |
2Y..YH81 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-71010 |
2Y..YH81 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
2Y..YH81 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-71060 |
2Y..YH81 |
1 | ||
| 19181-72011 |
2Y..YH81 |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-63030 |
2Y..YH81 |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
2Y..YH81 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-71060 |
2Y..YH81 |
1 | ||
| 19220-73130 |
2Y..YH81 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-71010 |
2Y..YH81 |
1 | ||
| 19235-72011 |
2Y..YH81 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-71010 |
2Y..YH81 |
1 | ||
| 19242-71061 |
2Y..YH81 NO.2 |
1 | ||
| 19242-71060 |
2Y..YH81 NO.2 |
1 | ||
| 19242-71010 |
2Y..YH81 NO.1 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-71010 |
2Y..YH81 |
1 | ||
| 19242-71061 |
2Y..YH81 NO.2 |
1 | ||
| 19242-71060 |
2Y..YH81 NO.2 |
1 | ||
| 19242-71010 |
2Y..YH81 NO.1 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-63011 |
2Y..YH81 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02139 |
2Y..YH81 |
1 | ||
| 89620B - IGNITER ASSY | ||||
| 89620-32020 |
YH81 |
1 | ||
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00245 | ||||
| 90099-00710 | ||||
| 90099-00871 | ||||
| 90099-00942 | ||||
| 90099-00957 | ||||
| 90099-01490 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90119-08001 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||

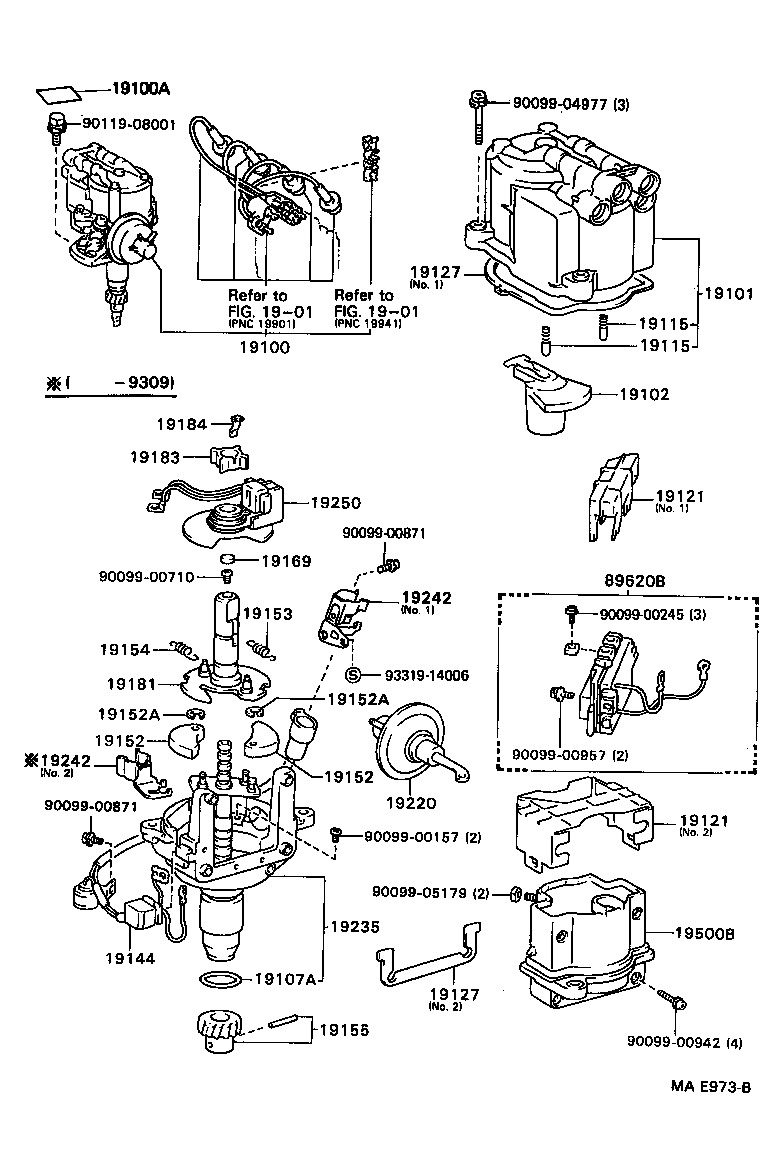

(9109- )2Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-73130 |
2Y..YH81 |
1 | ||
| 19030-71060 |
2Y..YH81 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
2Y..YH81 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-71010 |
2Y..YH81 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-16040 |
2Y..YH81 |
1 | ||
| 19102-16060 |
2Y..YH81 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14090 |
2Y..YH81 |
1 | ||
| 90099-14020 |
2Y..YH81 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
2Y..YH81 |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
2Y..YH81 |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63010 |
2Y..YH81 NO.1 |
1 | ||
| 19121-63040 |
2Y..YH81 NO.2 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63010 |
2Y..YH81 NO.1 |
1 | ||
| 19121-63040 |
2Y..YH81 NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
2Y..YH81 NO.1 |
1 | ||
| 19127-63020 |
2Y..YH81 NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
2Y..YH81 NO.1 |
1 | ||
| 19127-63020 |
2Y..YH81 NO.2 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-71061 |
2Y..YH81 |
1 | ||
| 19144-73050 |
2Y..YH81 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
2Y..YH81 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
2Y..YH81 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
2Y..YH81 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
2Y..YH81 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-72060 |
2Y..YH81 |
1 | ||
| 19153-71060 |
2Y..YH81 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19153-71060 |
2Y..YH81 |
1 | ||
| 19153-72060 |
2Y..YH81 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-71010 |
2Y..YH81 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
2Y..YH81 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-71060 |
2Y..YH81 |
1 | ||
| 19181-72011 |
2Y..YH81 |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-63030 |
2Y..YH81 |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
2Y..YH81 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-71060 |
2Y..YH81 |
1 | ||
| 19220-73130 |
2Y..YH81 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-71010 |
2Y..YH81 |
1 | ||
| 19235-72011 |
2Y..YH81 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-71010 |
2Y..YH81 |
1 | ||
| 19242-71061 |
2Y..YH81 NO.2 |
1 | ||
| 19242-71060 |
2Y..YH81 NO.2 |
1 | ||
| 19242-71010 |
2Y..YH81 NO.1 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-71010 |
2Y..YH81 |
1 | ||
| 19242-71061 |
2Y..YH81 NO.2 |
1 | ||
| 19242-71060 |
2Y..YH81 NO.2 |
1 | ||
| 19242-71010 |
2Y..YH81 NO.1 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-63011 |
2Y..YH81 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02139 |
2Y..YH81 |
1 | ||
| 89620B - IGNITER ASSY | ||||
| 89620-32020 |
YH81 |
1 | ||
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00245 | ||||
| 90099-00710 | ||||
| 90099-00871 | ||||
| 90099-00942 | ||||
| 90099-00957 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90119-08001 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||
