Toyota Hiace truck YH80 WIRING & CLAMP

YH80-KDLT3 (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987

Engine 1YJ

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

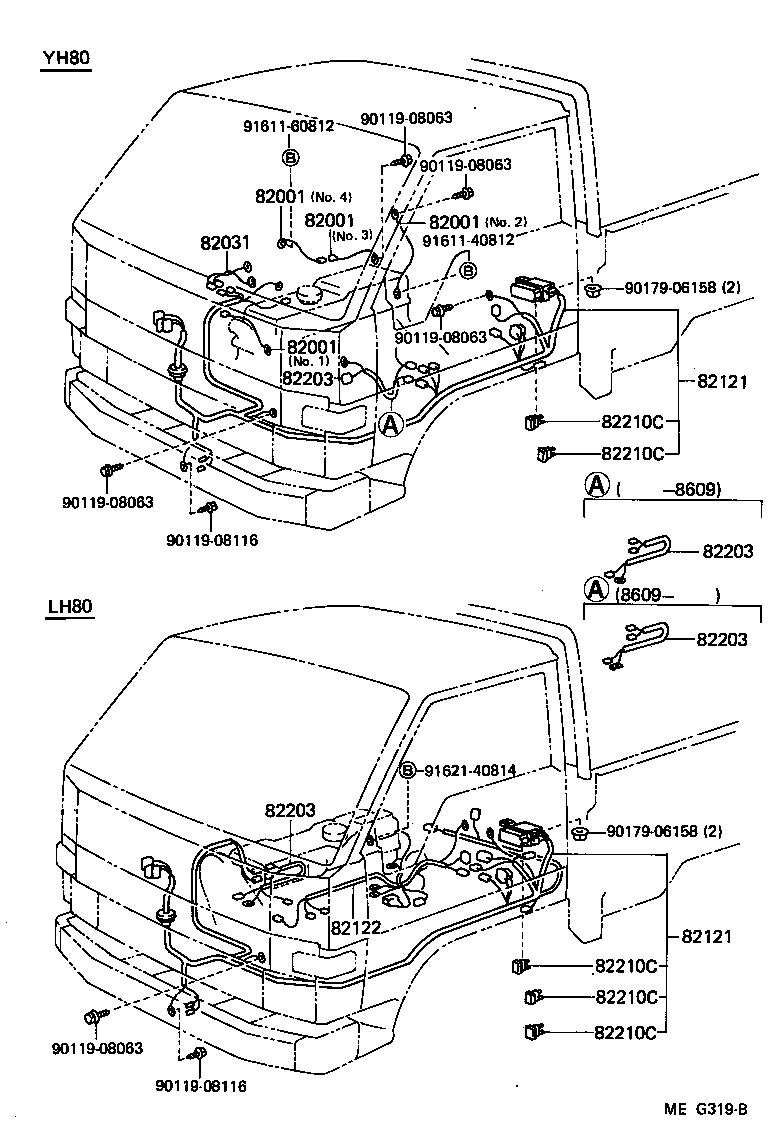

ILLUST NO. 1 OF 3(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07256	YH80 NO.1,L=170	08/1985 - 08/1987	1
90980-07228	YH80 NO.3,L=170	08/1985 - 08/1987	1
90980-07227	YH80 NO.4,L=300	08/1985 - 08/1987	1
90980-07181	YH80 NO.2,L=460	08/1985 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07256	YH80 NO.1,L=170	08/1985 - 08/1987	1
90980-07228	YH80 NO.3,L=170	08/1985 - 08/1987	1
90980-07227	YH80 NO.4,L=300	08/1985 - 08/1987	1
90980-07181	YH80 NO.2,L=460	08/1985 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07256	YH80 NO.1,L=170	08/1985 - 08/1987	1
90980-07228	YH80 NO.3,L=170	08/1985 - 08/1987	1
90980-07227	YH80 NO.4,L=300	08/1985 - 08/1987	1
90980-07181	YH80 NO.2,L=460	08/1985 - 08/1987	1
82001 - CABLE, BOND, NO.1
90980-07256	YH80 NO.1,L=170	08/1985 - 08/1987	1
90980-07228	YH80 NO.3,L=170	08/1985 - 08/1987	1
90980-07227	YH80 NO.4,L=300	08/1985 - 08/1987	1
90980-07181	YH80 NO.2,L=460	08/1985 - 08/1987	1
82031 - WIRE SUB-ASSY, IGNITION COIL
82031-95010	YH80	08/1985 - 08/1987	1
82121 - WIRE, ENGINE
82121-95016	YH80	08/1985 - 02/1986	1
82121-95032	YH80	02/1986 - 08/1987	1
82121 - WIRE, ENGINE
82121-95016	YH80	08/1985 - 02/1986	1
82121-95032	YH80	02/1986 - 08/1987	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-95014	YH80	08/1986 - 09/1986	1
82203-95011	YH80	08/1985 - 08/1986	1
82203-95015	YH80	09/1986 - 08/1987	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-95014	YH80	08/1986 - 09/1986	1
82203-95011	YH80	08/1985 - 08/1986	1
82203-95015	YH80	09/1986 - 08/1987	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-95014	YH80	08/1986 - 09/1986	1
82203-95011	YH80	08/1985 - 08/1986	1
82203-95015	YH80	09/1986 - 08/1987	1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-95014	YH80	08/1986 - 09/1986	1
82203-95011	YH80	08/1985 - 08/1986	1
82203-95015	YH80	09/1986 - 08/1987	1
82210C - FUSIBLE LINK
90982-08202	YH80 60A,ｵｽ端子,黄,60A	08/1985 - 08/1987	1
90982-08189	LH80,YH80 40A,ﾒｽ端子,緑,40A	08/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08202	YH80 60A,ｵｽ端子,黄,60A	08/1985 - 08/1987	1
90982-08189	LH80,YH80 40A,ﾒｽ端子,緑,40A	08/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08202	YH80 60A,ｵｽ端子,黄,60A	08/1985 - 08/1987	1
90982-08189	LH80,YH80 40A,ﾒｽ端子,緑,40A	08/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08202	YH80 60A,ｵｽ端子,黄,60A	08/1985 - 08/1987	1
90982-08189	LH80,YH80 40A,ﾒｽ端子,緑,40A	08/1985 - 08/1987	1
82210C - FUSIBLE LINK
90982-08202	YH80 60A,ｵｽ端子,黄,60A	08/1985 - 08/1987	1
90982-08189	LH80,YH80 40A,ﾒｽ端子,緑,40A	08/1985 - 08/1987	1
Common parts
90119-08063
90119-08116
90179-06158
91611-40812
91611-60812
91621-40814

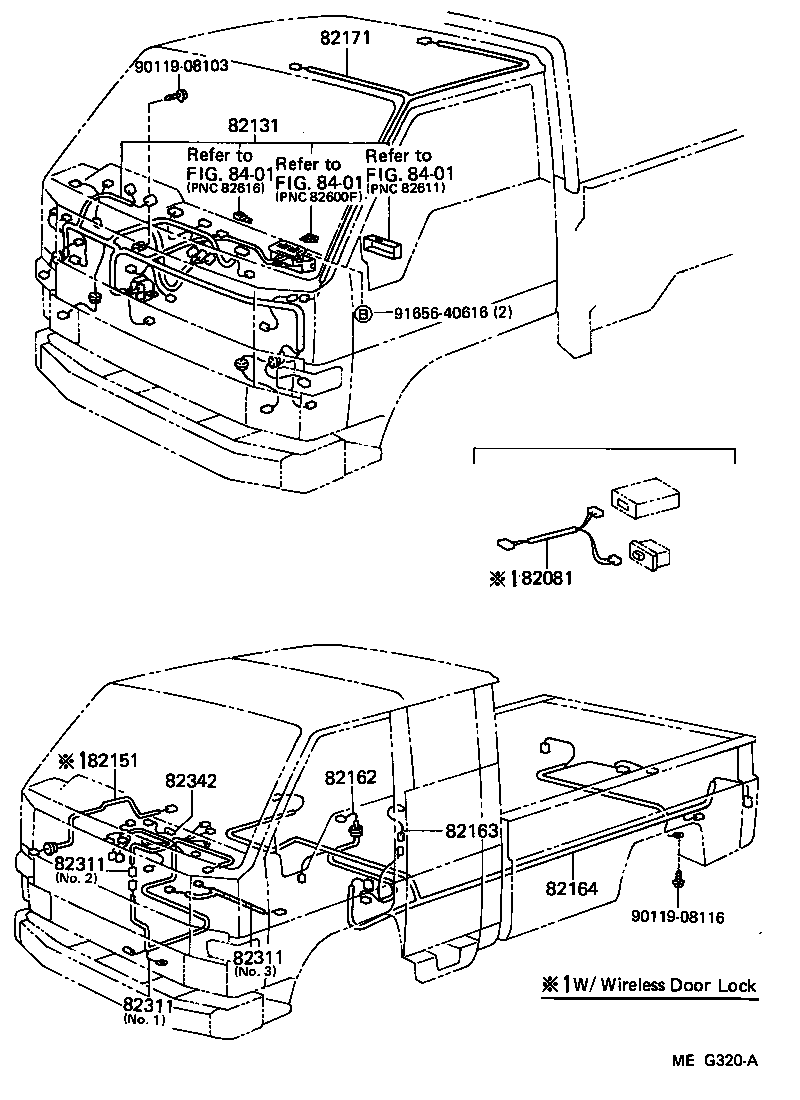

ILLUST NO. 2 OF 3(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-95A00	YH80	08/1985 - 08/1986	1
82131-95A34	YH80	08/1986 - 08/1987	1
82164 - WIRE, FRAME
82164-95A00	YH80..T1,T3,TW	08/1985 - 08/1986	1
82164-95A08	YH80..T2	08/1985 - 08/1986	1
82164-95A15	YH80..T1,T3,TW	08/1986 - 08/1987	1
82164-95A18	YH80..T2	08/1986 - 08/1987	1
82171 - WIRE, ROOF, NO.1
82171-95400	LH80,YH80..T1,T2,T3	08/1985 - 08/1987	1
82311 - HARNESS ASSY, COOLER
88648-95409	YH80 NO.2	08/1985 - 08/1987	1
88648-95A13	YH80 NO.1	08/1985 - 08/1987	1
82311 - HARNESS ASSY, COOLER
88648-95409	YH80 NO.2	08/1985 - 08/1987	1
88648-95A13	YH80 NO.1	08/1985 - 08/1987	1
82311 - HARNESS ASSY, COOLER
88648-95409	YH80 NO.2	08/1985 - 08/1987	1
88648-95A13	YH80 NO.1	08/1985 - 08/1987	1
82342 - WIRE, CLOCK
82304-95010	LH80,YH80	08/1985 - 08/1987	1
Common parts
90119-08103
90119-08116
91656-40616
Linked diagrams
8401

ILLUST NO. 3 OF 3(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12290
82711-12450
82711-14560
82711-20050
82711-20490
82711-22870
82711-30700
82711-40020
82711-95013
82711-95015
82711-95017
82711-95404
82711-95410
82711-95411
82817-14350
82819-95402
90461-04009
90461-08200
90461-08202
90461-10294
90461-12146
90463-15002
90464-00052
90464-00137

ILLUST NO. 3 OF 3(8508- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-1A210
82711-22270
82711-22710
82711-2A140
82711-2A190
82711-30640
82711-95021
82711-95022
90044-64009
90461-08574
90461-10275
90463-10012
90463-15003
90463-20473
90464-00165
90464-00389
90480-30004
90950-01029
