YH80-KDLT3 (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 1YJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )WT ; (8508- )T1,T3,TW

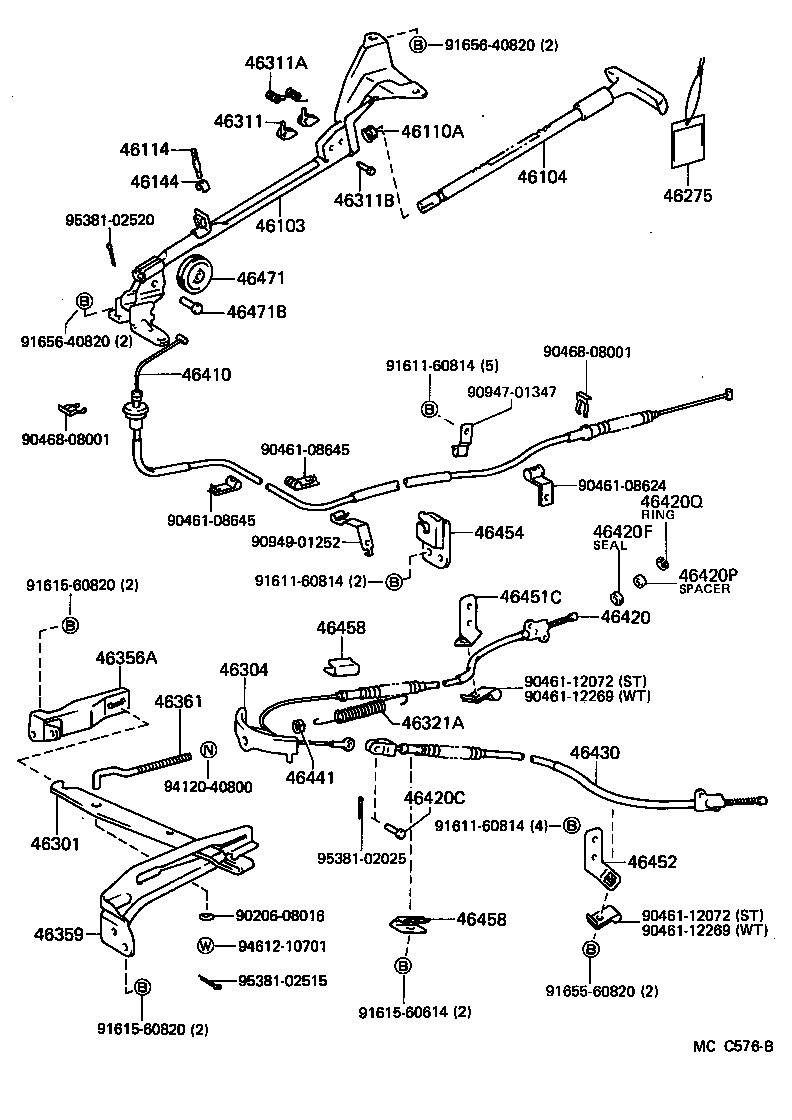

Click highlighted areas on diagram

diagram 46103 46104 46110A 46114 46144 46275 46301 46304 46311 46311A 46311B 46321A 46356A 46359 46361 46410 46420 46420C 46420F 46420P 46420Q 46430 46441 46451C 46452 46454 46458 46458 46471 46471B 9020608016 9046108624 9046108645 9046108645 9046112072 9046112072 9046112269 9046112269 9046808001 9046808001 9094701347 9094901252 9161160814 9161160814 9161160814 9161560614 9161560820 9161560820 9165560820 9165640820 9165640820 9412040800 9461210701 9538102025 9538102515 9538102520
Part # Description Qty Price
46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46103-26120

LH80,YH80

 1
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46104-26080

LH80,YH80

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-12048

LH80,YH80

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LH80,YH80

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-20010

LH80,YH80

 1
46275 - PLATE, PARKING BRAKE RELEASE CAUTION
46275-26010

LH80,YH80

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46321-26011

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-26010

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 1
46311 - PAWL, PARKING BRAKE
46311-26010

LH80,YH80

 2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08106

LH80,YH80

 1
46311B - PIN, PARKING BRAKE PAWL PIVOT
46313-40010

LH80,YH80

 2
46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90507-20015

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 1
46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46356-26080

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 1
46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER
46359-26060

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 1
46361 - ROD, PARKING BRAKE PULL
46361-26020

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-26240

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-26140

LH80,YH80..T1,T3,TW

 1
46420-26150

LH80,YH80..WT

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-06032

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 1
46420F - SEAL, DUST(FOR PARKING BRAKE CABLE)
90303-10001

LH80,YH80..WT

 2
46420P - SPACER, PARKING BRAKE
90560-08014

LH80,YH80..WT

 2
46420Q - RING, E(FOR PARKING BRAKE CABLE)
96160-00700

LH80,YH80..WT

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-26140

LH80,YH80..T1,T3,TW

 1
46430-26150

LH80,YH80..WT

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-08020

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-26050

LH80,YH80..T1,T3,TW

 1
46451-26060

LH80,YH80..WT

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-26020

LH80,YH80..T1,T3,TW

 1
46452-26030

LH80,YH80..WT

 1
46454 - BRACKET, CABLE RETAINER, FRONT
46454-26040

LH80,YH80..WT;LH80,YH80..T1,T3,TW

 1
46458 - RETAINER, CABLE
46458-28010

LH80,YH80

 2
46458 - RETAINER, CABLE
46458-28010

LH80,YH80

 2
46471 - PULLEY, WIRE
46471-20010

LH80,YH80

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08017

LH80,YH80

 1
Common parts
90206-08016
90461-08624
90461-08645
90461-12072
90461-12269
90468-08001
90947-01347
90949-01252
91611-60814
91615-60614
91615-60820
91655-60820
91656-40820
94120-40800
94612-10701
95381-02025
95381-02515
95381-02520
