YH80-KDLT (1985)
Toyota Hiace Truck
Production
Aug 1985
-
Aug 1987
Engine
1YJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

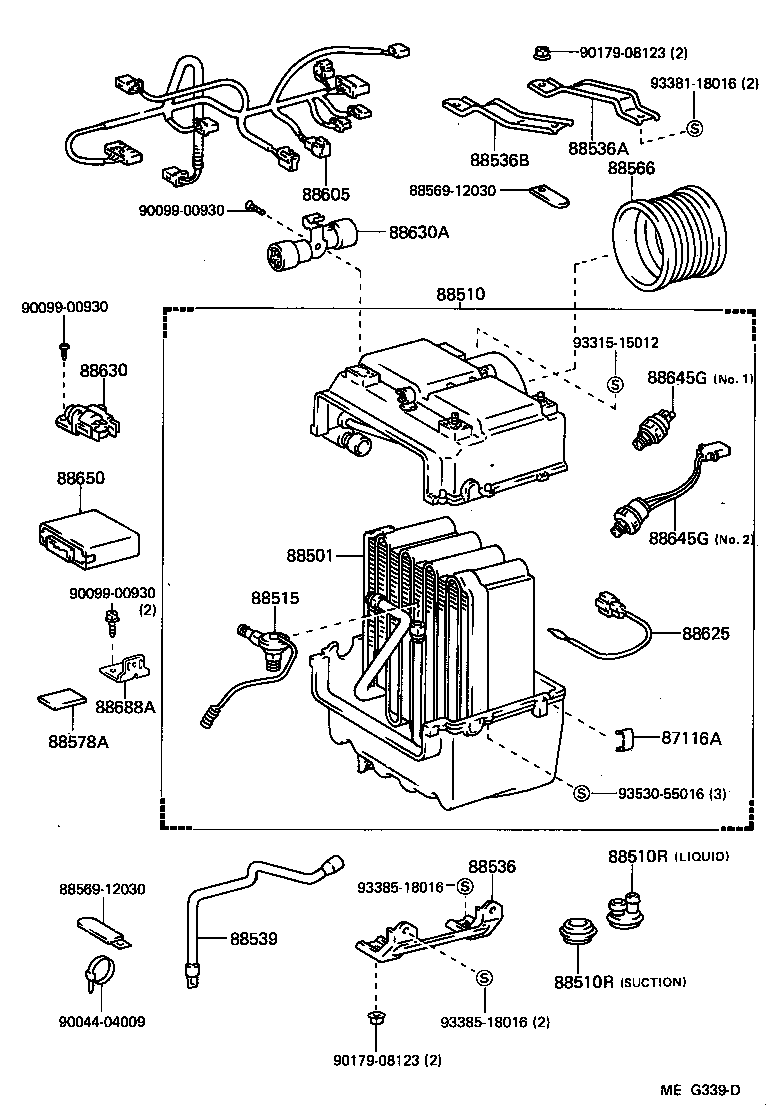

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
LH80,YH80 |
6 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95403 |
LH80,YH80 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95A17 |
LH80,YH80 |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90480-36010 |
LH80,YH80 SUCTION PIPE |
1 | ||
| 90099-32098 |
LH80,YH80 LIQUID PIPE |
1 | ||
| 90480-36003 |
LH80,YH80 SUCTION PIPE |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90480-36010 |
LH80,YH80 SUCTION PIPE |
1 | ||
| 90099-32098 |
LH80,YH80 LIQUID PIPE |
1 | ||
| 90480-36003 |
LH80,YH80 SUCTION PIPE |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
LH80,YH80 |
1 | ||
| 88515-16031 |
LH80,YH80 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A34 |
LH80,YH80 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95404 |
LH80,YH80 |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95405 |
LH80,YH80 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95A11 |
LH80,YH80 |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-95407 |
LH80,YH80 |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-95400 |
LH80,YH80 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95404 |
YH80 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
LH80,YH80 |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95401 |
LH80,YH80 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-17010 |
LH80,YH80 NO.2 |
1 | ||
| 88645-95J00 |
LH80,YH80 NO.1 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-17010 |
LH80,YH80 NO.2 |
1 | ||
| 88645-95J00 |
LH80,YH80 NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-87101 |
YH80 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-95425 |
LH80,YH80 |
1 | ||
| Common parts | ||||
| 88569-12030 | ||||
| 90044-04009 | ||||
| 90099-00930 | ||||
| 90179-08123 | ||||
| 93315-15012 | ||||
| 93381-18016 | ||||
| 93385-18016 | ||||
| 93530-55016 | ||||
