YH80-KDLT (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 1YJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

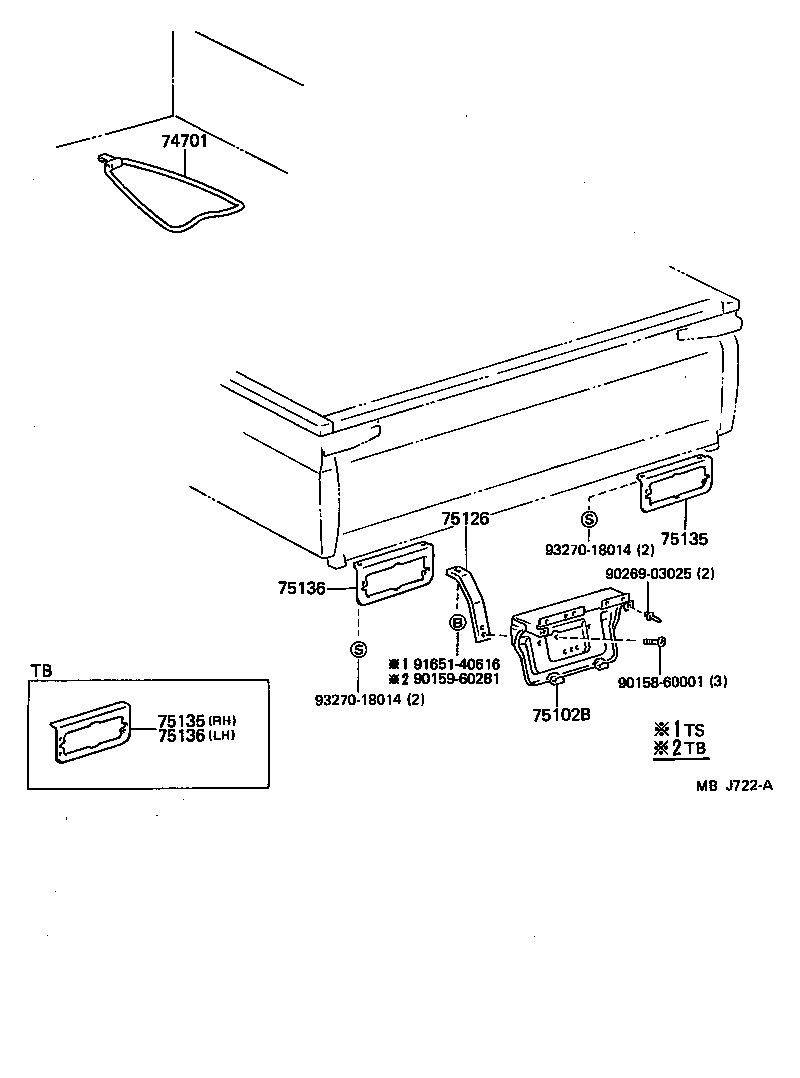

Click highlighted areas on diagram

diagram 74701 75102B 75126 75135 75135 75136 75136 9015860001 9015960281 9026903025 9165140616 9327018014 9327018014
Part # Description Qty Price
74701 - CLAMP SUB-ASSY, TOOL BAG
58705-95A01

LH80,YH80

 1
75102B - HANGER ASSY, LICENSE PLATE BRACKET
66490-95019

LH80,YH80..T1,T2,TW

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
66407-95020

LH80,YH80..T2..TS

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95A02

LH80,YH80..(T2,T3)..TS

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95A02

LH80,YH80..(T2,T3)..TS

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95A02

LH80,YH80..(T2,T3)..TS

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95A02

LH80,YH80..(T2,T3)..TS

 1
Common parts
90158-60001
90159-60281
90269-03025
91651-40616
93270-18014
