YH80-KDB (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 1YJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

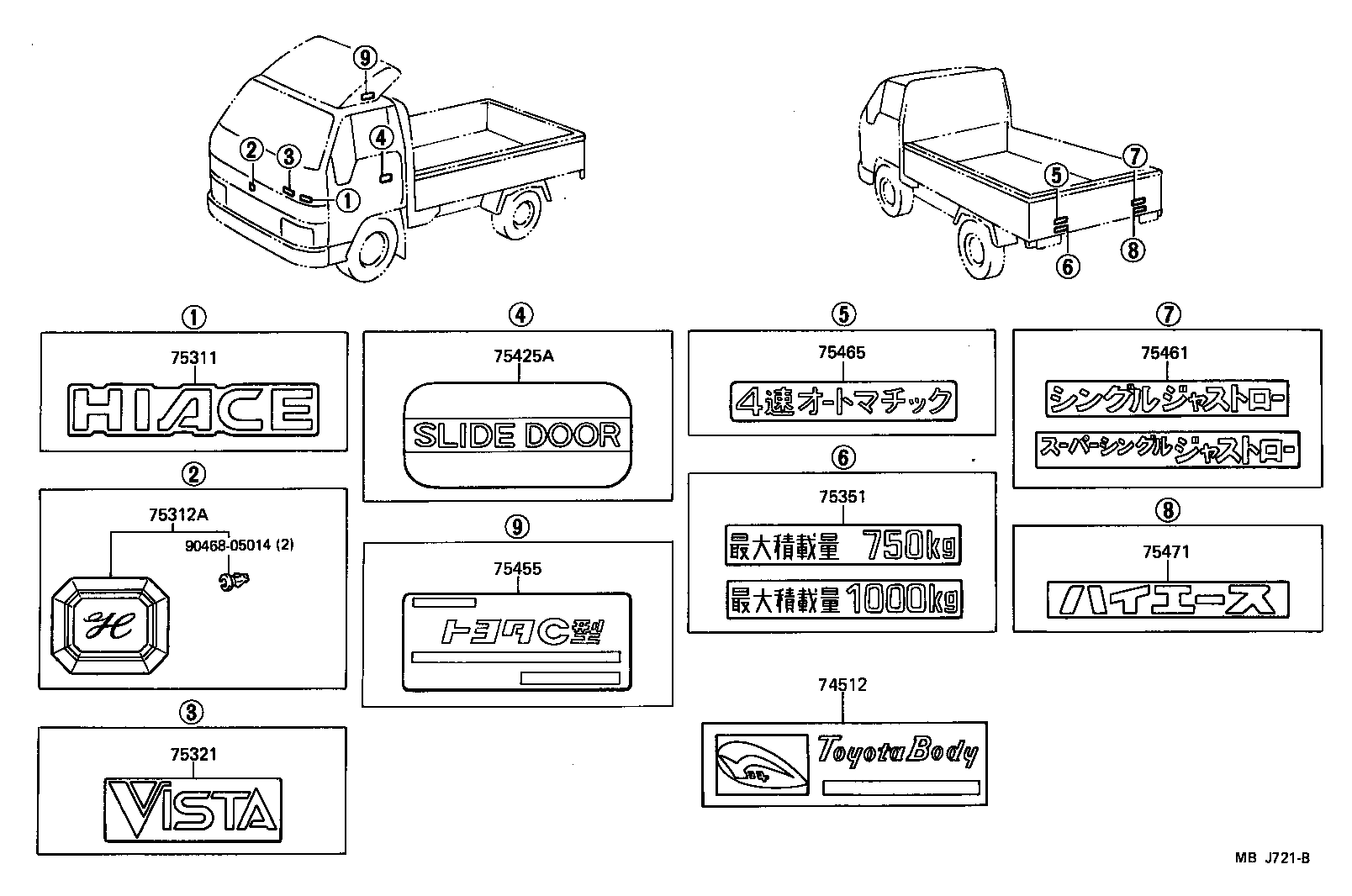

Click highlighted areas on diagram

diagram 74512 75311 75312A 75321 75351 75425A 75455 75461 75465 75471 9046805014
Part # Description Qty Price
74512 - PLATE, MANUFACTURED NAME
74512-95550

LH80,YH80

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-95A04

LH80,YH80

 1
75312A - PLATE, FRONT NAME, NO.2
75312-95A06

LH80,YH80

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75314-95J01

LH80,YH80

VISTA,VISTA

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75472-95A03

LH80,YH80..T1,T2,T3

1000KG

 1
75455 - MARK, ROOF AIR DEFLECTOR
75455-95404

LH80,YH80..T1,T2,T3

 1
75471 - PLATE, REAR BODY NAME, NO.1(MODEL MARK)
75471-95A00

LH80,YH80

 1
Common parts
90468-05014
