YH80-KDB (1985)
Toyota Hiace Truck
Production
Aug 1985
-
Aug 1987
Engine
1YJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )YH80

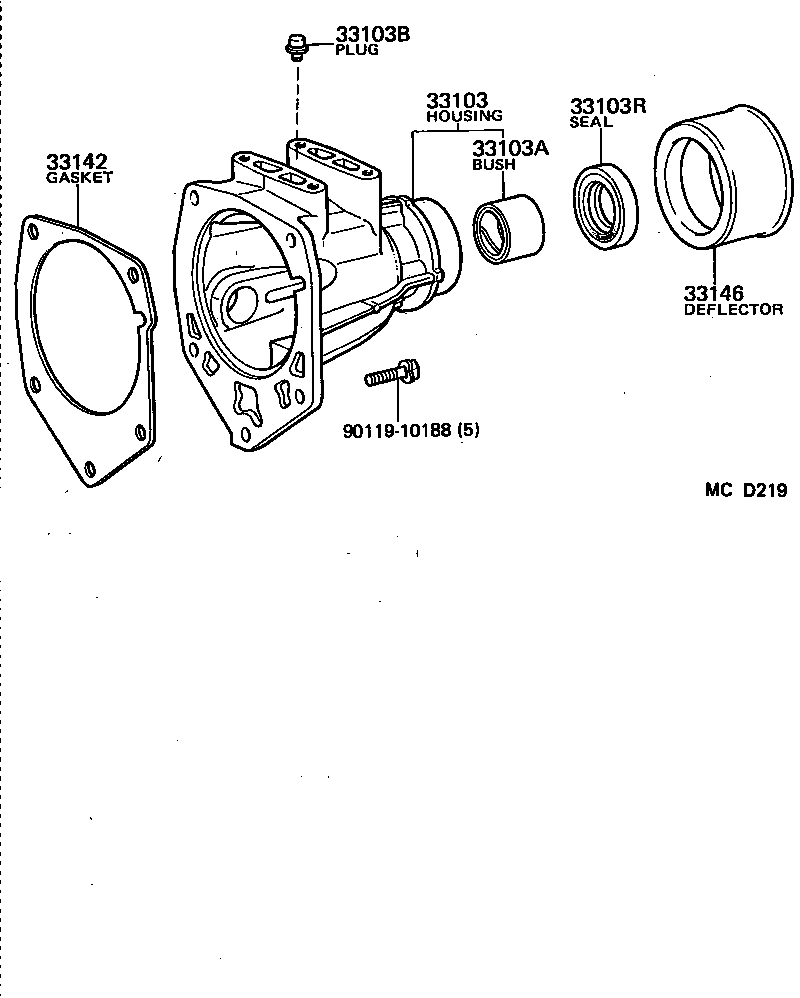

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-27020 |
YH80 |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
LH80,YH80..MTM |
1 | ||
| 33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING) | ||||
| 90930-03075 |
YH80 |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38043 |
LH80,YH80..MTM |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-26010 |
YH80 |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
LH80,YH80..MTM |
1 | ||
| Common parts | ||||
| 90119-10188 | ||||
