YH80-KDB (1985)

Toyota Hiace Truck

Production Aug 1985 - Aug 1987
Engine 1YJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )1YJ

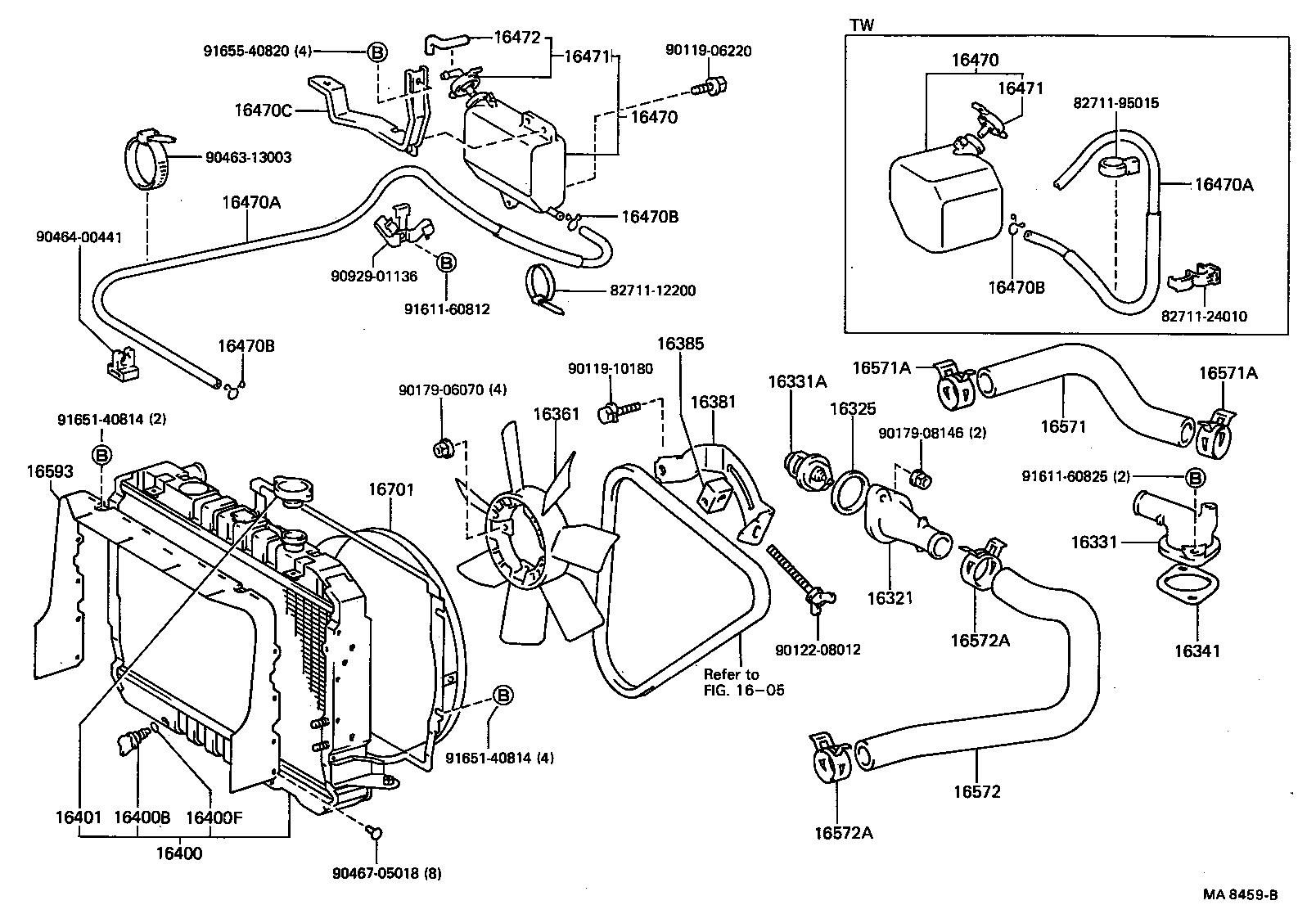

Click highlighted areas on diagram

diagram 1605 16321 16325 16331 16331A 16341 16361 16381 16385 16400 16400B 16400F 16401 16470 16470 16470A 16470A 16470B 16470B 16470B 16470C 16471 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16593 16701 8271112200 8271124010 8271195015 9011906220 9011910180 9012208012 9017906070 9017908146 9046313003 9046400441 9046705018 9092901136 9161160812 9161160825 9165140814 9165140814 9165540820
Part # Description Qty Price
16321 - INLET, WATER
16321-71010

1YJ..YH80

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

1YJ..YH80

 1
16331 - OUTLET, WATER
16331-71010

1YJ..YH80

 1
16331A - THERMOSTAT
90916-03069

1YJ..YH80

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-71010

1YJ..YH80

 1
16361 - FAN
16361-38010

1YJ..YH80

 1
16381 - BAR, FAN BELT ADJUSTING
16381-73011

1YJ..YH80

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

1YJ..YH80

 1
16400 - RADIATOR ASSY
16400-71120

1YJ..YH80

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24051

1YJ..YH80

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24051

1YJ..YH80

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

1YJ..YH80

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54140

1YJ..YH80..T1,T2,T3

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54140

1YJ..YH80..T1,T2,T3

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90447-12061

1YJ..YH80..T1,T2,T3

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90447-12061

1YJ..YH80..T1,T2,T3

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1YJ..YH80

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1YJ..YH80

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1YJ..YH80

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-54080

1YJ..YH80..T1,T2,T3

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54150

1YJ..YH80..T1,T2,T3

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54150

1YJ..YH80..T1,T2,T3

 1
16472 - HOSE, BREATHER
85338-71030

1YJ..YH80..T1,T2,T3

 1
16571 - HOSE, RADIATOR, INLET
16571-71060

1YJ..YH80

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

1YJ..YH80

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

1YJ..YH80

 2
16572 - HOSE, RADIATOR, OUTLET
16572-71050

1YJ..YH80

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1YJ..YH80

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1YJ..YH80

 2
16593 - GUIDE, RADIATOR AIR, NO.1
16593-71020

1YJ..YH80

 1
16701 - SHROUD SUB-ASSY, FAN
16701-71020

1YJ..YH80

 1
Common parts
82711-12200
82711-24010
82711-95015
90119-06220
90119-10180
90122-08012
90179-06070
90179-08146
90463-13003
90464-00441
90467-05018
90929-01136
91611-60812
91611-60825
91651-40814
91655-40820
Linked diagrams
1605
