YH80-KD3 (1985)
Toyota Hiace Truck
Production
Aug 1985
-
Aug 1987
Engine
1YJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )1YJ

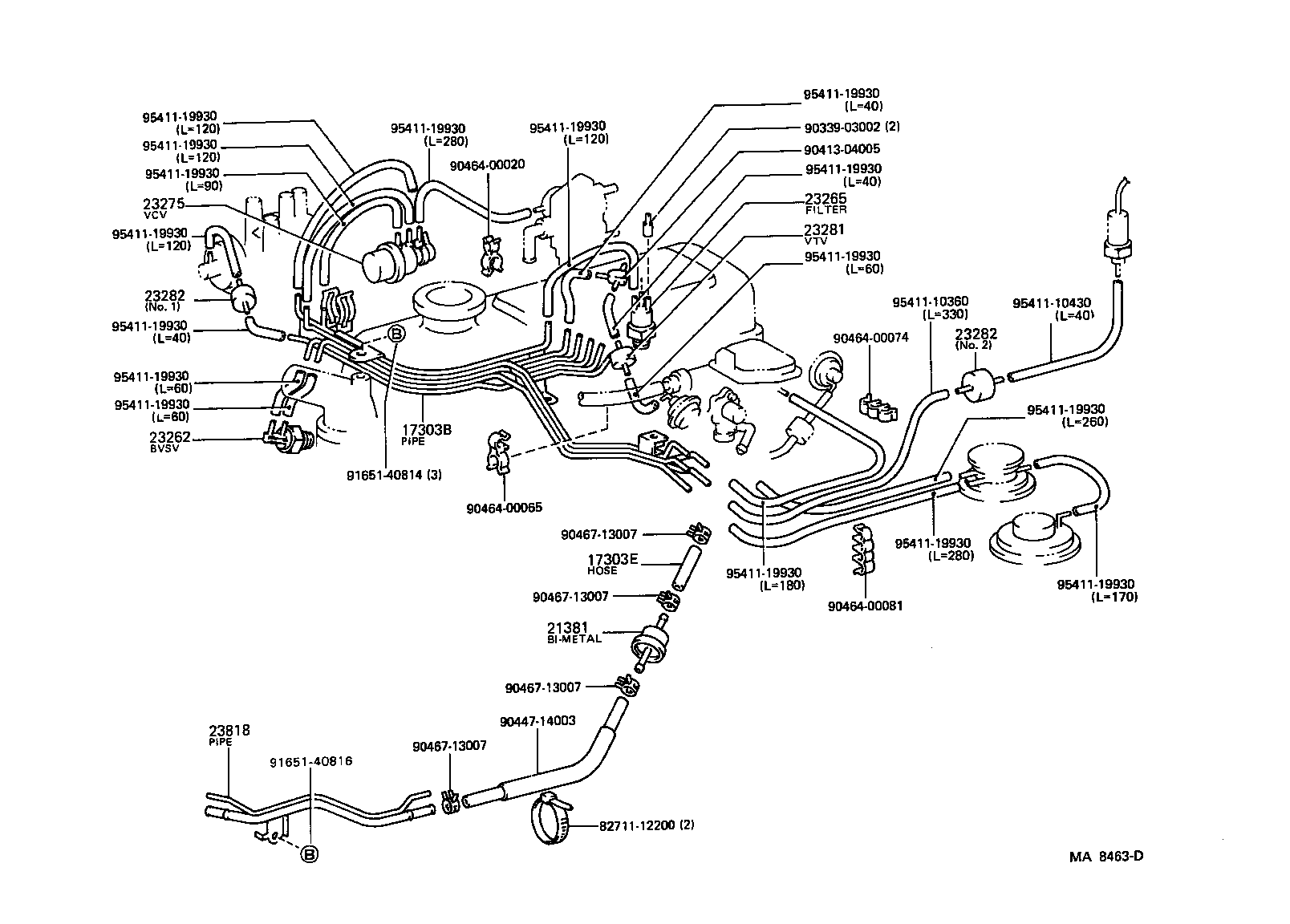

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71090 |
1YJ..YH80 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14069 |
1YJ..YH80 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71040 |
1YJ..YH80 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05041 |
1YJ..YH80 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1YJ..YH80 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03166 |
1YJ..YH80 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01075 |
1YJ..YH80 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01019 |
1YJ..YH80 NO.1 |
1 | ||
| 90925-01021 |
1YJ..YH80 NO.2 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01019 |
1YJ..YH80 NO.1 |
1 | ||
| 90925-01021 |
1YJ..YH80 NO.2 |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-71020 |
1YJ..YH80 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90447-14003 | ||||
| 90464-00020 | ||||
| 90464-00065 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90467-13007 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 95411-10360 | ||||
| 95411-10430 | ||||
| 95411-19930 | ||||
(8508- )1YJ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
