RH24-JRP3 (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

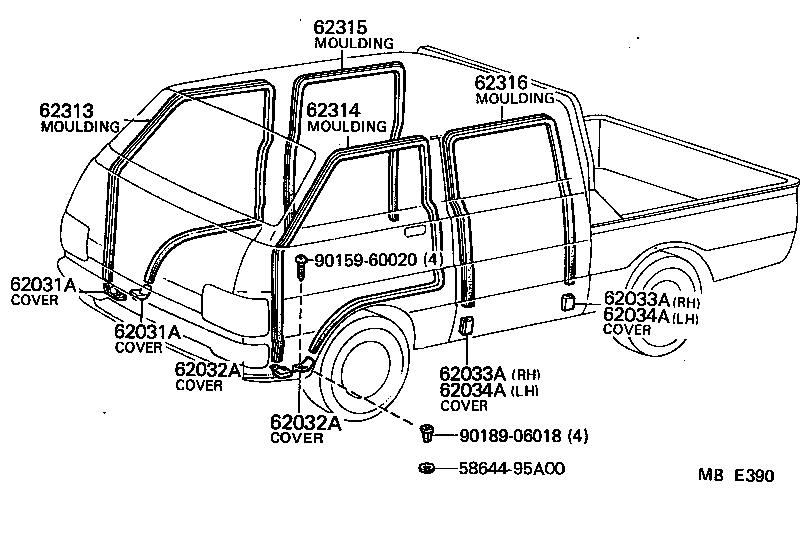

Click highlighted areas on diagram

diagram 5864495A00 62031A 62031A 62032A 62032A 62033A 62033A 62034A 62034A 62313 62314 62315 62316 9015960020 9018906018
Part # Description Qty Price
62031A - COVER, FRONT DOOR OPENING, RH
58623-95A02

LH24,RH24

RR

 1
58621-95A02

LH24,RH24

FR

 1
62031A - COVER, FRONT DOOR OPENING, RH
58623-95A02

LH24,RH24

RR

 1
58621-95A02

LH24,RH24

FR

 1
62032A - COVER, FRONT DOOR OPENING, LH
58622-95A02

LH24,RH24

FR

 1
58624-95A02

LH24,RH24

RR

 1
62032A - COVER, FRONT DOOR OPENING, LH
58622-95A02

LH24,RH24

FR

 1
58624-95A02

LH24,RH24

RR

 1
62033A - COVER, REAR DOOR OPENING, RH
62314-95403

LH24,RH24..06S

 2
62033A - COVER, REAR DOOR OPENING, RH
62314-95403

LH24,RH24..06S

 2
62034A - COVER, REAR DOOR OPENING, LH
62314-95403

LH24,RH24..06S

 2
62034A - COVER, REAR DOOR OPENING, LH
62314-95403

LH24,RH24..06S

 2
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95A04

LH24,RH24

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95A04

LH24,RH24

 1
62315 - MOULDING, REAR DOOR OPENING TRIM, RH
62346-95A01

LH24,RH24..06S

 1
62316 - MOULDING, REAR DOOR OPENING TRIM, LH
62346-95A01

LH24,RH24..06S

 1
Common parts
58644-95A00
90159-60020
90189-06018
