RH24-JRP3 (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )12RJ

Click highlighted areas on diagram

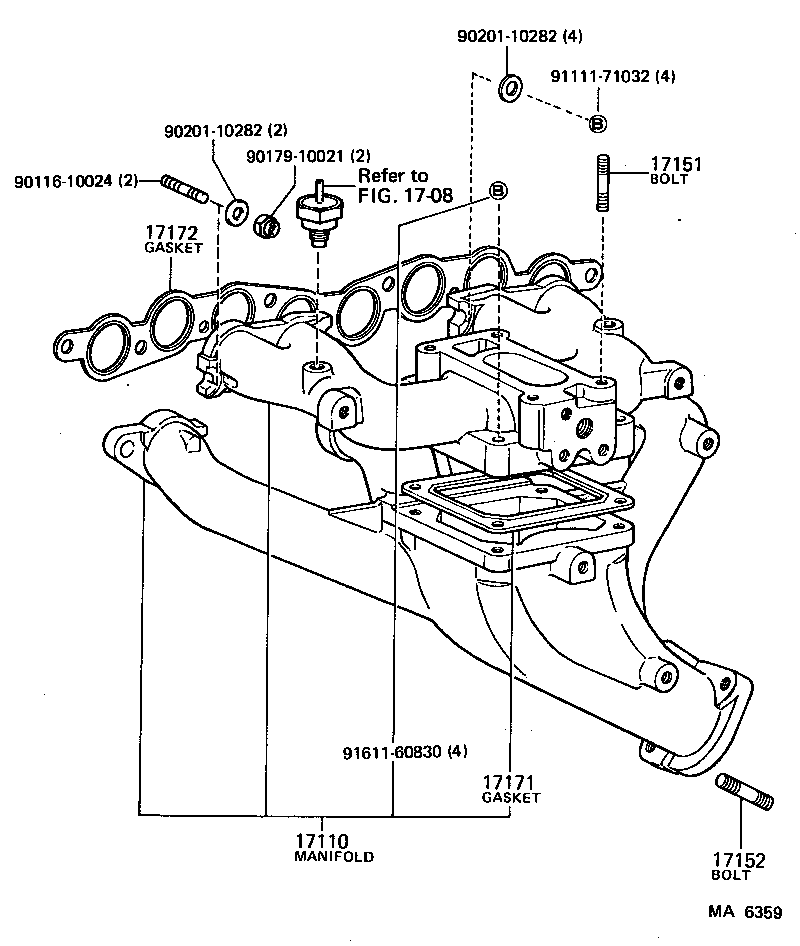

diagram 1708 17110 17151 17152 17171 17172 9011610024 9017910021 9020110282 9020110282 9111171032 9161160830
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-31120

12RJ..RH24

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08320

12RJ..RH24

L=39,S=13&13

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12RJ..RH24

L=37,S=20&13

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-31020

12RJ..RH24

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-31021

12RJ..RH24

 1
Common parts
90116-10024
90179-10021
90201-10282
91111-71032
91611-60830
Linked diagrams
1708
