RH24-JR (1982)
Toyota Hiace Truck
Production
Nov 1982
-
Jul 1985
Engine
12RJ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )RH24

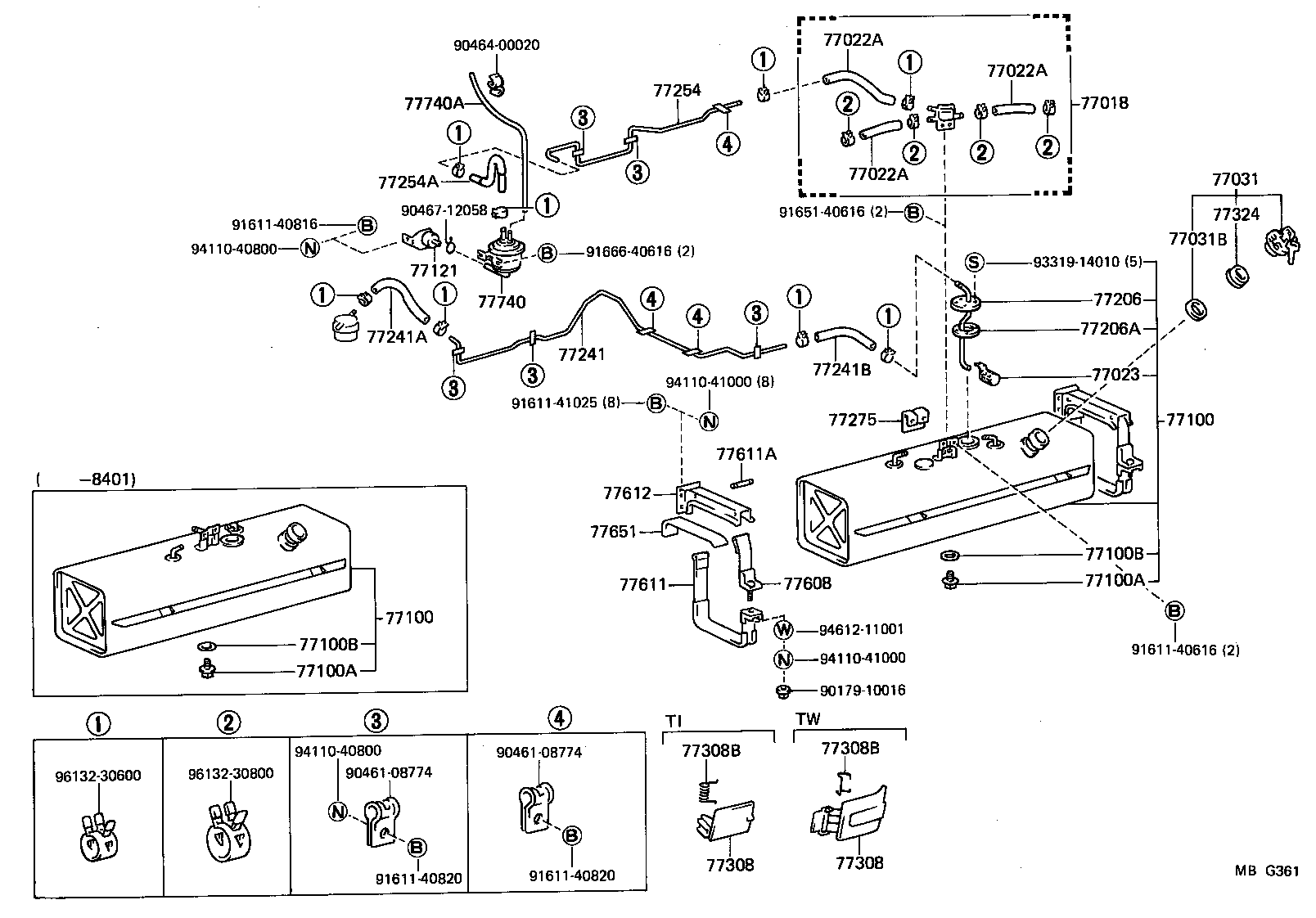

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26031 |
RH24 |
1 | ||
| 77018-26032 |
RH24 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
RH24 *H,L=140 |
1 | ||
| 95332-08020 |
LH24,RH24 *H,L=140,内径=7.6 |
2 | ||
| 95332-06030 |
RH24 *H,L=280 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
RH24 *H,L=140 |
1 | ||
| 95332-08020 |
LH24,RH24 *H,L=140,内径=7.6 |
2 | ||
| 95332-06030 |
RH24 *H,L=280 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
RH24 *H,L=140 |
1 | ||
| 95332-08020 |
LH24,RH24 *H,L=140,内径=7.6 |
2 | ||
| 95332-06030 |
RH24 *H,L=280 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RH24 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-95400 |
RH24 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12031 |
LH24,RH24 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-28020 |
RH24..ST |
1 | ||
| 77001-26270 |
RH24..ST |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-28020 |
RH24..ST |
1 | ||
| 77001-26270 |
RH24..ST |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LH24,RH24 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LH24,RH24 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LH24,RH24 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LH24,RH24 |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77276-26020 |
RH24 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-26090 |
RH24 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
LH24,RH24 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26062 |
RH24 |
1 | ||
| 77251-26063 |
RH24 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH24 *H,L=180 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH24 *H,L=110 |
1 | ||
| 95332-06020 |
RH24 *H,L=200 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77262-26110 |
RH24 |
1 | ||
| 77262-26111 |
RH24 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77209-26010 |
RH24 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 65640-95600 |
LH24,RH24..T1 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 65640-95600 |
LH24,RH24..T1 |
1 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-23186 |
LH24,RH24..T1 |
1 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-23186 |
LH24,RH24..T1 |
1 | ||
| 77324 - SPRING, FUEL TANK CAP | ||||
| 77324-12011 |
LH24,RH24 |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-25010 |
LH24,RH24 |
2 | ||
| 77603-26011 |
LH24,RH24 |
2 | ||
| 77603-28010 |
LH24,RH24 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-25090 |
LH24,RH24 |
2 | ||
| 77601-26040 |
LH24,RH24 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
LH24,RH24 |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-28011 |
LH24,RH24 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-26040 |
LH24,RH24 |
2 | ||
| 77651-25050 |
LH24,RH24 |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-26020 |
RH24 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
RH24 *H,L=600,ﾏｰｸ=#* |
1 | ||
| 95411-19995 |
RH24 *H,L=650,ﾏｰｸ=#* |
1 | ||
| Common parts | ||||
| 90179-10016 | ||||
| 90461-08774 | ||||
| 90464-00020 | ||||
| 90467-12058 | ||||
| 91611-40616 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-41025 | ||||
| 91651-40616 | ||||
| 91666-40616 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
