RH24-JR (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

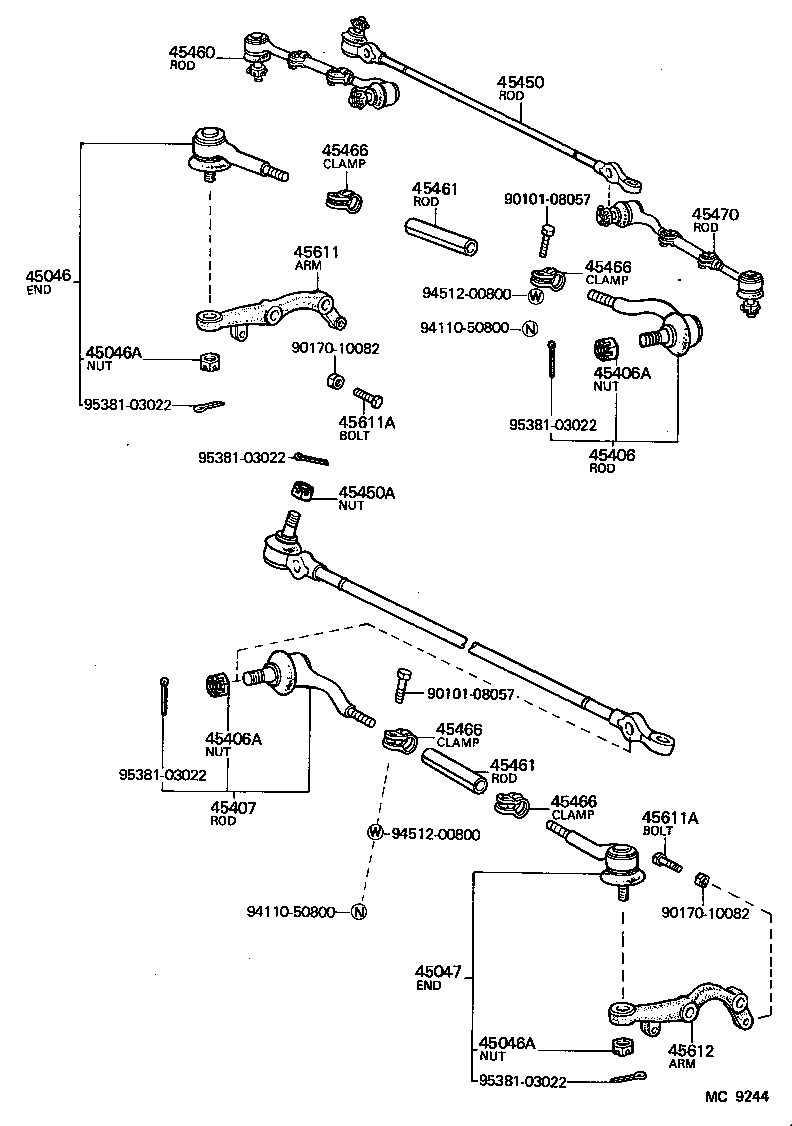

ILLUST NO. 1 OF 2(8211- )

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45406 45406A 45406A 45407 45450 45450A 45460 45461 45461 45466 45466 45466 45466 45470 45611 45611A 45611A 45612 9010108057 9010108057 9017010082 9017010082 9411050800 9411050800 9451200800 9451200800 9538103022 9538103022 9538103022 9538103022 9538103022
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-29105

LH24,RH24

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LH24,RH24

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LH24,RH24

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29105

LH24,RH24

 1
45406 - ROD SUB-ASSY, TIE, RH
45406-29095

LH24,RH24

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

LH24,RH24

 2
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

LH24,RH24

 2
45407 - ROD SUB-ASSY, TIE, LH
45406-29095

LH24,RH24

 1
45450 - ROD ASSY, STEERING RELAY
45450-29065

LH24,RH24

 1
45450A - NUT, CASTLE(FOR RELAY ROD)
90171-14042

LH24,RH24

 1
45460 - ROD ASSY, TIE, RH
45460-29185

LH24,RH24

 1
45461 - ROD, STEERING TIE
45465-26010

LH24,RH24

 2
45461 - ROD, STEERING TIE
45465-26010

LH24,RH24

 2
45466 - CLAMP, TIE ROD END
45466-30020

LH24,RH24

 4
45466 - CLAMP, TIE ROD END
45466-30020

LH24,RH24

 4
45466 - CLAMP, TIE ROD END
45466-30020

LH24,RH24

 4
45466 - CLAMP, TIE ROD END
45466-30020

LH24,RH24

 4
45470 - ROD ASSY, TIE, LH
45460-29185

LH24,RH24

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-26020

LH24,RH24

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10006

LH24,RH24

 4
45611A - BOLT, KNUCKLE STOPPER
90106-10006

LH24,RH24

 4
45612 - ARM, STEERING KNUCKLE, LH
45612-26020

LH24,RH24

 1
Common parts
90101-08057
90170-10082
94110-50800
94512-00800
95381-03022

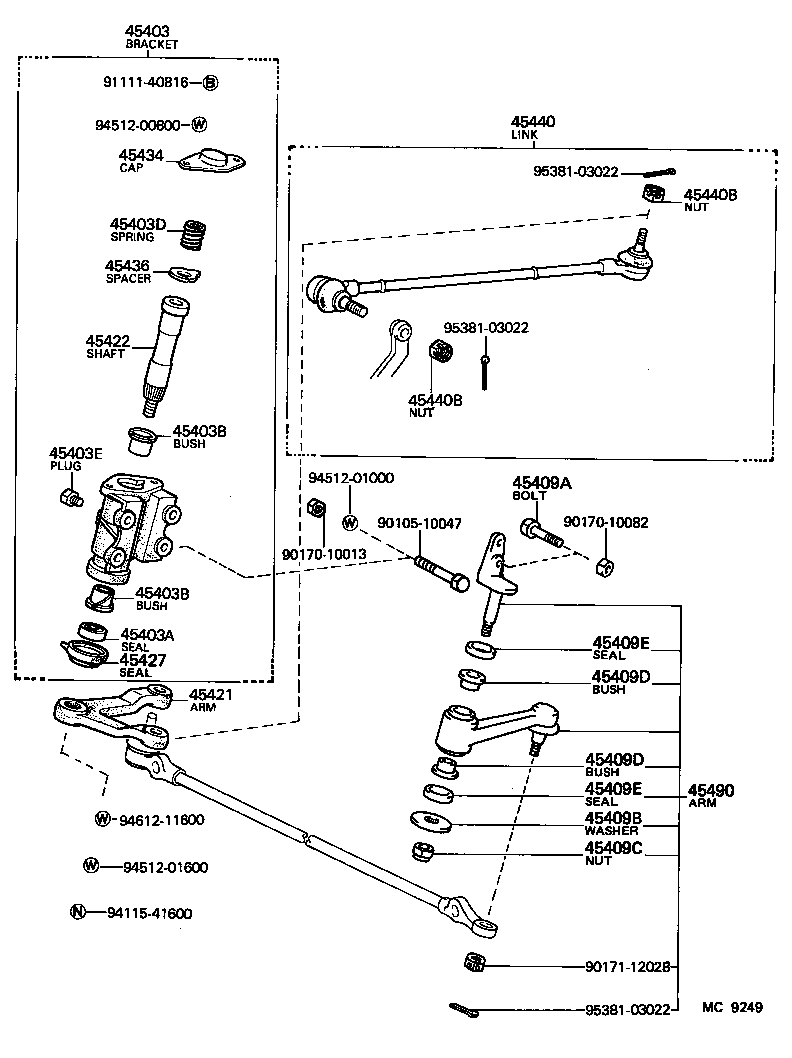

ILLUST NO. 2 OF 2(8211- )

Click highlighted areas on diagram

diagram 45403 45403A 45403B 45403B 45403D 45403E 45409A 45409B 45409C 45409D 45409D 45409E 45409E 45421 45422 45427 45434 45436 45440 45440B 45440B 45490 9010510047 9017010013 9017010082 9017112028 9111140816 9411541600 9451200800 9451201000 9451201600 9461211600 9538103022 9538103022 9538103022
Part # Description Qty Price
45403 - BRACKET SUB-ASSY, CENTER ARM
45403-26031

LH24,RH24

 1
45403A - SEAL, OIL(FOR CENTER ARM BRACKET)
90311-25004

LH24,RH24

 1
45403B - BUSH(FOR CENTER ARM BRACKET)
90386-25075

LH24,RH24

 2
45403B - BUSH(FOR CENTER ARM BRACKET)
90386-25075

LH24,RH24

 2
45403D - SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET)
90501-30369

LH24,RH24

 1
45403E - PLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT)
90345-06014

LH24,RH24

 1
45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
91121-71080

LH24,RH24

 2
45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH)
90201-14519

LH24,RH24

 1
45409C - NUT(FOR IDLER ARM SUPPORT)
94182-11400

LH24,RH24

 1
45409D - BUSH(FOR IDLER ARM)
90385-18068

LH24,RH24

 2
45409D - BUSH(FOR IDLER ARM)
90385-18068

LH24,RH24

 2
45409E - SEAL, DUST(FOR IDLER ARM SUPPORT)
90304-31012

LH24,RH24

 2
45409E - SEAL, DUST(FOR IDLER ARM SUPPORT)
90304-31012

LH24,RH24

 2
45421 - ARM, STEERING CENTER
45421-26030

LH24,RH24

 1
45422 - SHAFT, CENTER ARM
45422-26010

LH24,RH24

 1
45427 - SEAL, CENTER ARM DUST, LOWER
45427-28010

LH24,RH24

 1
45434 - CAP, CENTER ARM BRACKET
45434-26011

LH24,RH24

 1
45436 - SEAT, CENTER ARM SHAFT
45436-26010

LH24,RH24

 1
45440 - LINK ASSY, STEERING DRAG
45440-29115

LH24,RH24

 1
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-14042

LH24,RH24

 2
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-14042

LH24,RH24

 2
45490 - ARM ASSY, STEERING IDLER
45490-29236

LH24,RH24

 1
Common parts
90105-10047
90170-10013
90170-10082
90171-12028
91111-40816
94115-41600
94512-00800
94512-01000
94512-01600
94612-11600
95381-03022
