RH24-JR (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )12RJ

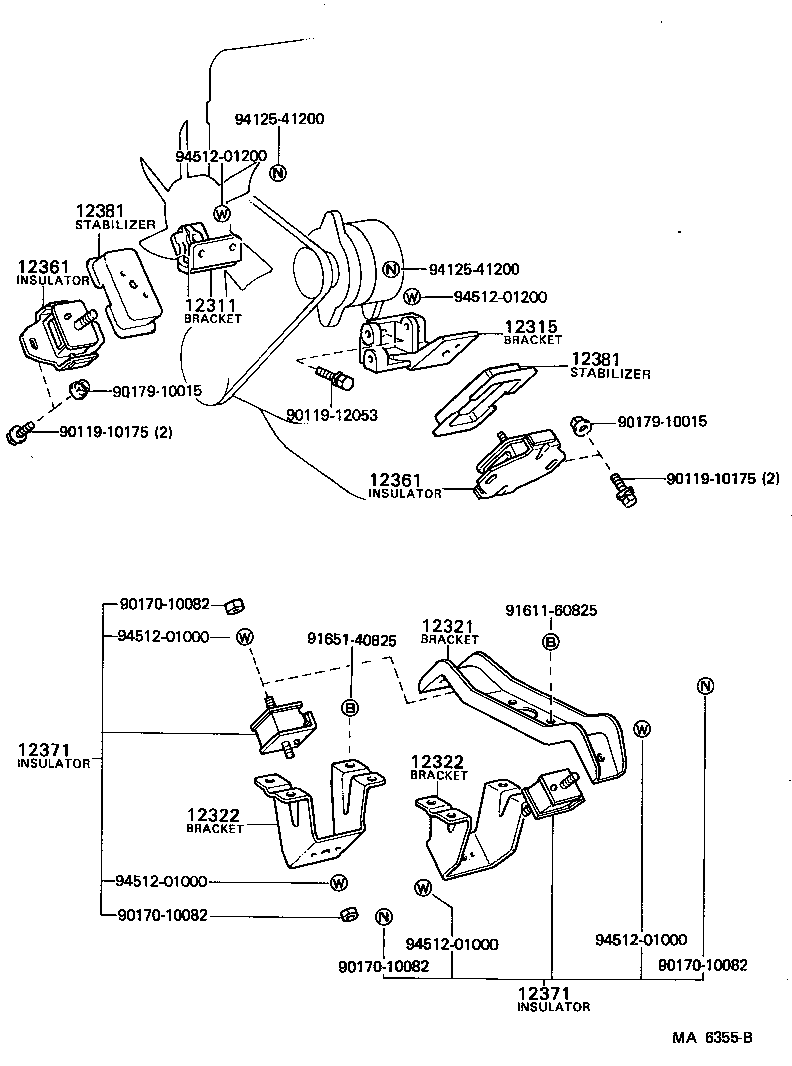

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12322 12361 12361 12371 12371 12381 12381 9011910175 9011910175 9011912053 9017010082 9017010082 9017010082 9017010082 9017910015 9017910015 9161160825 9165140825 9412541200 9412541200 9451201000 9451201000 9451201000 9451201000 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-30010

12RJ..RH24

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31011

12RJ..RH24

30A ALTERNATOR

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-31020

12RJ..RH24

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54010

12RJ..RH24

 2
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54010

12RJ..RH24

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12RJ..RH24

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31070

12RJ..RH24

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-39025

12RJ..RH24

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-39025

12RJ..RH24

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-31031

12RJ..RH24

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-31031

12RJ..RH24

 2
Common parts
90119-10175
90119-12053
90170-10082
90179-10015
91611-60825
91651-40825
94125-41200
94512-01000
94512-01200
