RH24-JDLT3 (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

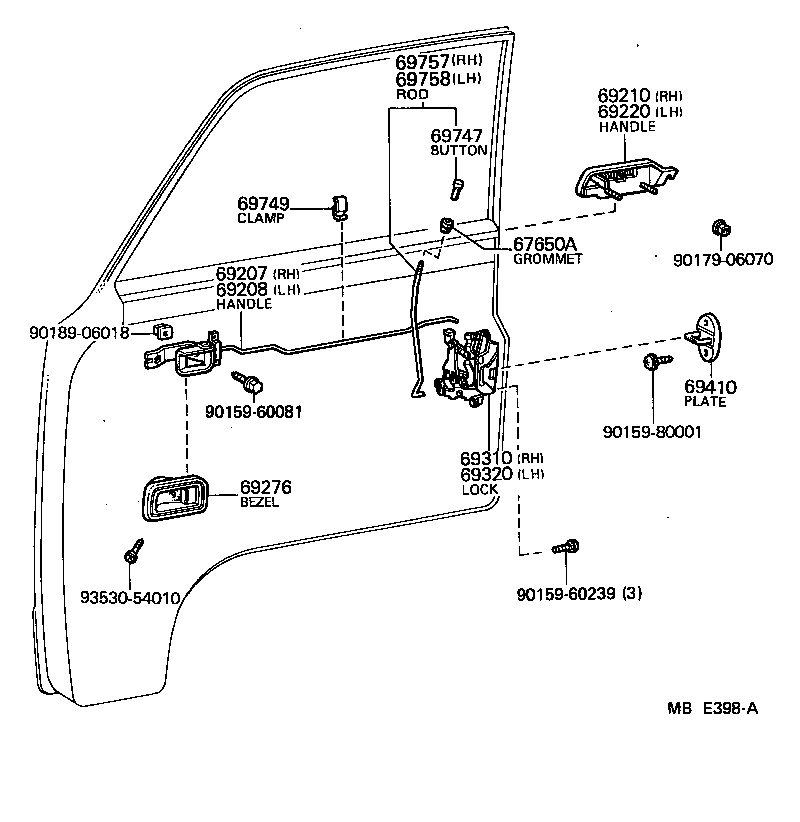

Click highlighted areas on diagram

diagram 67650A 69207 69208 69210 69220 69276 69310 69320 69410 69747 69749 69757 69758 9015960081 9015960239 9015980001 9017906070 9018906018 9353054010
Part # Description Qty Price
67650A - GROMMET(FOR DOOR PANEL LOCK BUTTON)
90480-10102

LH24,RH24

 2
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69710-95A03

LH24,RH24

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69720-95A03

LH24,RH24

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-95A00

LH24,RH24

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-95A00

LH24,RH24

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-1001201

LH24,RH24

BLACK

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-95A00

LH24,RH24

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-95A00

LH24,RH24

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22020

LH24,RH24

 2
69747 - BUTTON, DOOR LOCKING
69747-2002001

LH24,RH24

BLACK

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-30020

LH24,RH24

 4
69757 - ROD, FRONT DOOR LOCKING CONTROL, NO.2 RH
69705-95A00

LH24,RH24

 1
69758 - ROD, FRONT DOOR LOCKING CONTROL, NO.2 LH
69706-95A00

LH24,RH24

 1
Common parts
90159-60081
90159-60239
90159-80001
90179-06070
90189-06018
93530-54010
