RH24-JDLT3 (1982)
Toyota Hiace Truck
Production
Nov 1982
-
Jul 1985
Engine
12RJ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )

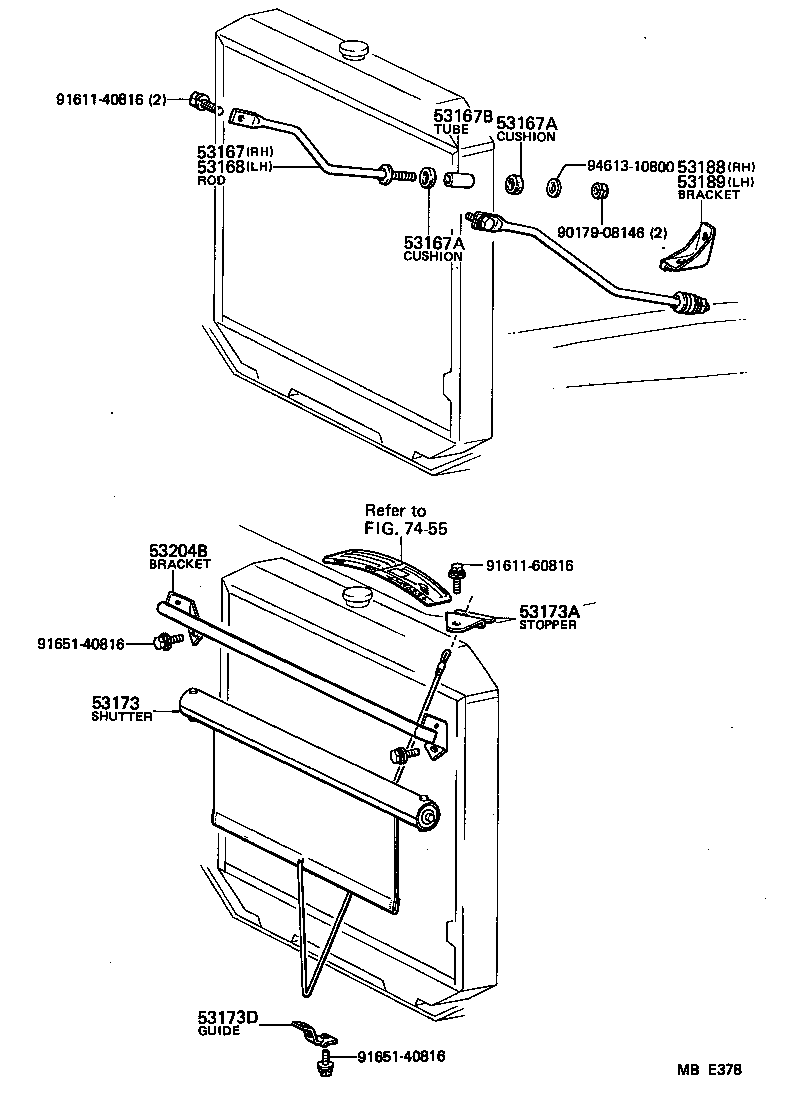

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53167 - ROD, RADIATOR BRACE, RH | ||||
| 53167-26032 |
LH24,RH24 |
1 | ||
| 53167A - CUSHION(FOR RADIATOR BRACE ROD) | ||||
| 90540-10022 |
LH24,RH24 |
4 | ||
| 53167A - CUSHION(FOR RADIATOR BRACE ROD) | ||||
| 90540-10022 |
LH24,RH24 |
4 | ||
| 53167B - TUBE(FOR RADIATOR BRACE ROD) | ||||
| 90440-11043 |
LH24,RH24 |
2 | ||
| 53168 - ROD, RADIATOR BRACE, LH | ||||
| 53169-26010 |
RH24 |
1 | ||
| 53188 - BRACKET, RADIATOR BRACE ROD, RH | ||||
| 53168-26010 |
LH24,RH24 |
1 | ||
| 53189 - BRACKET, RADIATOR BRACE ROD, LH | ||||
| 53168-26010 |
RH24 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-40816 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 7455 | ||||
