RH24-JDLT3 (1982)
Toyota Hiace Truck
Production
Nov 1982
-
Jul 1985
Engine
12RJ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

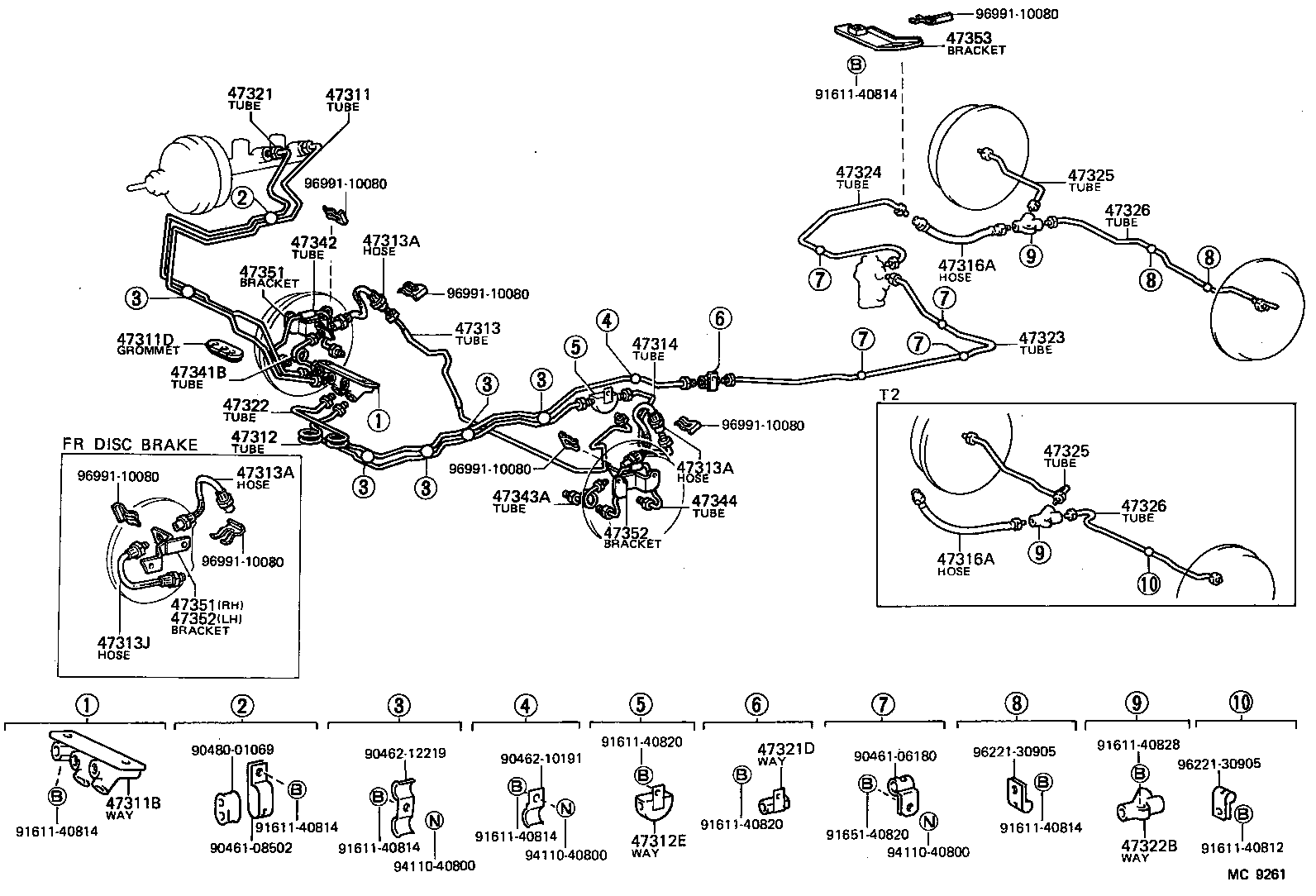

ILLUST NO. 1 OF 2(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26150 |
LH24,RH24 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10028 |
LH24,RH24 |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-01030 |
LH24,RH24 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26160 |
LH24,RH24 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10146 |
LH24,RH24 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26080 |
LH24,RH24 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH24,RH24 FR DRUM BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH24,RH24 FR DRUM BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02350 |
LH24,RH24 FR DRUM BRAKE |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26070 |
LH24,RH24 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96910-34205 |
LH24,RH24..WT |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96910-34205 |
LH24,RH24..WT |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26060 |
LH24,RH24 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10006 |
LH24,RH24 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26080 |
LH24,RH24 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
LH24,RH24 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26120 |
LH24,RH24 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26060 |
LH24,RH24 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26060 |
LH24,RH24..WT |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26060 |
LH24,RH24..WT |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26040 |
LH24,RH24..WT |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26040 |
LH24,RH24..WT |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-26020 |
LH24,RH24 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-26010 |
LH24,RH24 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-26010 |
LH24,RH24 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-26010 |
LH24,RH24 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26030 |
LH24,RH24 FR DRUM BRAKE |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26030 |
LH24,RH24 FR DRUM BRAKE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26030 |
LH24,RH24 FR DRUM BRAKE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26030 |
LH24,RH24 FR DRUM BRAKE |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47355-26030 |
LH24,RH24 |
1 | ||
| Common parts | ||||
| 90461-06180 | ||||
| 90461-08502 | ||||
| 90462-10191 | ||||
| 90462-12219 | ||||
| 90480-01069 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91611-40820 | ||||
| 91611-40828 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 96221-30905 | ||||
| 96991-10080 | ||||

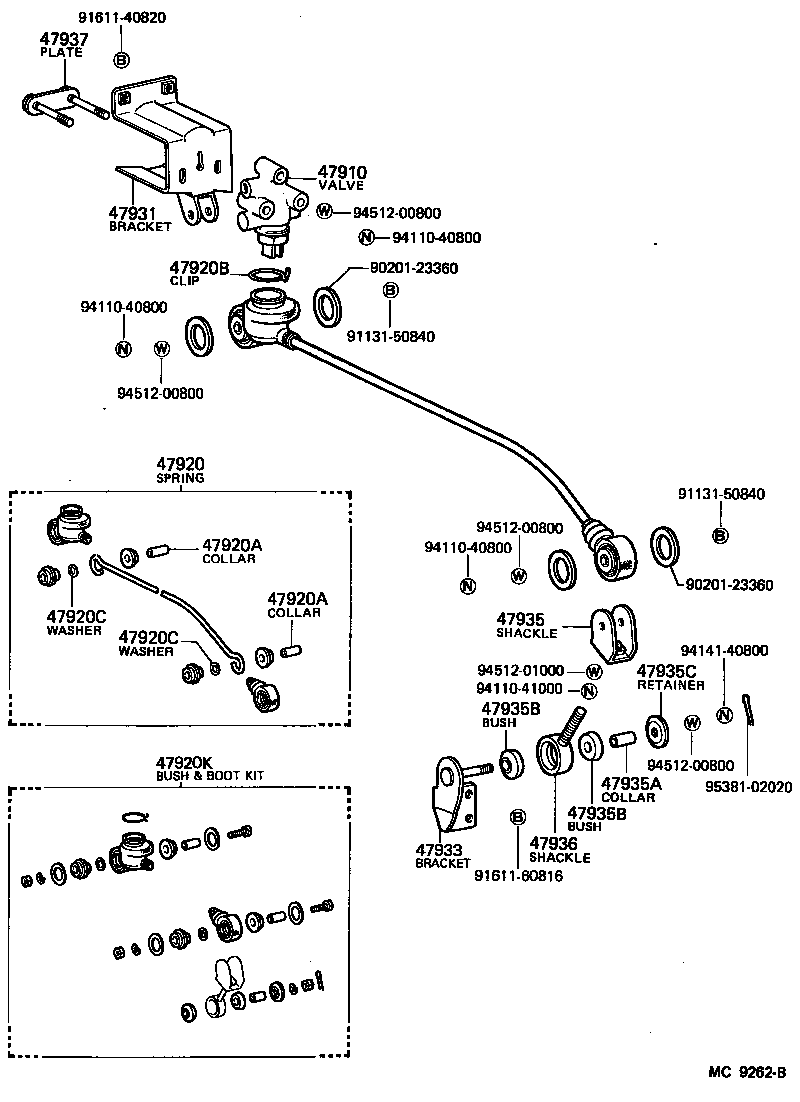

ILLUST NO. 2 OF 2(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26030 |
LH24,RH24 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-26030 |
LH24,RH24 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LH24,RH24 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LH24,RH24 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LH24,RH24 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LH24,RH24 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LH24,RH24 |
2 | ||
| 47920K - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
LH24,RH24 |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-26040 |
LH24,RH24 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-26030 |
LH24,RH24 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-26010 |
LH24,RH24 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LH24,RH24 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LH24,RH24 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LH24,RH24 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
LH24,RH24 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-26010 |
LH24,RH24 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
LH24,RH24 |
1 | ||
| Common parts | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-40820 | ||||
| 91611-60816 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
