RH24-JDLT3 (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

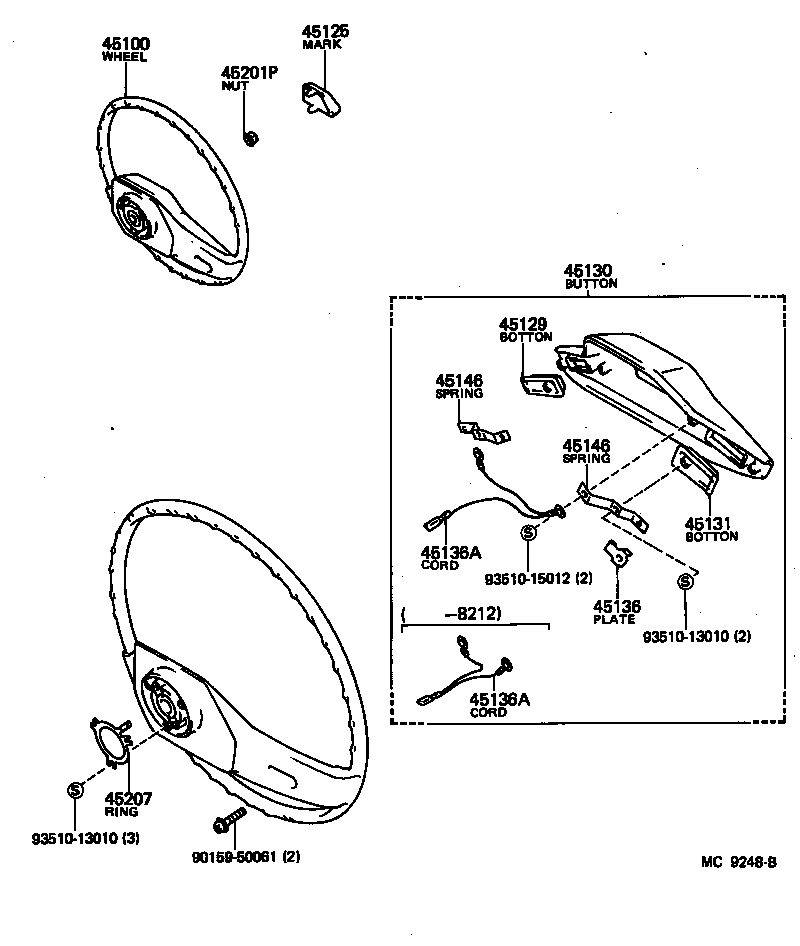

Click highlighted areas on diagram

diagram 45100 45125 45129 45130 45131 45136 45136A 45136A 45146 45146 45201P 45207 9015950061 9351013010 9351013010 9351015012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2608001

LH24,RH24

BLACK

 1
45125 - MARK, STEERING WHEEL PAD
45125-2605001

LH24,RH24

BLACK

 1
45129 - BUTTON, HORN, NO.2
45131-26030

LH24,RH24

 1
45130 - BUTTON ASSY, HORN
45130-2606001

LH24,RH24

BLACK

 1
45131 - BUTTON, HORN, NO.1
45129-26020

LH24,RH24

 1
45131-26030

LH24,RH24

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

LH24,RH24

 2
45136A - CORD(FOR HORN CONTACT RING)
90945-02013

LH24,RH24

 1
90945-02068

LH24,RH24

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02013

LH24,RH24

 1
90945-02068

LH24,RH24

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-26020

LH24,RH24

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-26020

LH24,RH24

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

LH24,RH24

 1
45207 - RING, HORN CONTACT
45176-30070

LH24,RH24

 1
Common parts
90159-50061
93510-13010
93510-15012
