RH24-JDLT (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

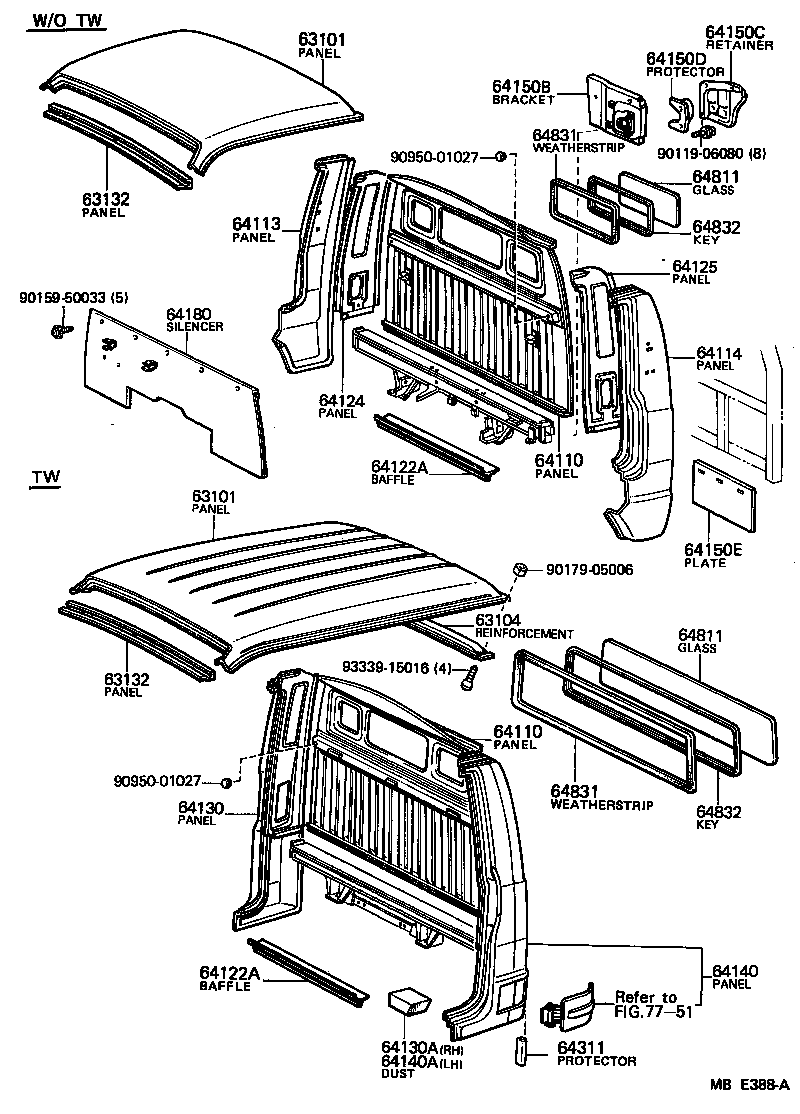

Click highlighted areas on diagram

diagram 63101 63101 63104 63132 63132 64110 64110 64113 64114 64122A 64122A 64124 64125 64130 64130A 64140 64140A 64150B 64150C 64150D 64150E 64180 64311 64811 64811 64831 64831 64832 64832 7751 9011906080 9015950033 9017905006 9095001027 9095001027 9333915016
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-95A03

LH24,RH24..03S

 1
63101 - PANEL SUB-ASSY, ROOF
63111-95A03

LH24,RH24..03S

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63103-95A01

LH24,RH24

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63103-95A01

LH24,RH24

 1
64110 - PANEL ASSY, FRONT BODY BACK
64101-95A00

RH24..03S

 1
64110 - PANEL ASSY, FRONT BODY BACK
64101-95A00

RH24..03S

 1
64113 - PANEL, BACK CORNER, OUTER RH
64103-95A00

LH24,RH24..03S

 1
64114 - PANEL, BACK CORNER, OUTER LH
64104-95A05

LH24,RH24..03S

 1
64122A - BAFFLE, DUST REAR BODY
64122-95A01

LH24,RH24..(T2,T3)..TS

 1
64122A - BAFFLE, DUST REAR BODY
64122-95A01

LH24,RH24..(T2,T3)..TS

 1
64124 - PANEL, BACK CORNER, INSIDE, RH
64107-95A02

LH24,RH24..03S

 1
64125 - PANEL, BACK CORNER, INSIDE, LH
64108-95A02

LH24,RH24..03S

 1
64811 - GLASS, BACK WINDOW
64811-95015

LH24,RH24..03S

*TEM,厚さ=4.0

 1
64811 - GLASS, BACK WINDOW
64811-95015

LH24,RH24..03S

*TEM,厚さ=4.0

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95015

LH24,RH24..03S

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95015

LH24,RH24..03S

 1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95010

LH24,RH24..03S

 1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95010

LH24,RH24..03S

 1
Common parts
90119-06080
90159-50033
90179-05006
90950-01027
93339-15016
Linked diagrams
7751
