RH24-JDB (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

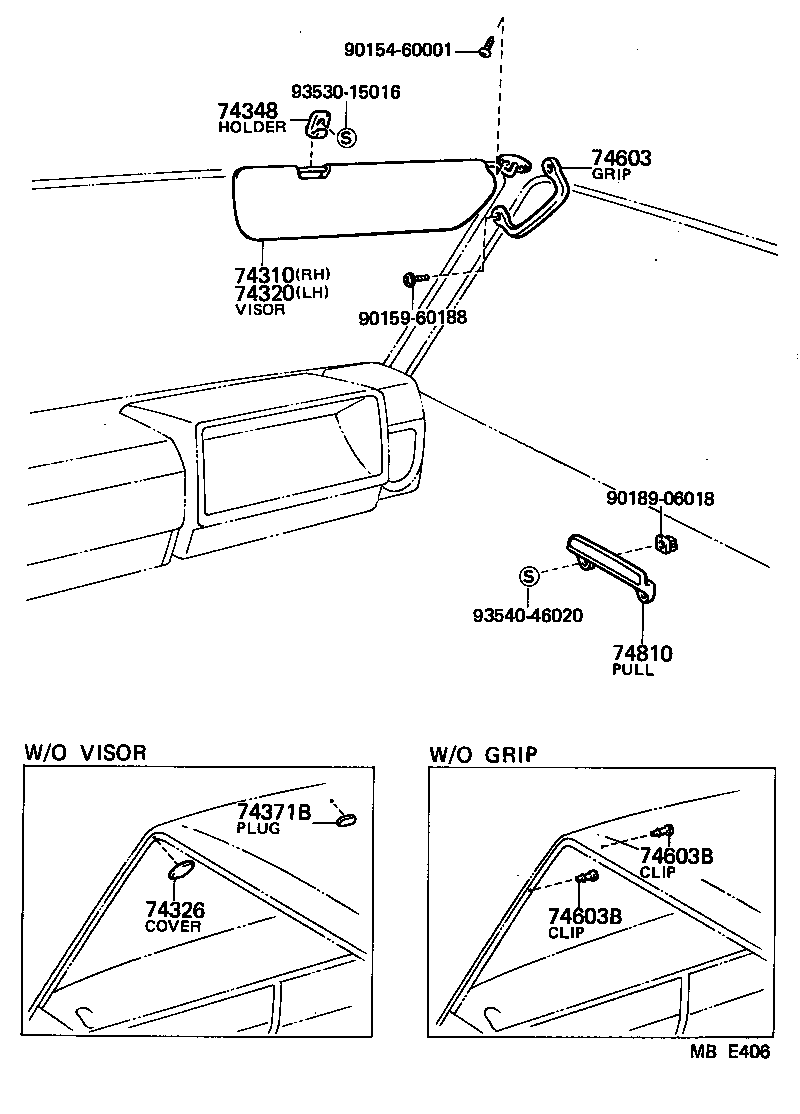

Click highlighted areas on diagram

diagram 74310 74320 74326 74348 74371B 74603 74603B 74603B 74810 9015460001 9015960188 9018906018 9353015016 9354046020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-95A21

LH24,RH24..DLX

 1
74320 - VISOR ASSY, LH
74320-95A19

LH24,RH24..DLX

 1
74348 - HOLDER, VISOR
74348-95A06

LH24,RH24

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74620-95A06

LH24,RH24

 2
74603B - CLIP (FOR ASSIST GRIP)
90034-80031

LH24,RH24

 4
74603B - CLIP (FOR ASSIST GRIP)
90034-80031

LH24,RH24

 4
74810 - PULL ASSY, DOOR, INSIDE
69151-95600

LH24,RH24

 4
Common parts
90154-60001
90159-60188
90189-06018
93530-15016
93540-46020
