RH24-JDB (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )TS

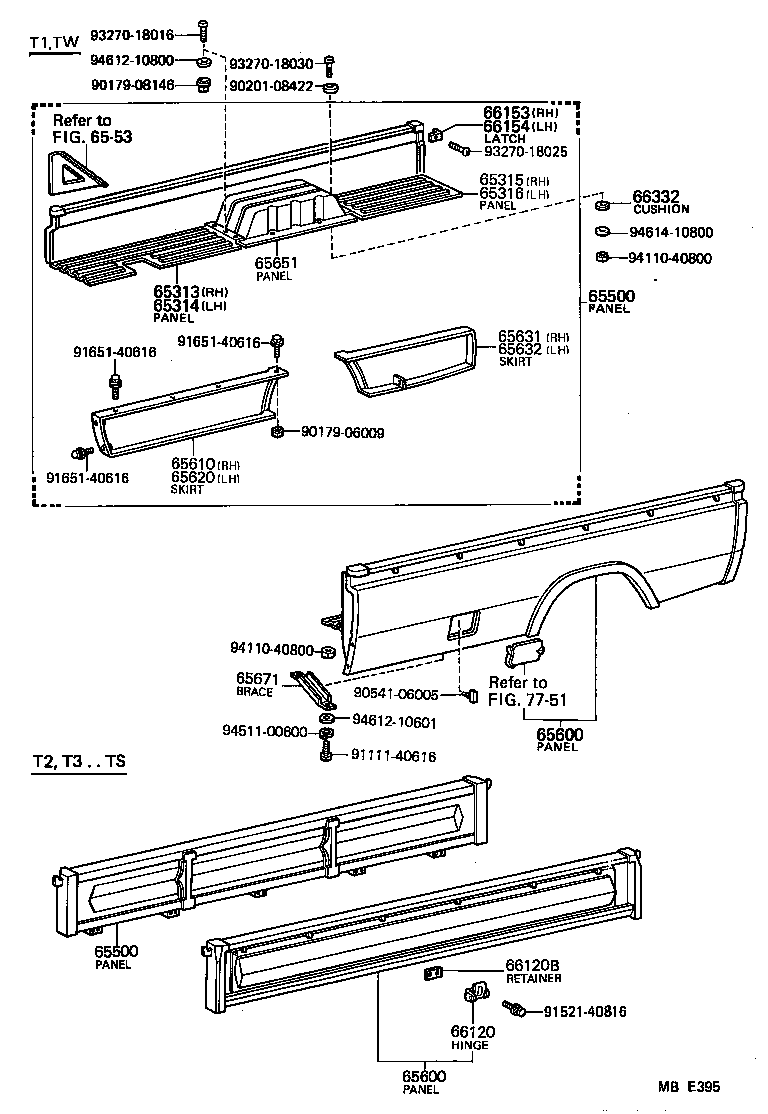

Click highlighted areas on diagram

diagram 65313 65314 65315 65316 65500 65500 6553 65600 65600 65610 65620 65631 65632 65651 65671 66120 66120B 66153 66154 66332 7751 9017906009 9017908146 9020108422 9054106005 9111140616 9152140816 9165140616 9165140616 9165140616 9327018016 9327018025 9327018030 9411040800 9411040800 9451100600 9461210601 9461210800 9461410800
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95A07

LH24,RH24..(T2,T3)..TS

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95A07

LH24,RH24..(T2,T3)..TS

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95A06

LH24,RH24..(T2,T3)..TS

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95A06

LH24,RH24..(T2,T3)..TS

 1
66120 - HINGE ASSY, SIDE GATE
66110-95018

LH24,RH24..(T2,T3)..TS

 10
66120B - RETAINER, SIDE GATE HINGE, LOWER
66115-95012

LH24,RH24..(T2,T3)..TS

 10
Common parts
90179-06009
90179-08146
90201-08422
90541-06005
91111-40616
91521-40816
91651-40616
93270-18016
93270-18025
93270-18030
94110-40800
94511-00600
94612-10601
94612-10800
94614-10800
Linked diagrams
6553
7751
