RH24-JD3 (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

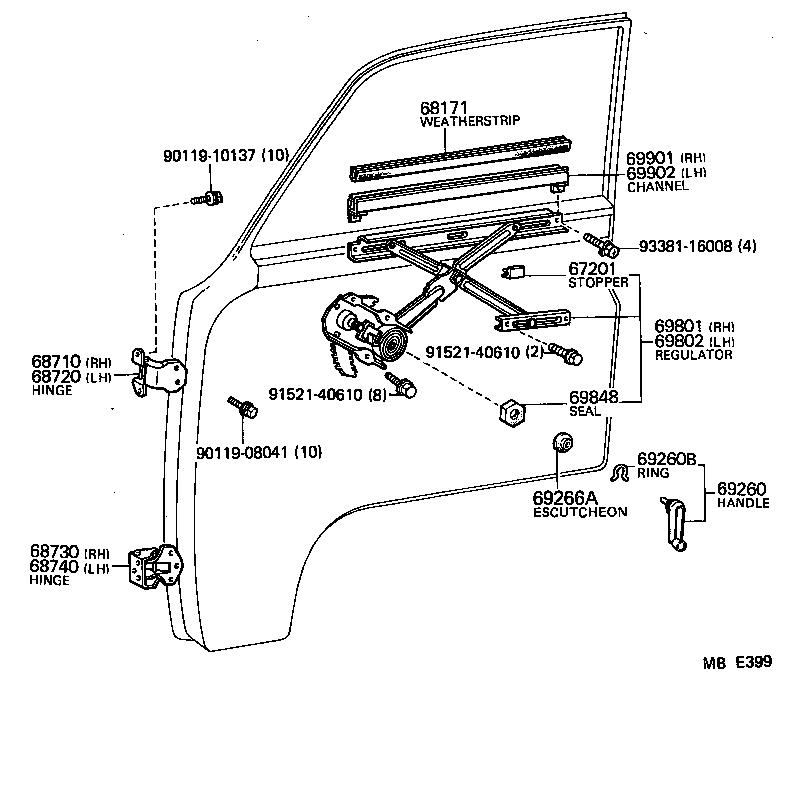

Click highlighted areas on diagram

diagram 67201 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69802 69848 69901 69902 9011908041 9011910137 9152140610 9152140610 9338116008
Part # Description Qty Price
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
69982-95700

LH24,RH24

 2
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
69981-95701

LH24,RH24

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12060

LH24,RH24

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12060

LH24,RH24

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20060

LH24,RH24

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20060

LH24,RH24

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004001

LH24,RH24

BLACK

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

LH24,RH24

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69272-30010

LH24,RH24

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95A00

LH24,RH24

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95A00

LH24,RH24

 1
69848 - SEAL, WINDOW REGULATOR HOLE
69848-30010

LH24,RH24

 2
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-95701

LH24,RH24

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-95701

LH24,RH24

 1
Common parts
90119-08041
90119-10137
91521-40610
93381-16008
