RH24-JD (1982)

Toyota Hiace Truck

Production Nov 1982 - Jul 1985
Engine 12RJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )RH24

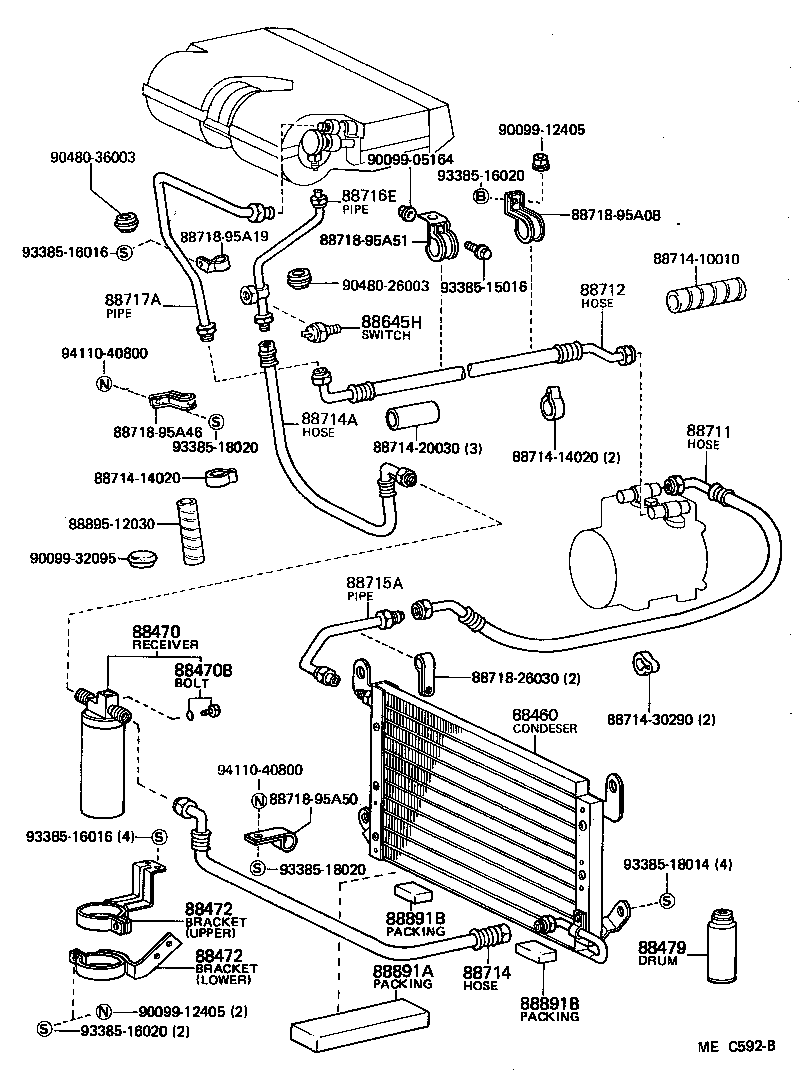

Click highlighted areas on diagram

diagram 88460 88470 88470B 88472 88472 88479 88645H 88711 88712 88714 8871410010 8871414020 8871414020 8871420030 8871430290 88714A 88715A 88716E 88717A 8871826030 8871895A08 8871895A19 8871895A46 8871895A50 8871895A51 88891A 88891B 88891B 8889512030 9009905164 9009912405 9009912405 9009932095 9048026003 9048036003 9338515016 9338516016 9338516016 9338516020 9338516020 9338518014 9338518020 9338518020 9411040800 9411040800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95A00

RH24

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070

LH24,RH24

 1
88470B - BOLT, FUSE
90099-04579

LH24,RH24

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95A02

RH24

LWR

 1
88472-95A01

RH24

UPR

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95A02

RH24

LWR

 1
88472-95A01

RH24

UPR

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

LH24,RH24

400G

 2
88645H - SWITCH, PRESSURE NO.1
88645-22020

LH24,RH24

TOKAIRIKA

 1
88645-30250

LH24,RH24

FUJIKOKI

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95A02

RH24

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95A02

RH24

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95A00

RH24

 1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-87302

RH24

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95A01

RH24

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95A30

RH24

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95A15

RH24

 1
88891A - PACKING A (FOR COOLER)
88578-95A05

RH24

 1
88891B - PACKING B (FOR COOLER)
88578-95A06

RH24

 2
88891B - PACKING B (FOR COOLER)
88578-95A06

RH24

 2
Common parts
88714-10010
88714-14020
88714-20030
88714-30290
88718-26030
88718-95A08
88718-95A19
88718-95A46
88718-95A50
88718-95A51
88895-12030
90099-05164
90099-12405
90099-32095
90480-26003
90480-36003
93385-15016
93385-16016
93385-16020
93385-18014
93385-18020
94110-40800
