LY161-TLMBS3 (1995)
Toyota Hiace Truck
Production
May 1995
-
Oct 1996
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )T2

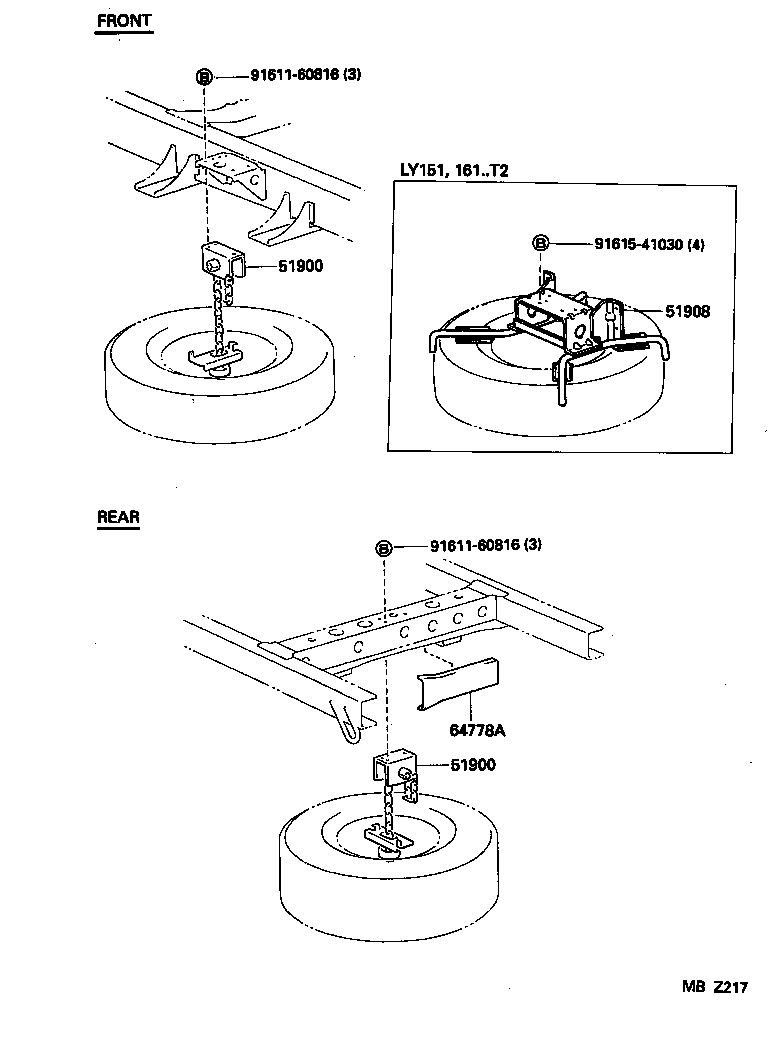

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-26080 |
LY151,161..T2 ﾘﾔ |
1 | ||
| 51900-35101 |
LY151,161..T2 ﾌﾛﾝﾄ |
1 | ||
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-26080 |
LY151,161..T2 ﾘﾔ |
1 | ||
| 51900-35101 |
LY151,161..T2 ﾌﾛﾝﾄ |
1 | ||
| 51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51908-26040 |
LY151,161..T2 |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-26010 |
LY101,111,151,161,YY101 |
4 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91615-41030 | ||||
