LY161-TBMBS3 (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY151,161

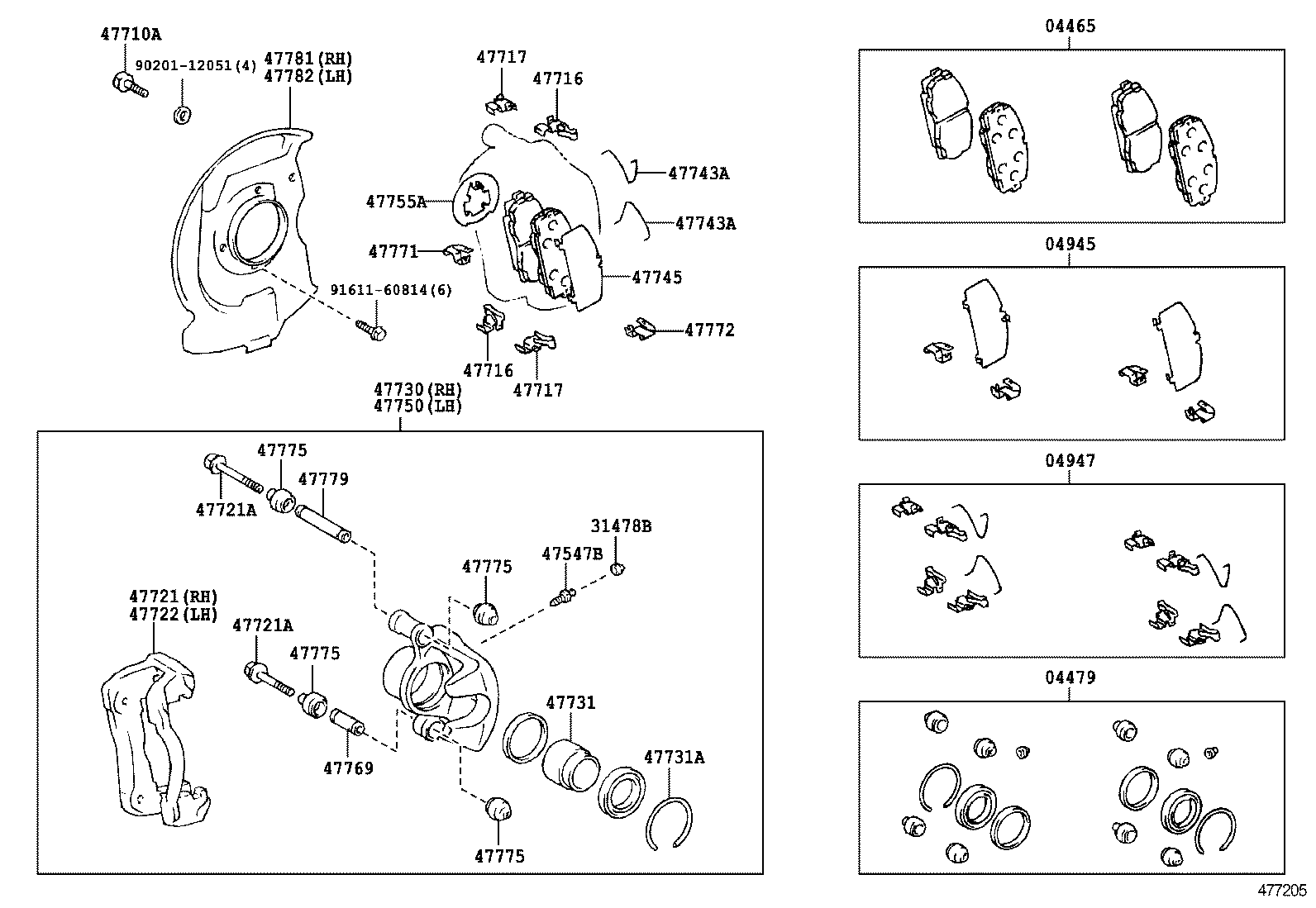

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731A 47743A 47743A 47745 47750 47755A 47769 47771 47772 47775 47775 47775 47775 47779 47781 47782 9020112051 9161160814
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-26090

LY151,161

ﾏｰｸ NBK PD66

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-26030

LY151,161

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-26100

LY151,161

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-26060

LY151,161

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LY101,111,151,161,YY101

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

LY101,111,151,161,YY101

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12149

LY151,161

*12−1.25P−41X20

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26050

LY151,161

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26050

LY151,161

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26020

LY151,161

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26020

LY151,161

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-26070

LY151,161

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10249

LY101,111,151,161,YY101

*10−1.25PX95.5−30,MAIN PIN SIDE

 2
90119-10014

LY101,111,151,161,YY101

*10−1.25PX65.5−30,SUB PIN SIDE

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10249

LY101,111,151,161,YY101

*10−1.25PX95.5−30,MAIN PIN SIDE

 2
90119-10014

LY101,111,151,161,YY101

*10−1.25PX65.5−30,SUB PIN SIDE

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-26070

LY151,161

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-26100

LY151,161

 1
47731 - PISTON, FRONT DISC BRAKE
47731-25010

LY151,161

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-76001

LY151,161

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-26030

LY151,161

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-26030

LY151,161

 4
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-26030

LY151,161

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-26100

LY151,161

 1
47755A - INSULATOR, DISC BRAKE HEAT
47755-25010

LY151,161

 2
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-40010

LY101,111,151,161,YY101

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-26020

LY151,161

 2
47772 - PLATE, PAD WEAR INDICATOR, NO.2
47772-26020

LY151,161

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-26010

LY151,161

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-26010

LY151,161

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-26010

LY151,161

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-26010

LY151,161

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-40010

LY101,111,151,161,YY101

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-26051

LY151,161

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-26051

LY151,161

 1
Common parts
90201-12051
91611-60814
