LY161-PBMAS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9610)

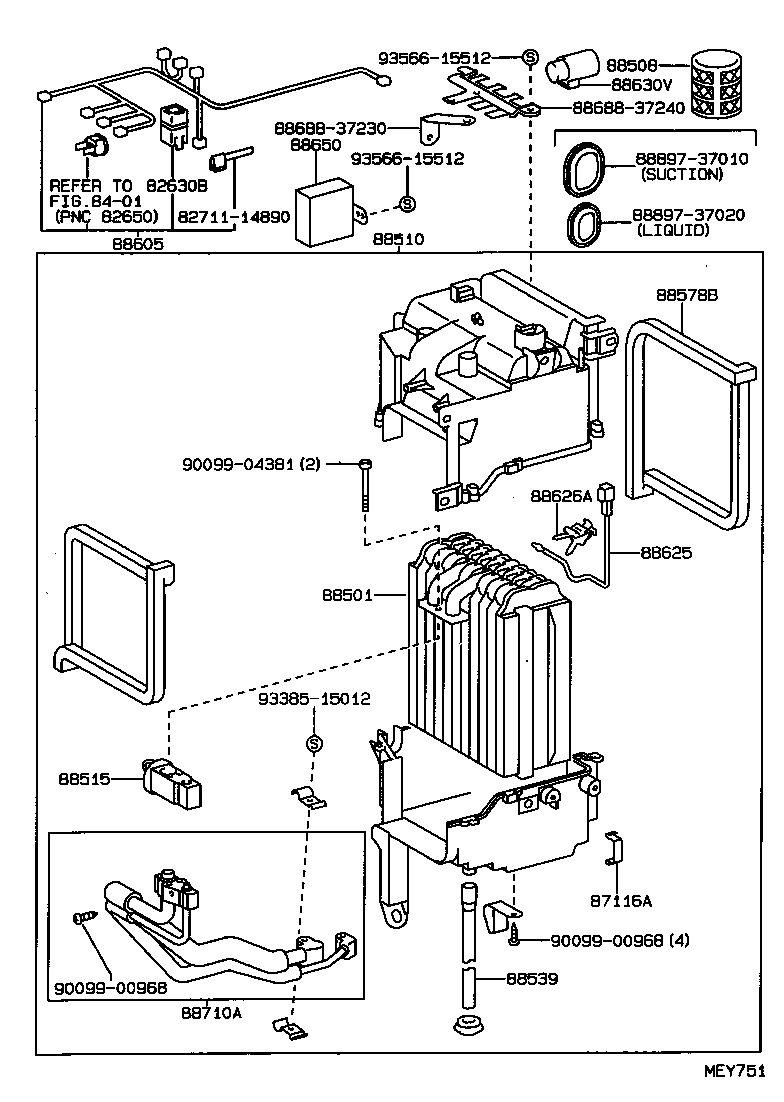

Click highlighted areas on diagram

diagram 82630B 8271114890 8401 87116A 88501 88508 88510 88515 88539 88578B 88605 88625 88626A 88630V 88650 8868837230 8868837240 88710A 8889737010 8889737020 9009900968 9009900968 9009904381 9338515012 9356615512 9356615512
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35020

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-37020

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88510 - UNIT ASSY, COOLER
88510-37050

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26150

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-20470

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-37160

LY101..CBU;LY111,151,161;LY101..ATM..IV

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A020

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88626A - HOLDER, THERMISTOR
88626-28010

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88630V - RELAY ASSY
88630-95702

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 3
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-37060

LY101..CBU;LY111,151,161;LY101..ATM..IV

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37150

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
Common parts
82711-14890
88688-37230
88688-37240
88897-37010
88897-37020
90099-00968
90099-04381
93385-15012
93566-15512
Linked diagrams
8401

(9505-9610)

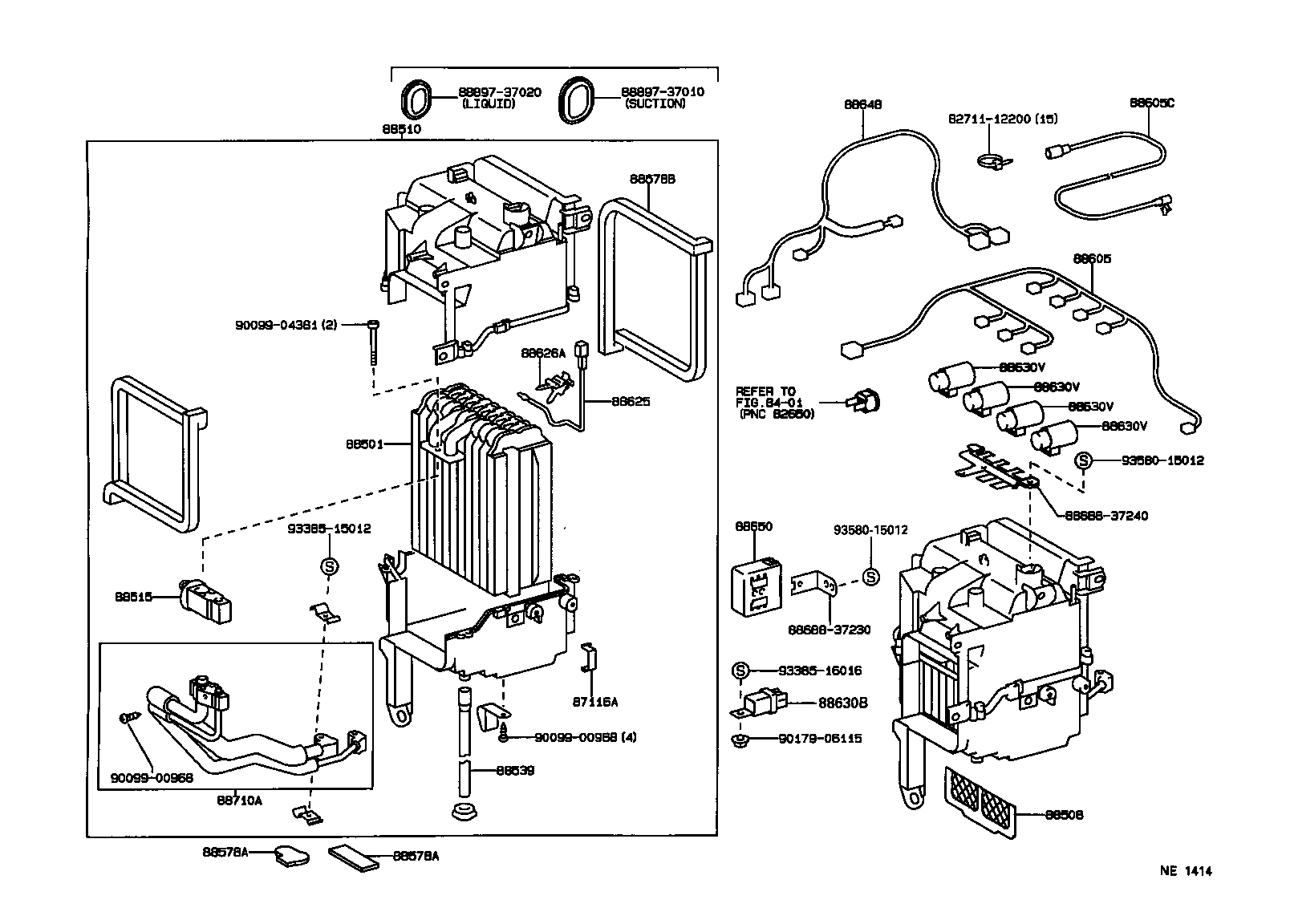

Click highlighted areas on diagram

ﾚｲﾄｳｼﾔ

diagram 8271112200 8401 87116A 88501 88508 88510 88515 88539 88578A 88578A 88578B 88605 88605C 88625 88626A 88630B 88630V 88630V 88630V 88630V 88648 88650 8868837230 8868837240 88710A 8889737010 8889737020 9009900968 9009900968 9009904381 9017906115 9338515012 9338516016 9358015012 9358015012
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35020

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-37020

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88510 - UNIT ASSY, COOLER
88510-37050

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26150

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-20470

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-37160

LY101..CBU;LY111,151,161;LY101..ATM..IV

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A020

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88626A - HOLDER, THERMISTOR
88626-28010

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
88630V - RELAY ASSY
88630-95702

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 3
88630V - RELAY ASSY
88630-95702

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 3
88630V - RELAY ASSY
88630-95702

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 3
88630V - RELAY ASSY
88630-95702

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 3
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-37060

LY101..CBU;LY111,151,161;LY101..ATM..IV

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37150

LY101..CBU;LY101..ATM..IV;LY111,151,161,YY101

 1
Common parts
82711-12200
88688-37230
88688-37240
88897-37010
88897-37020
90099-00968
90099-04381
90179-06115
93385-15012
93385-16016
93580-15012
Linked diagrams
8401
