LY161-PBMAS (1995)
Toyota Hiace Truck

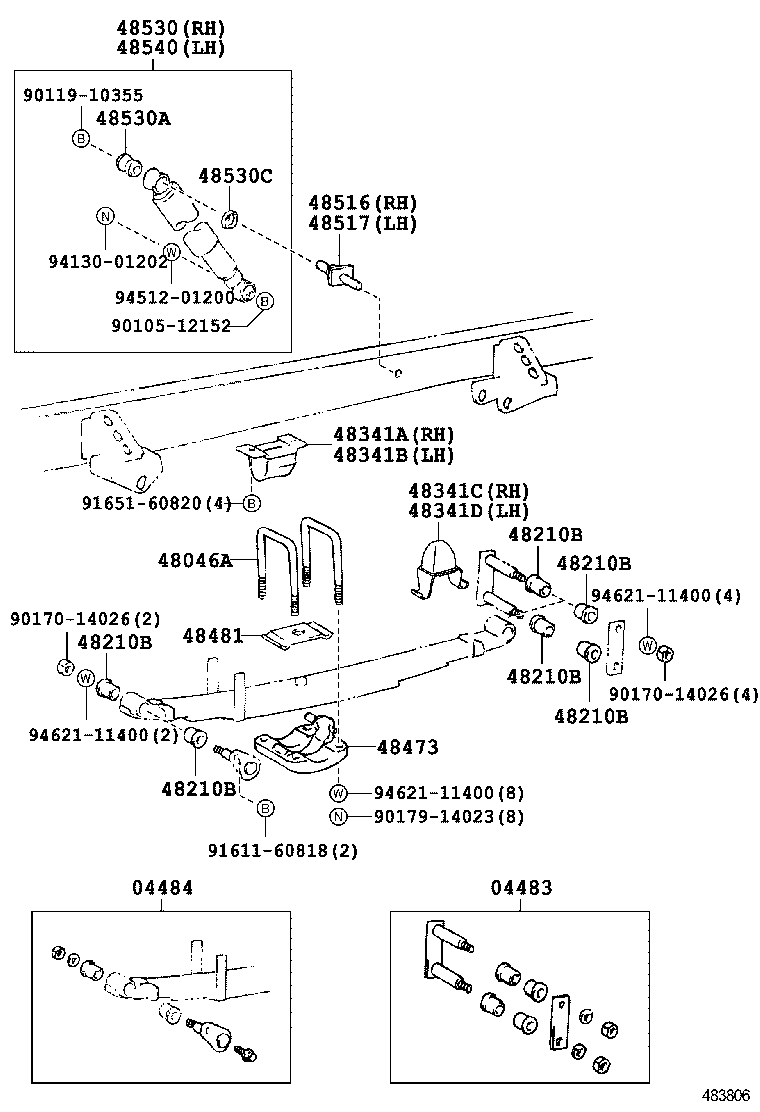

ILLUST NO. 1 OF 2(9505-9607)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26010 |
LY101,111,151,161,YY101 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-26030 |
LY101,111,151,161,YY101 |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14031 |
LY151,161..TW1,TW2;LY101,111,YY101..T1,T3,TW1,TW2 長さ=185 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48341C - BUMPER, REAR SPRING, NO.2 RH | ||||
| 48341-26190 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 48341D - BUMPER, REAR SPRING, NO.2 LH | ||||
| 48341-26190 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48473-26080 |
LY101,111,151,161,YY101 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-26010 |
LY101,111,151,161,YY101 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-26010 |
LY101,111,151,161,YY101 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80450 |
LY151,161..T3,TW1,TW2 ﾏｰｸ 48531−26460 |
1 | ||
| 48531-80491 |
LY151,161..T3,TW1,TW2 ﾏｰｸ 48531−26460 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LY101,111,151,161,YY101 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY101,111,151,161,YY101 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80450 |
LY151,161..T3,TW1,TW2 ﾏｰｸ 48531−26460 |
1 | ||
| 48531-80491 |
LY151,161..T3,TW1,TW2 ﾏｰｸ 48531−26460 |
1 | ||
| Common parts | ||||
| 90105-12152 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 91611-60818 | ||||
| 91651-60820 | ||||
| 94130-01202 | ||||
| 94512-01200 | ||||
| 94621-11400 | ||||

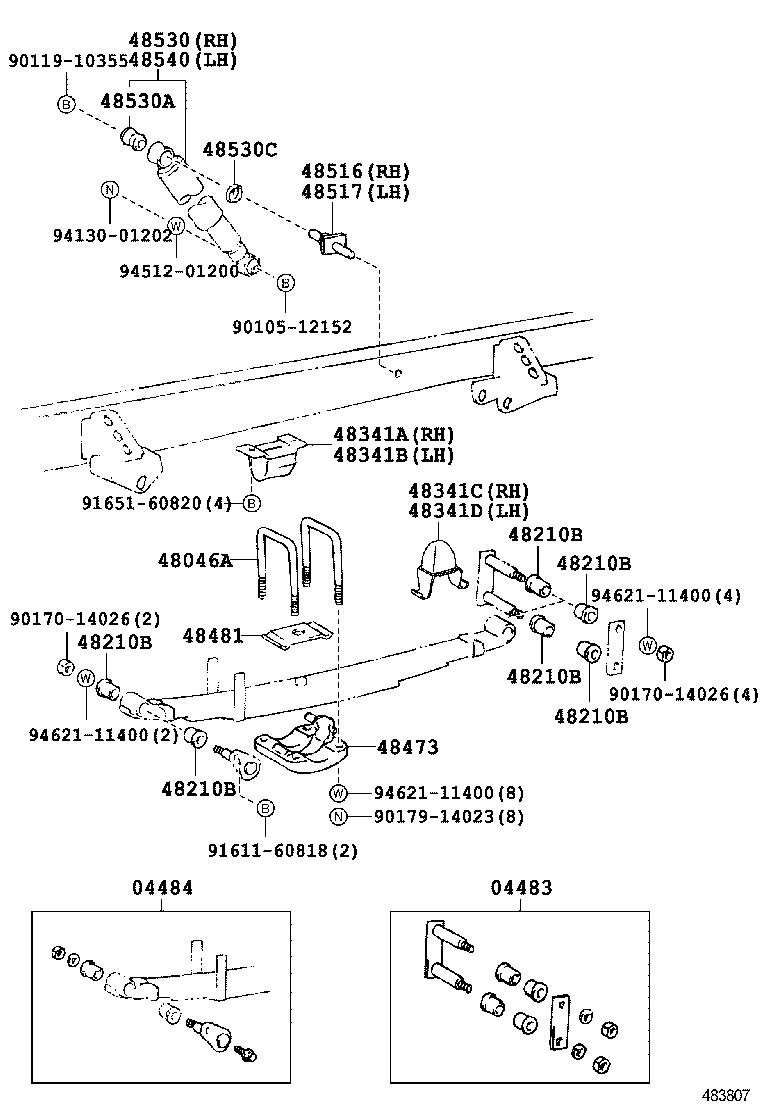

ILLUST NO. 1 OF 2(9607- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26010 |
LY101,111,151,161,YY101 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-26030 |
LY101,111,151,161,YY101 |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14031 |
LY151,161..TW1,TW2;LY101,111,YY101..T1,T3,TW1,TW2 長さ=185 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY101,111,151,161,YY101 |
12 | ||
| 48341C - BUMPER, REAR SPRING, NO.2 RH | ||||
| 48341-26190 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 48341D - BUMPER, REAR SPRING, NO.2 LH | ||||
| 48341-26190 |
LY151,161..T3,TW1,TW2 |
1 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48473-26080 |
LY101,111,151,161,YY101 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-26010 |
LY101,111,151,161,YY101 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-26010 |
LY101,111,151,161,YY101 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80450 |
LY151,161..T3,TW1,TW2 ﾏｰｸ 48531−26460 |
1 | ||
| 48531-80491 |
LY151,161..T3,TW1,TW2 ﾏｰｸ 48531−26460 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LY101,111,151,161,YY101 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY101,111,151,161,YY101 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80450 |
LY151,161..T3,TW1,TW2 ﾏｰｸ 48531−26460 |
1 | ||
| 48531-80491 |
LY151,161..T3,TW1,TW2 ﾏｰｸ 48531−26460 |
1 | ||
| Common parts | ||||
| 90105-12152 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 91611-60818 | ||||
| 91651-60820 | ||||
| 94130-01202 | ||||
| 94512-01200 | ||||
| 94621-11400 | ||||

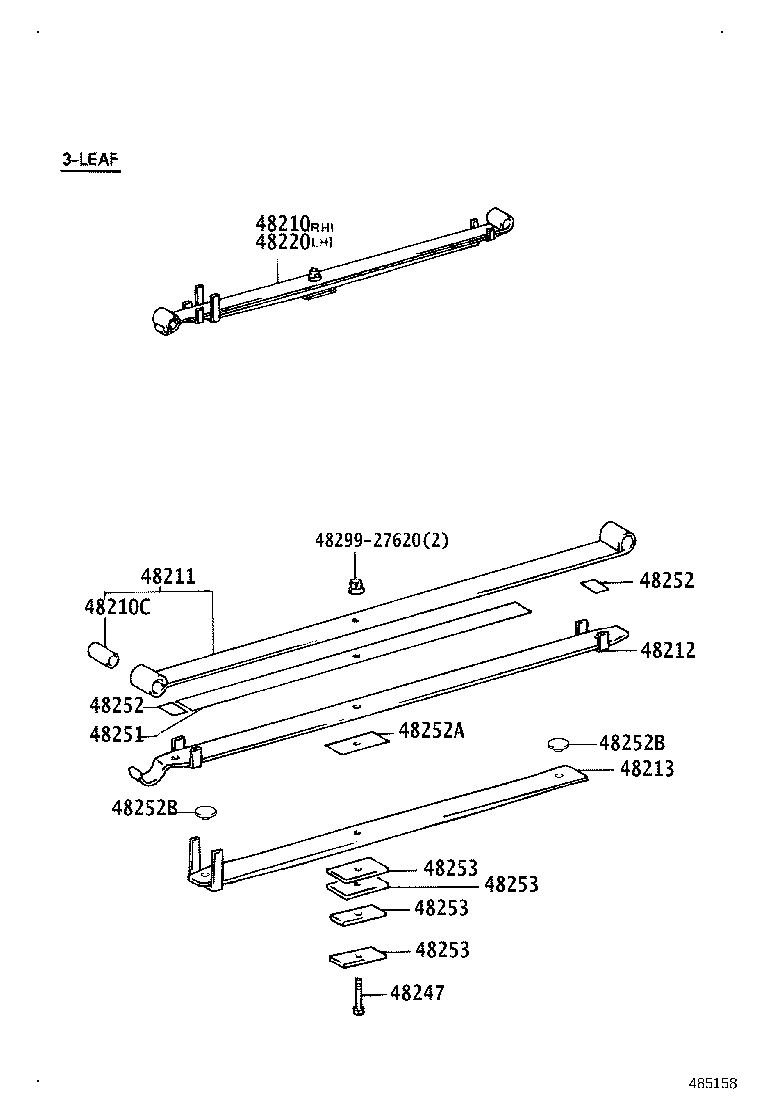

ILLUST NO. 2 OF 2(9505- )LY151,161
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26871 |
LY151,161..TW1,TW2 3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY101,111,151,161,YY101 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26860 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-26861 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-26860 |
LY151,161..T3,TW1,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26871 |
LY151,161..TW1,TW2 3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26870 |
LY151,161..TW1,TW2 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY151,161 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY151,161 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY151,161 |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY151,161 |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-26401 |
LY151,161 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-26401 |
LY151,161 |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26870 |
LY151,161..TW1,TW2 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26870 |
LY151,161..TW1,TW2 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26870 |
LY151,161..TW1,TW2 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26870 |
LY151,161..TW1,TW2 |
2 | ||
| Common parts | ||||
| 48299-27620 | ||||
