LY151-TLMDS3 (1995)
Toyota Hiace Truck

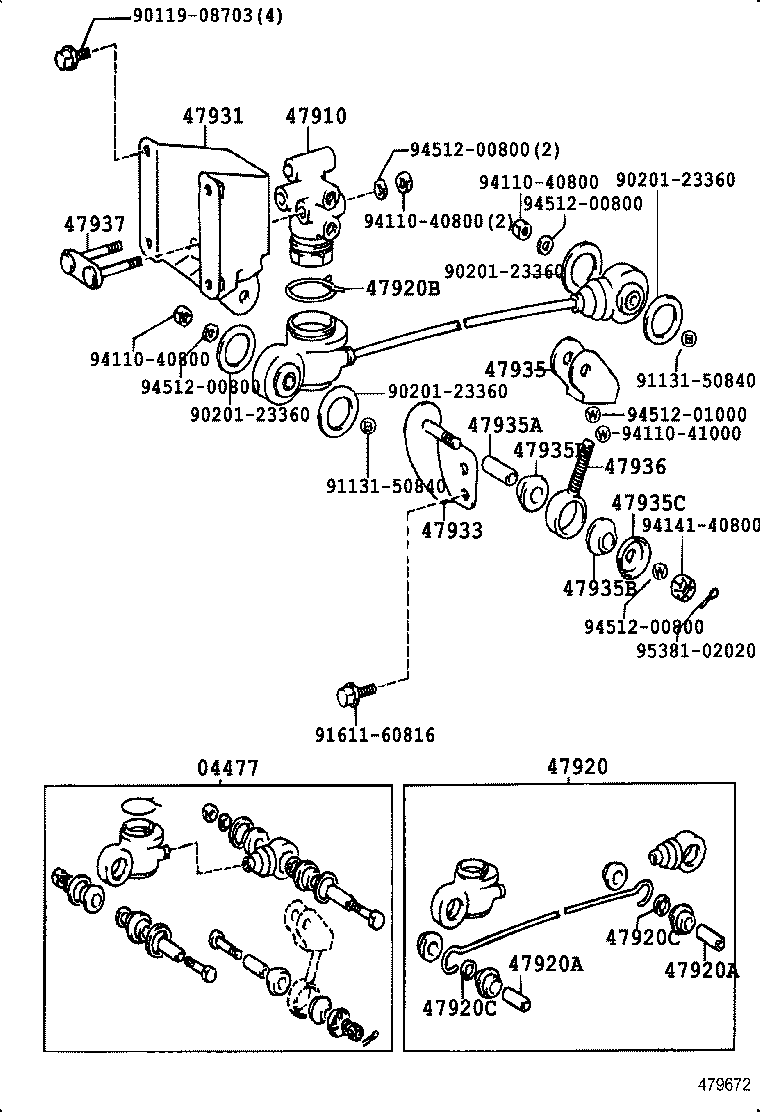

ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-26010 |
LY101,111,151,161,YY101 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26141 |
LY101,111,151,161,YY101 |
1 | ||
| 47910-25190 |
LY101,111,151,161,YY101 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-26060 |
LY101,111,151,161,YY101 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LY101,111,151,161,YY101 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LY101,111,151,161,YY101 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LY101,111,151,161,YY101 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LY101,111,151,161,YY101 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LY101,111,151,161,YY101 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-26091 |
LY101,111,151,161,YY101 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-26080 |
LY101,111,151,161,YY101 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
LY101,111,151,161,YY101 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LY101,111,151,161,YY101 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LY101,111,151,161,YY101 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LY101,111,151,161,YY101 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
LY101,111,151,161,YY101 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
LY101,111,151,161,YY101 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
LY101,111,151,161,YY101 |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

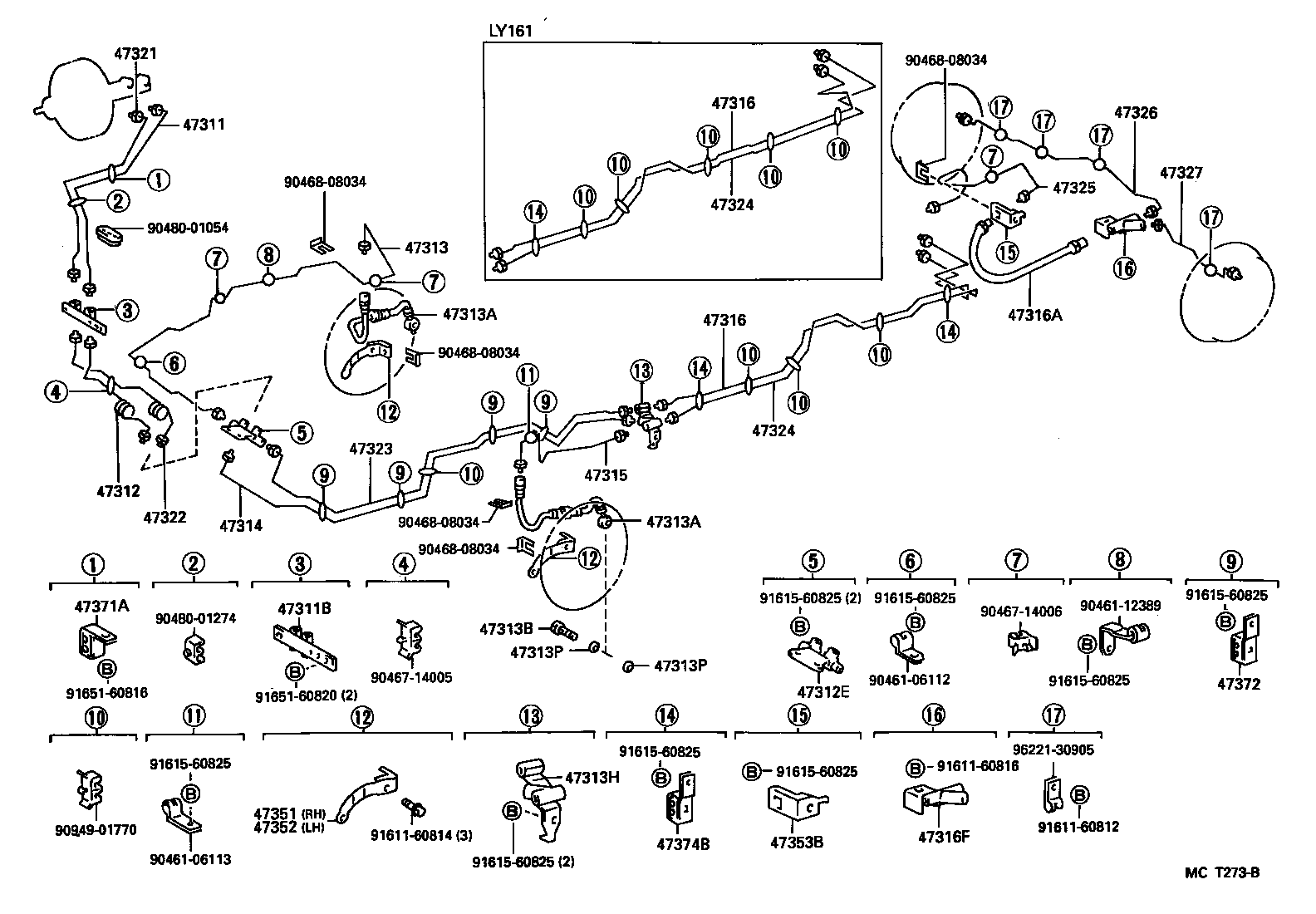

ILLUST NO. 1 OF 2(9505- )LY151,161
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25260 |
LY151,161 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10221 |
LY101,111,151,161,YY101 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-25140 |
LY151,161 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10187 |
LY101,111,151,161,YY101 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-25140 |
LY151,161 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02522 |
LY151,161 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02522 |
LY151,161 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
LY151,161 |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-13023 |
LY101,111,151,161,YY101 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
LY151,161 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
LY151,161 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-25180 |
LY151,161 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-25090 |
LY151,161 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-25170 |
LY101,151,YY101 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-25170 |
LY101,151,YY101 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02621 |
LY151,161..T2 |
1 | ||
| 47316F - WAY, 3(FOR REAR BRAKE TUBE) | ||||
| 90413-10216 |
LY101,111,151,161,YY101 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-25120 |
LY151,161 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-25120 |
LY151,161 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-25140 |
LY151,161 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25290 |
LY101,151,YY101 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25290 |
LY101,151,YY101 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26281 |
LY101,111,151,161,YY101 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26191 |
LY101,111,151,161,YY101..T2 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26071 |
LY101,111,151,161,YY101..T2 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-26090 |
LY151,161 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-26090 |
LY151,161 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-26050 |
LY101,111,151,161,YY101 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47373-25010 |
LY101,111,151,161,YY101 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
LY151,161 |
4 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-25010 |
LY101,111,151,161,YY101 |
2 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 90461-12389 | ||||
| 90467-14005 | ||||
| 90467-14006 | ||||
| 90468-08034 | ||||
| 90480-01054 | ||||
| 90480-01274 | ||||
| 90949-01770 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91615-60825 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 96221-30905 | ||||
