LY151-TLMDS (1995)
Toyota Hiace Truck
Production
May 1995
-
Oct 1996
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )LY151,161

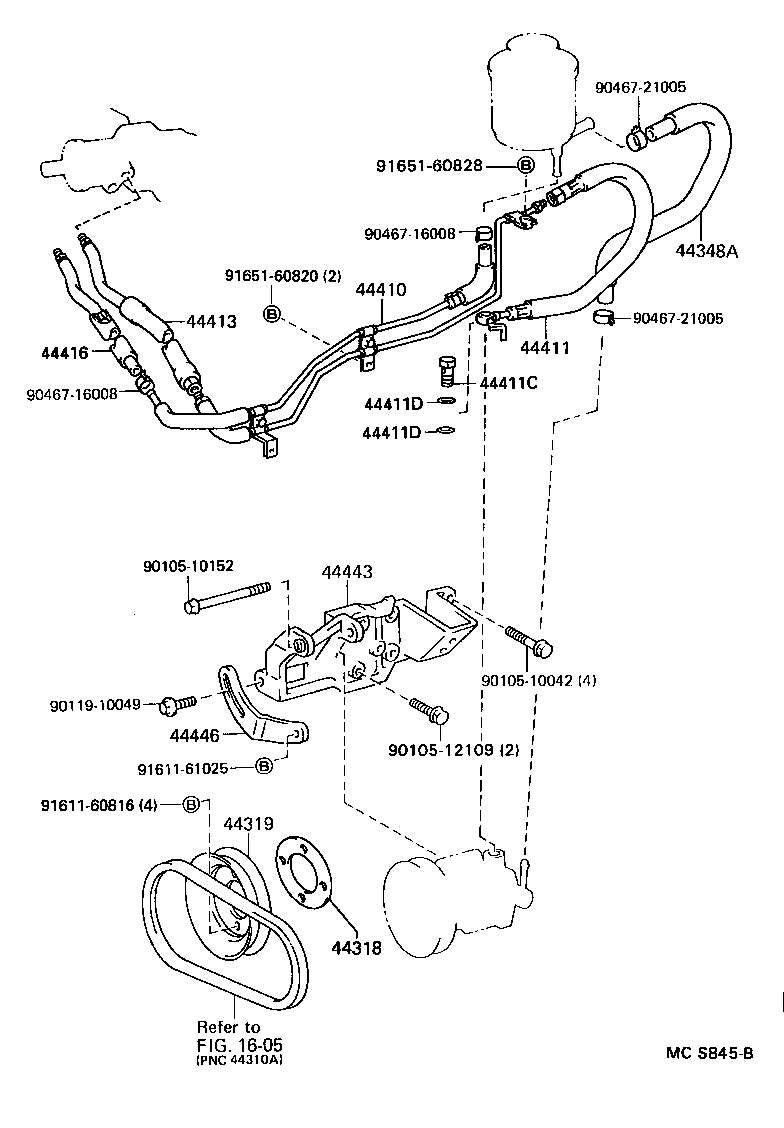

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-26010 |
LY101,111,151,161 |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-26010 |
LY101,111,151,161 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-26110 |
LY151,161 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-25090 |
LY151,161 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-26070 |
LY151,161 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
LY101,111,151,161,YY101 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
LY101,111,151,161,YY101 |
2 | ||
| 90430-16168 |
LY151,161 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
LY101,111,151,161,YY101 |
2 | ||
| 90430-16168 |
LY151,161 |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-25080 |
LY151,161 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44406-25010 |
LY151,161 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-26020 |
LY151,161 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-26010 |
LY151,161 |
1 | ||
| Common parts | ||||
| 90105-10042 | ||||
| 90105-10152 | ||||
| 90105-12109 | ||||
| 90119-10049 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91651-60820 | ||||
| 91651-60828 | ||||
| Linked diagrams | ||||
| 1605 | ||||
