LY151-TBMDS (1995)
Toyota Hiace Truck
Production
May 1995
-
Oct 1996
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

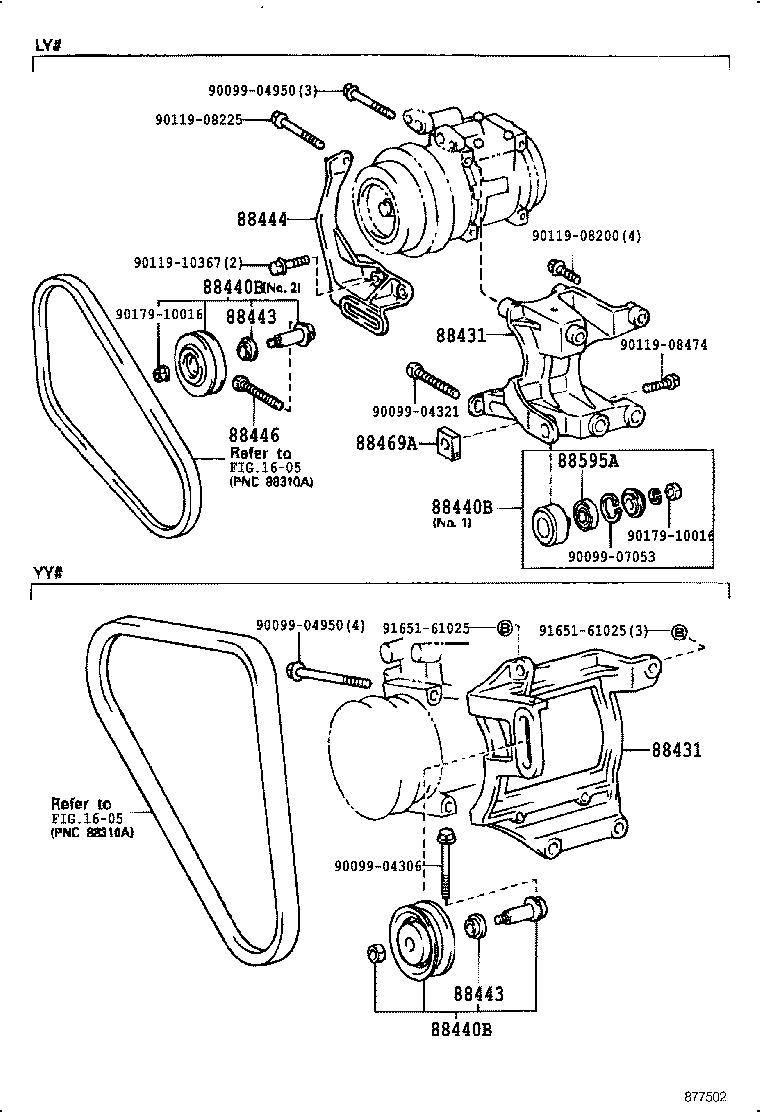

ILLUST NO. 2 OF 2(9505-9610)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26240 |
LY151,161 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26240 |
LY151,161 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
LY101,111,151,161 NO.2 |
1 | ||
| 88440-26070 |
LY101,111,151,161 NO.1 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
LY101,111,151,161 NO.2 |
1 | ||
| 88440-26070 |
LY101,111,151,161 NO.1 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
LY101,111,151,161 NO.2 |
1 | ||
| 88440-26070 |
LY101,111,151,161 NO.1 |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
LY101,111,151,161,YY101 |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
LY101,111,151,161,YY101 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-26170 |
LY151,161 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35010 |
LY101,111,151,161 |
1 | ||
| 88469A - COLLAR, ADJUSTING | ||||
| 88469-30280 |
LY101,111,151,161 |
1 | ||
| Common parts | ||||
| 90099-04306 | ||||
| 90099-04321 | ||||
| 90099-04950 | ||||
| 90099-07053 | ||||
| 90119-08200 | ||||
| 90119-08225 | ||||
| 90119-08474 | ||||
| 90119-10367 | ||||
| 90179-10016 | ||||
| 91651-61025 | ||||

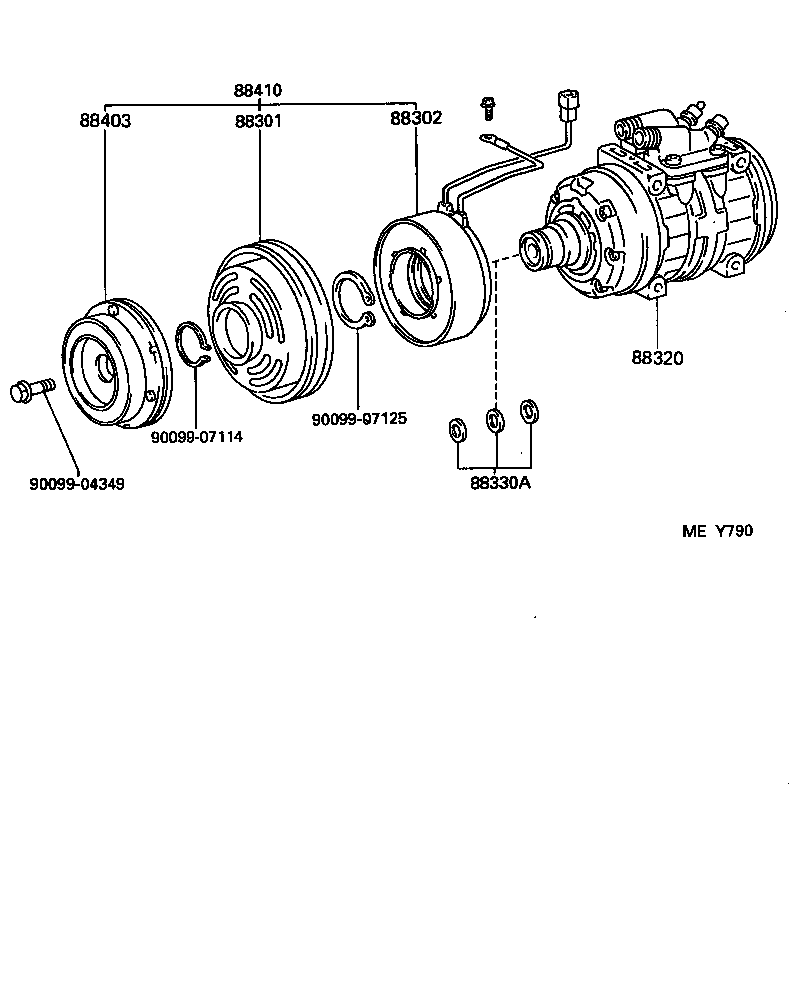

ILLUST NO. 1 OF 2(9505-9610)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-30430 |
LY101,111,151,161 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22280 |
LY101,111,151,161 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26480 |
LY101..CBU;LY111,151,161;LY101..ATM..IV |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
LY101,111,151,161 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
LY101,111,151,161 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-25090 |
LY101..CBU;LY111,151,161;LY101..ATM..IV |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||

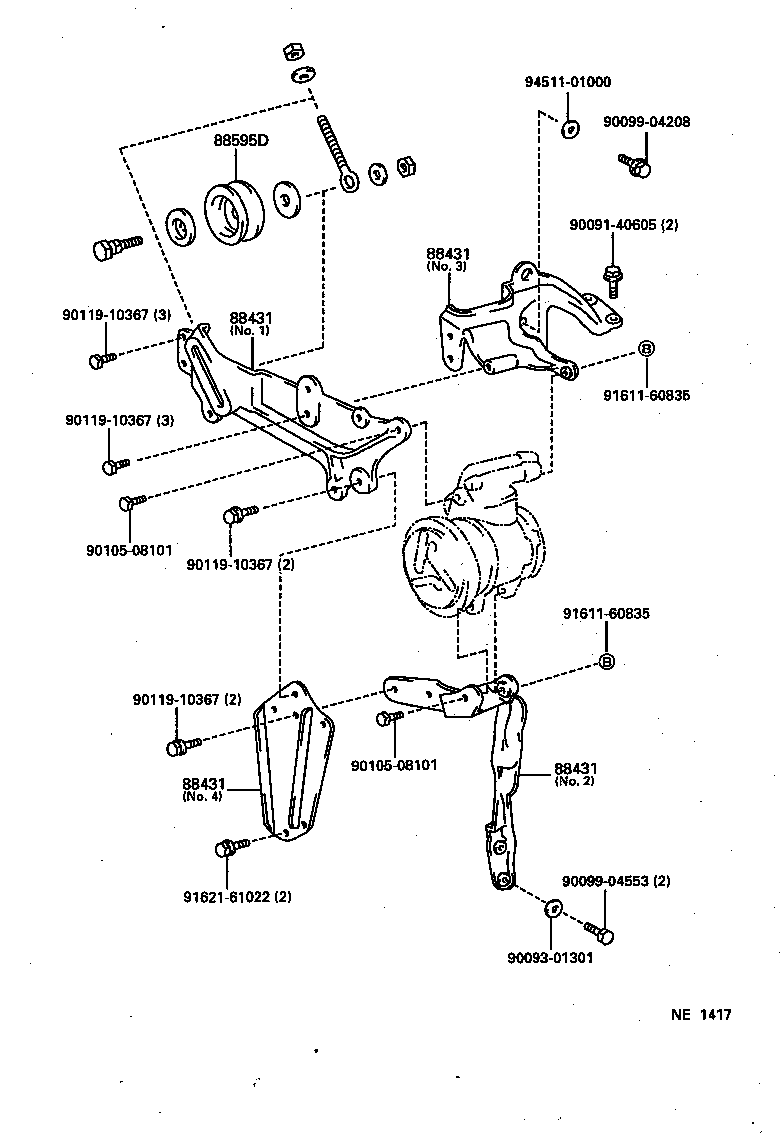

ILLUST NO. 1 OF 2(9505-9610)
Click highlighted areas on diagram
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26240 |
LY151,161 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26240 |
LY151,161 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26240 |
LY151,161 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26240 |
LY151,161 |
1 | ||
| Common parts | ||||
| 90091-40605 | ||||
| 90093-01301 | ||||
| 90099-04208 | ||||
| 90099-04553 | ||||
| 90105-08101 | ||||
| 90119-10367 | ||||
| 91611-60835 | ||||
| 91621-61022 | ||||
| 94511-01000 | ||||
