LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9610)LY101,111,151,161

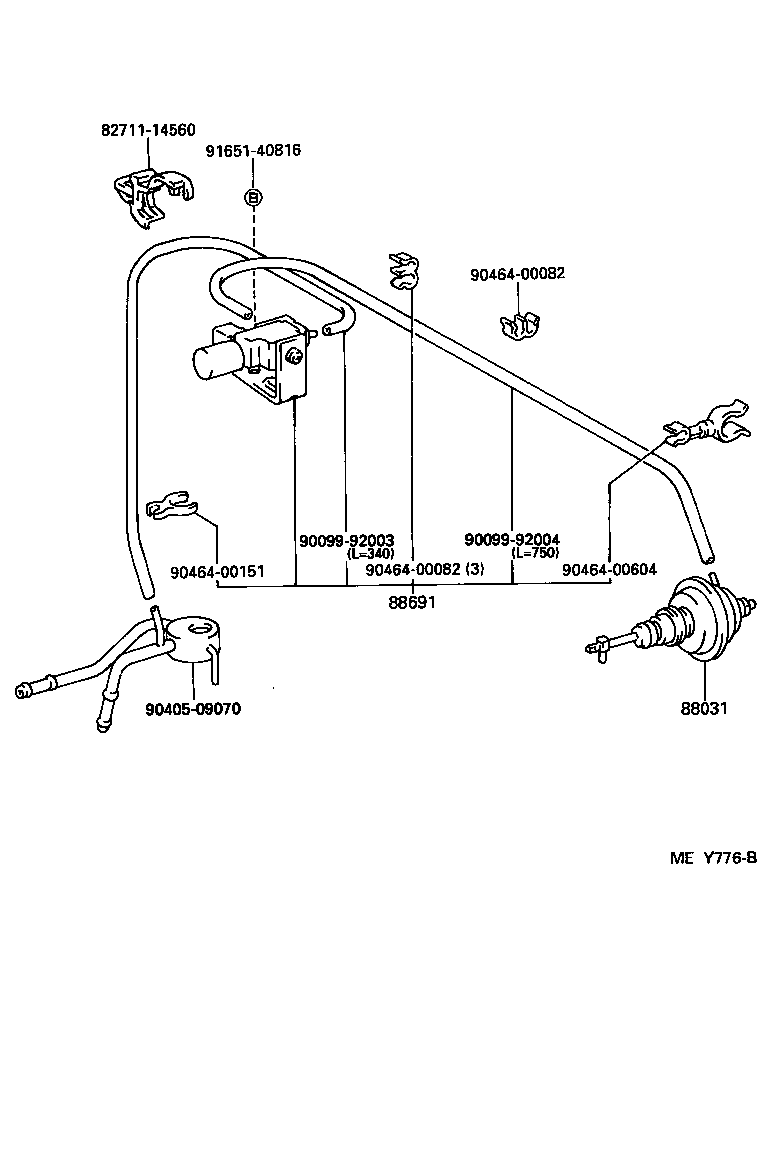

Click highlighted areas on diagram

diagram 8271114560 88031 88691 9009992003 9009992004 9040509070 9046400082 9046400082 9046400151 9046400604 9165140816
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-25020

LY101..CBU;LY111,151,161;LY101..ATM..IV

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
25860-54100

LY151,161

 1
Common parts
82711-14560
90099-92003
90099-92004
90405-09070
90464-00082
90464-00151
90464-00604
91651-40816
