LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9610)LY101,111,151,161

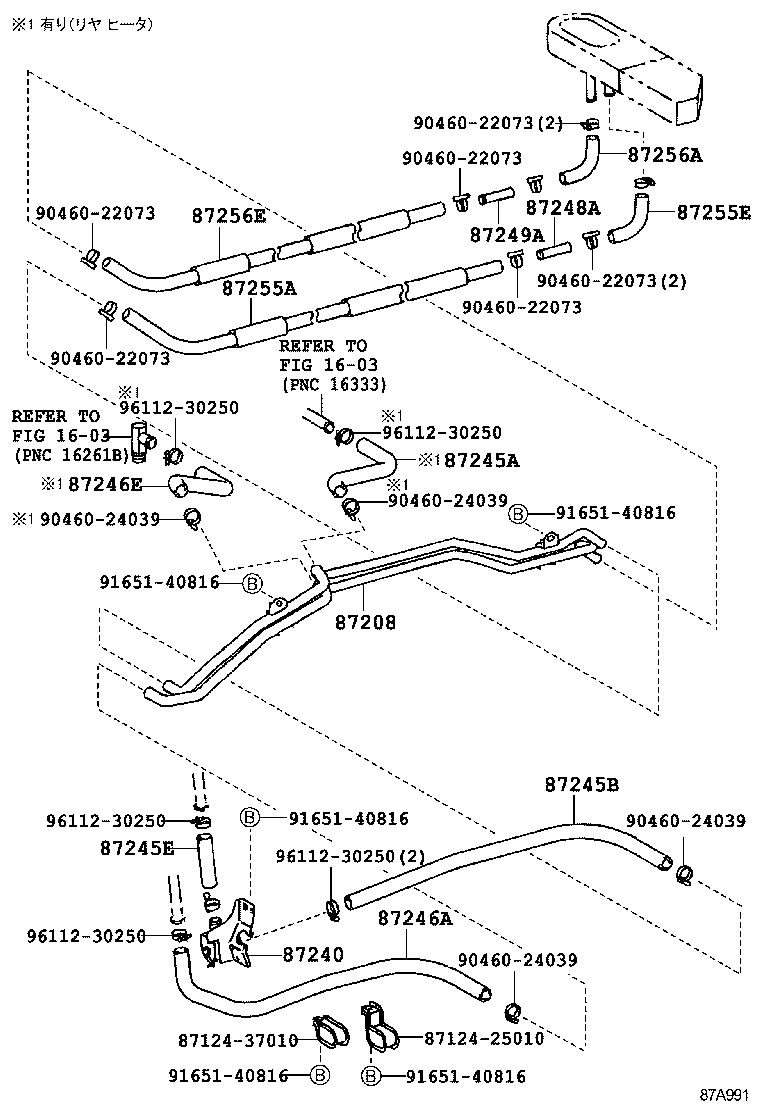

Click highlighted areas on diagram

diagram 1603 1603 8712425010 8712437010 87208 87240 87245A 87245B 87245E 87246A 87246E 87248A 87249A 87255A 87255E 87256A 87256E 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9165140816 9165140816 9165140816 9165140816 9165140816 9611230250 9611230250 9611230250 9611230250 9611230250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-25090

LY101,111,151,161

 1
87240 - VALVE ASSY, HEATER WATER
87240-37010

LY101,111,151,161,YY101

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30300

LY151,161,YY101

長さ=300

 1
87245-25330

LY151,161

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

LY101,111,151,161

長さ=500

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY101,111,151,161,YY101

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30500

LY101,111,151,161

長さ=500

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

LY151,161

長さ=300

 1
Common parts
87124-25010
87124-37010
90460-22073
90460-24039
91651-40816
96112-30250
Linked diagrams
1603
