LY151-TBMDS (1995)
Toyota Hiace Truck
Production
May 1995
-
Oct 1996
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505-9610)
Click highlighted areas on diagram

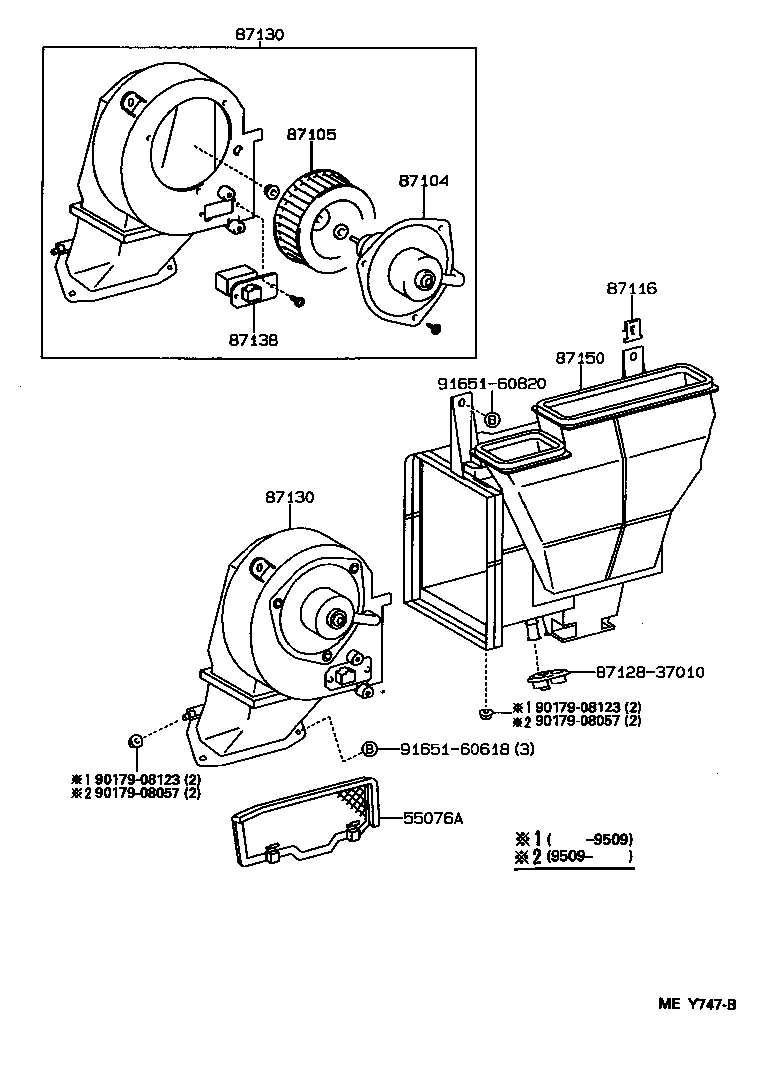

FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55076A - NET SUB-ASSY, AIR DUCT | ||||
| 55076-37010 |
LY101,111,151,161,YY101 |
1 | ||
| 55076-37050 |
LY101,111,151,161,YY101 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-37070 |
LY101,111,151,161,YY101 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14030 |
LY101,111,151,161,YY101 |
1 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-37010 |
LY101,111,151,161,YY101 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-37060 |
LY101,111,151,161,YY101 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-37060 |
LY101,111,151,161,YY101 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-37080 |
LY101,111,151,161,YY101 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-37050 |
LY101,111,151,161,YY101 ﾍﾋﾞ-ﾋ-ﾀ |
1 | ||
| 87150-37030 |
LY101,111,151,161,YY101 |
1 | ||
| Common parts | ||||
| 87128-37010 | ||||
| 90179-08057 | ||||
| 90179-08123 | ||||
| 91651-60618 | ||||
| 91651-60820 | ||||
(9505-9610)
Click highlighted areas on diagram

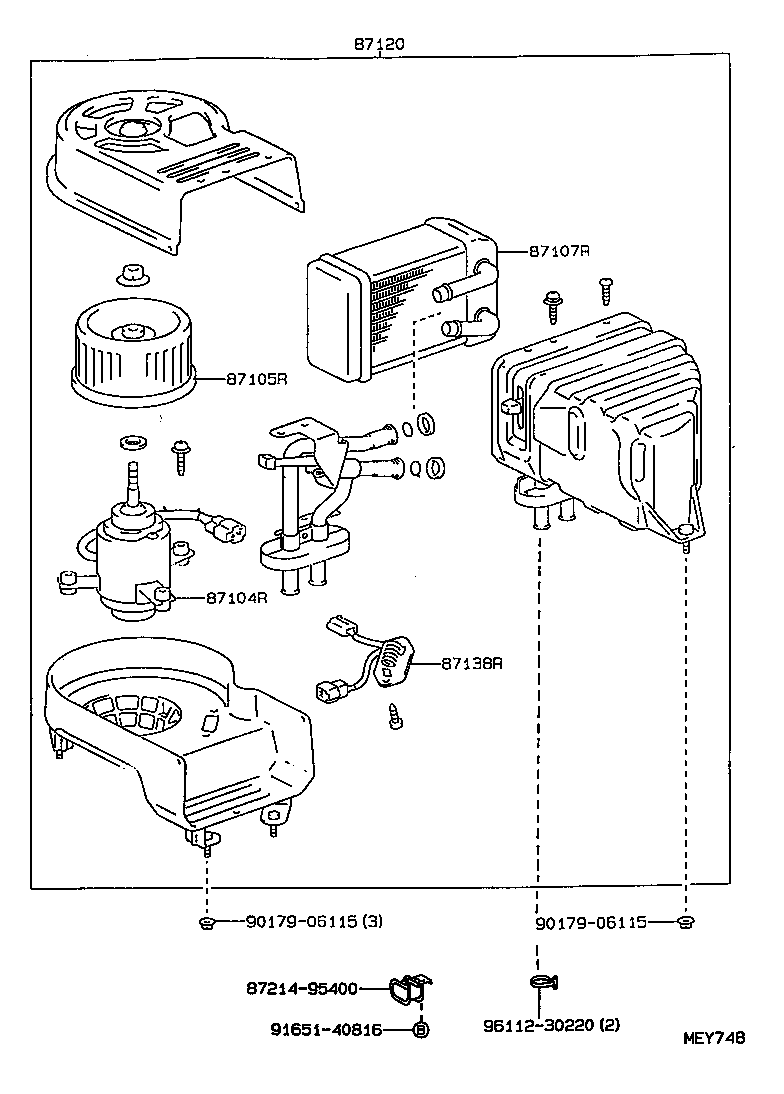

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87214-95400 | ||||
| 90179-06115 | ||||
| 91651-40816 | ||||
| 96112-30220 | ||||
