LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9610)

Click highlighted areas on diagram

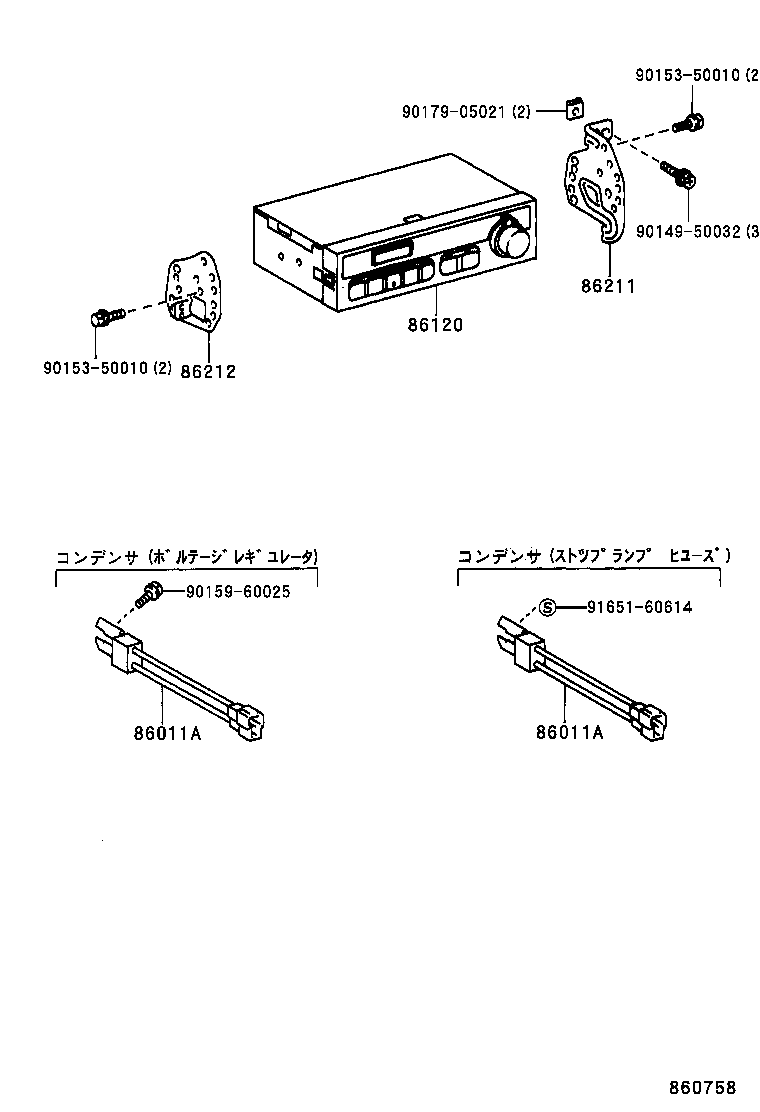

diagram 86011A 86011A 86120 86211 86212 9014950032 9015350010 9015350010 9015960025 9017905021 9165160614
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04046

LY101,111,151,161

 2
86011A - CONDENSER, RADIO SETTING
90980-04046

LY101,111,151,161

 2
86120 - RECEIVER ASSY, RADIO
86120-2B480

LY101,111,151,161,YY101

MATSUSHITA,ID=55401,AM/FM ﾃﾞﾝｼﾁﾕｰﾅ ｶｾﾂﾄ(AM=9KHZ ｽﾃﾂﾌﾟ)

 1
86120-37010

LY101,111,151,161,YY101

MATSUSHITA,ID=50101,AM ﾃﾞﾝｼﾁﾕｰﾅ(AM=9KHZ ｽﾃﾂﾌﾟ)

 1
86211 - BRACKET, RADIO, NO.1
86211-37030

LY101,111,151,161,YY101

 1
86212 - BRACKET, RADIO, NO.2
86212-37020

LY101,111,151,161,YY101

 1
Common parts
90149-50032
90153-50010
90159-60025
90179-05021
91651-60614
