LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9610)

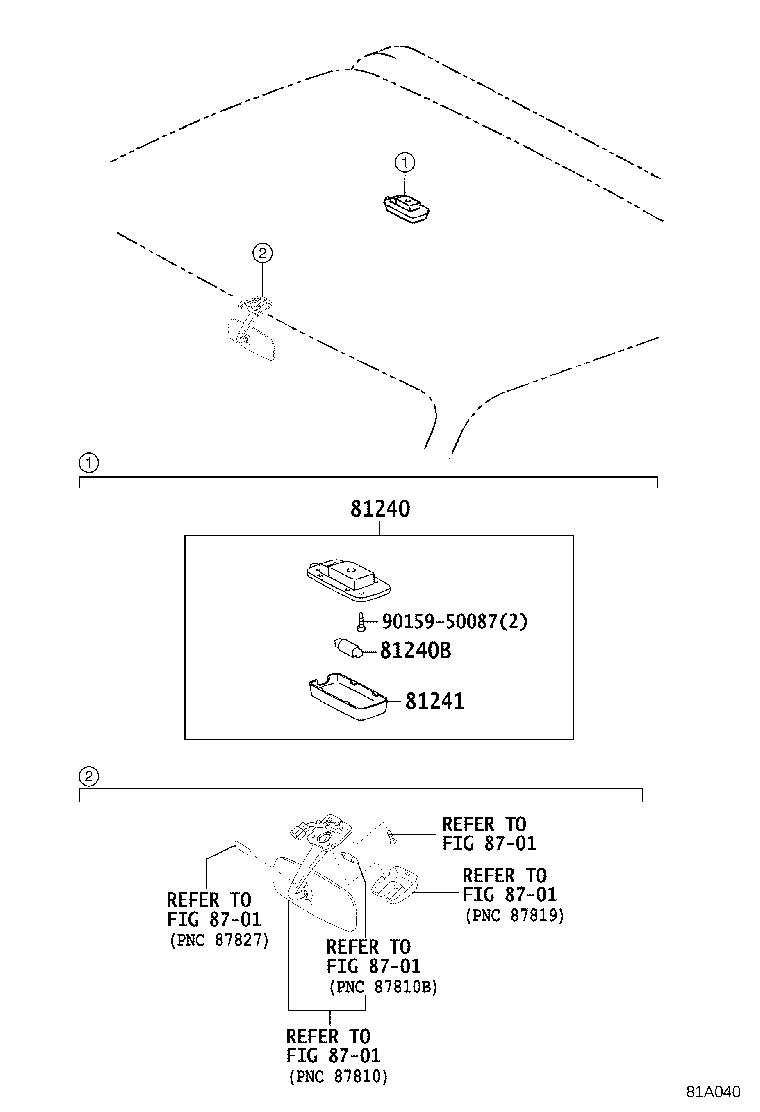

Click highlighted areas on diagram

diagram 81240 81240B 81241 8701 8701 8701 8701 8701 9015950087
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-37010B1

LY101,111,151,161,YY101..T1,T2,T3

ｹｲｺｳﾄｳｼｷ,LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11033

LY101,111,151,161,YY101..T1,T2,T3

100V 6W(ﾏｰｸ FL−6W),ｹｲｺｳﾄｳｼｷ

 2
81241 - LENS, ROOM LAMP, NO.1
81241-95J00

LY101,111,151,161,YY101..T1,T2,T3

ｹｲｺｳﾄｳｼｷ

 1
Common parts
90159-50087
Linked diagrams
8701

(9505-9610)

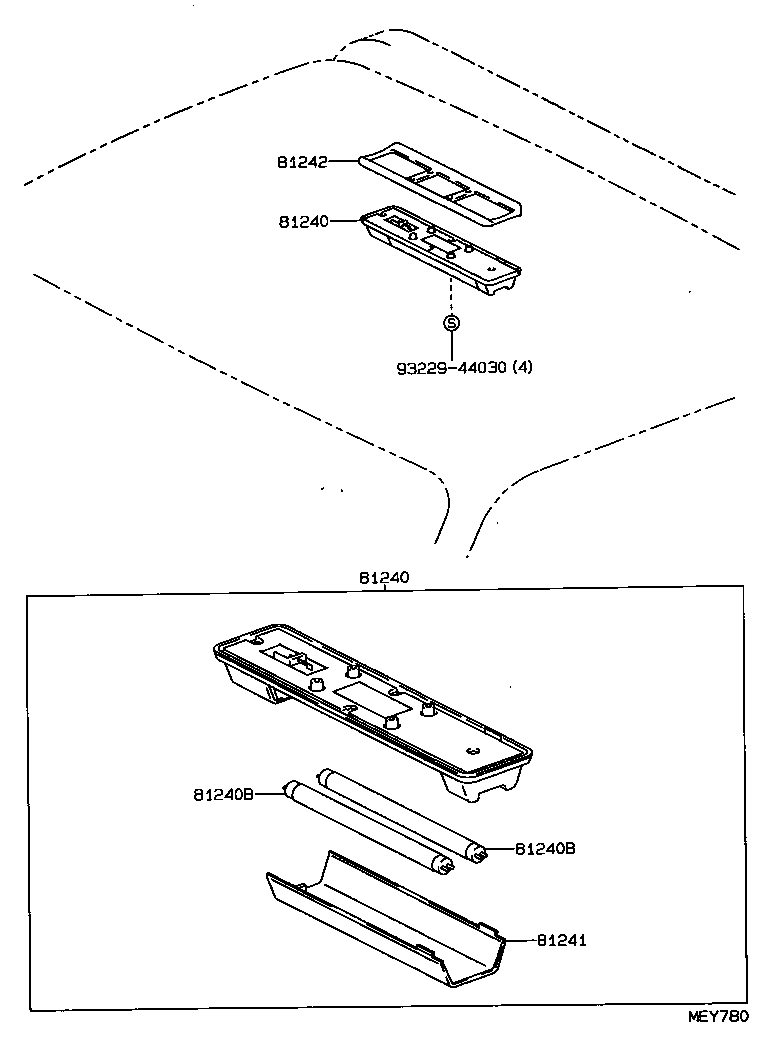

Click highlighted areas on diagram

ｹｲｺｳﾄｳ ｼｷ

diagram 81240 81240 81240B 81240B 81241 81242 9322944030
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-37010B1

LY101,111,151,161,YY101..T1,T2,T3

ｹｲｺｳﾄｳｼｷ,LT.GRAY,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-37010B1

LY101,111,151,161,YY101..T1,T2,T3

ｹｲｺｳﾄｳｼｷ,LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11033

LY101,111,151,161,YY101..T1,T2,T3

100V 6W(ﾏｰｸ FL−6W),ｹｲｺｳﾄｳｼｷ

 2
81240B - BULB, ROOM LAMP, NO.1
90981-11033

LY101,111,151,161,YY101..T1,T2,T3

100V 6W(ﾏｰｸ FL−6W),ｹｲｺｳﾄｳｼｷ

 2
81241 - LENS, ROOM LAMP, NO.1
81241-95J00

LY101,111,151,161,YY101..T1,T2,T3

ｹｲｺｳﾄｳｼｷ

 1
81242 - GASKET, ROOM LAMP, NO.1
81242-95400

LY101,111,151,161,YY101..T1,T2,T3

ｹｲｺｳﾄｳｼｷ

 1
Common parts
93229-44030
