LY151-TBMDS (1995)
Toyota Hiace Truck
Production
May 1995
-
Oct 1996
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )LY151,161

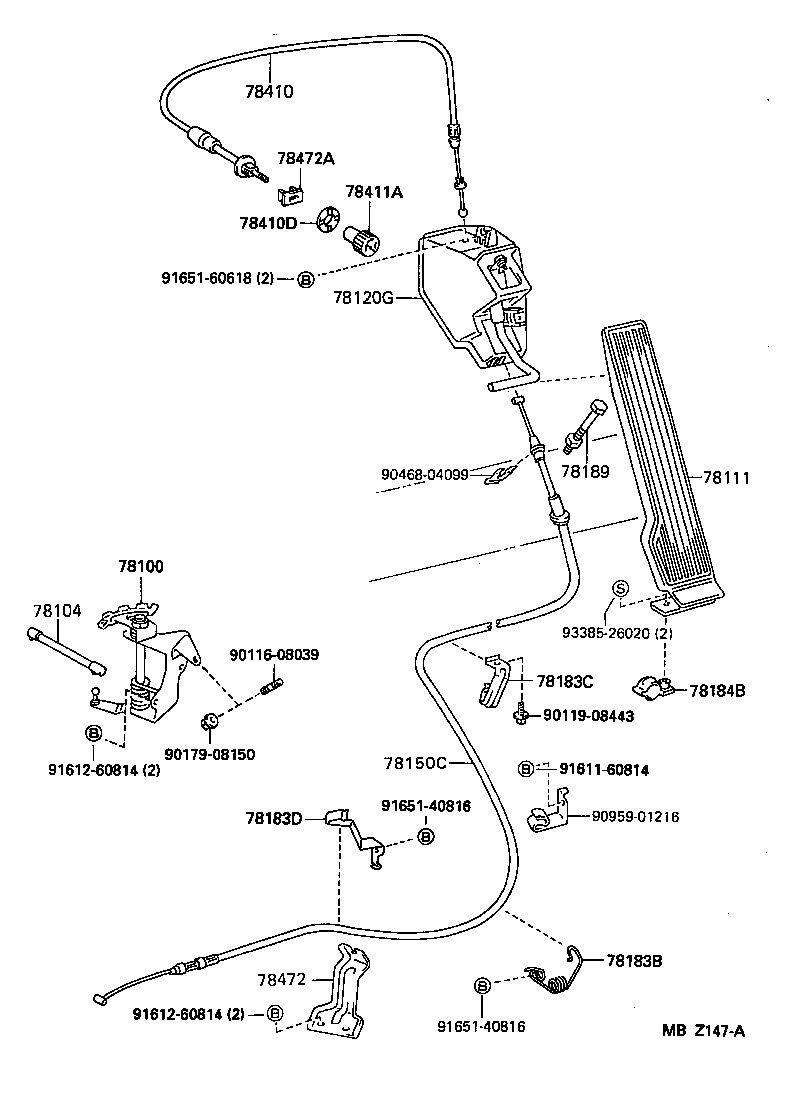

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-25011 |
LY101,111,151,161 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22140 |
LY101,111,151,161 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
LY101,111,151,161,YY101 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78202-95010 |
LY101,111,151,161,YY101 |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-25080 |
LY151,161 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-25010 |
LY101,111,151,161,YY101 |
1 | ||
| 78183C - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-25020 |
LY101,111,151,161,YY101 |
1 | ||
| 78183D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-95A12 |
LY151,161 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78183-95406 |
LY101,111,151,161,YY101 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-95404 |
LY101,111,151,161,YY101 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78404-37020 |
LY101,111,151,161 |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
LY101,111,151,161 |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-22010 |
LY101,111,151,161 |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-25011 |
LY101,111,151,161 |
1 | ||
| 78472A - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-95700B0 |
LY101,111,151,161 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90119-08443 | ||||
| 90179-08150 | ||||
| 90468-04099 | ||||
| 90959-01216 | ||||
| 91611-60814 | ||||
| 91612-60814 | ||||
| 91651-40816 | ||||
| 91651-60618 | ||||
| 93385-26020 | ||||
