LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

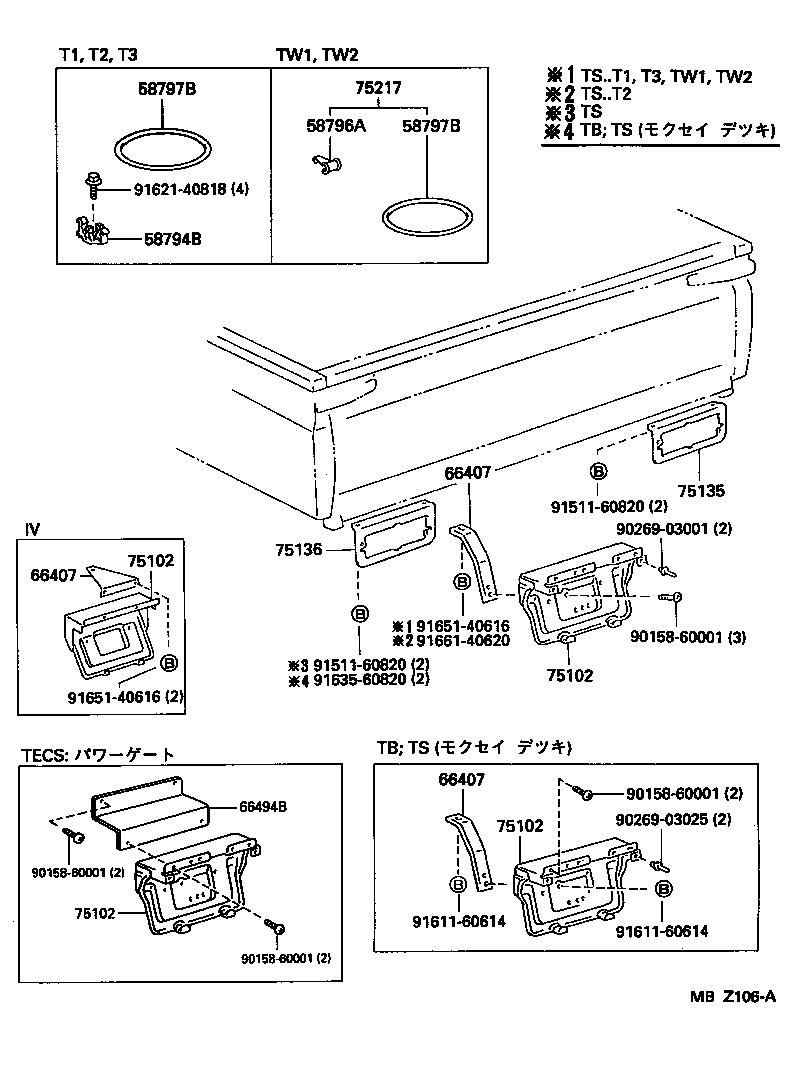

Click highlighted areas on diagram

diagram 58794B 58796A 58797B 58797B 66407 66407 66407 66494B 75102 75102 75102 75102 75135 75136 75217 9015860001 9015860001 9015860001 9015860001 9026903001 9026903025 9151160820 9151160820 9161160614 9161160614 9162140818 9163560820 9165140616 9165140616 9166140620
Part # Description Qty Price
58794B - SUPPORT, JACK HANDLE
58794-37020

LY101,111,151,161,YY101..T1,T2,T3

 2
58797B - BAND, JACK CLAMP
58797-37020

LY101,111,151,161,YY101..T1,T2,T3

 1
58797B - BAND, JACK CLAMP
58797-37020

LY101,111,151,161,YY101..T1,T2,T3

 1
66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET
66407-95A02

LY101,111,151,161,YY101..(T3,TW1)..TS..CBU

 1
66493-25030

LY151..TB

 1
66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET
66407-95A02

LY101,111,151,161,YY101..(T3,TW1)..TS..CBU

 1
66493-25030

LY151..TB

 1
66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET
66407-95A02

LY101,111,151,161,YY101..(T3,TW1)..TS..CBU

 1
66493-25030

LY151..TB

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95019

LY151..TB;LY101,111..T3..TB;LY151..(T2,TW2)..TS;LY101,111,161,YY101..T1,T2,TW2;LY101,111,151,161,YY101..T3..IV

 1
66490-95A06

LY101,111,151,161,YY101..(T3,TW1)..TS..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95019

LY151..TB;LY101,111..T3..TB;LY151..(T2,TW2)..TS;LY101,111,161,YY101..T1,T2,TW2;LY101,111,151,161,YY101..T3..IV

 1
66490-95A06

LY101,111,151,161,YY101..(T3,TW1)..TS..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95019

LY151..TB;LY101,111..T3..TB;LY151..(T2,TW2)..TS;LY101,111,161,YY101..T1,T2,TW2;LY101,111,151,161,YY101..T3..IV

 1
66490-95A06

LY101,111,151,161,YY101..(T3,TW1)..TS..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95019

LY151..TB;LY101,111..T3..TB;LY151..(T2,TW2)..TS;LY101,111,161,YY101..T1,T2,TW2;LY101,111,151,161,YY101..T3..IV

 1
66490-95A06

LY101,111,151,161,YY101..(T3,TW1)..TS..CBU

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95A02

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
75135-25040

LY101,111,151..TB

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-25040

LY101,111,151..TB

 1
75135-95A02

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
Common parts
90158-60001
90269-03001
90269-03025
91511-60820
91611-60614
91621-40818
91635-60820
91651-40616
91661-40620
