LY151-TBMDS (1995)
Toyota Hiace Truck

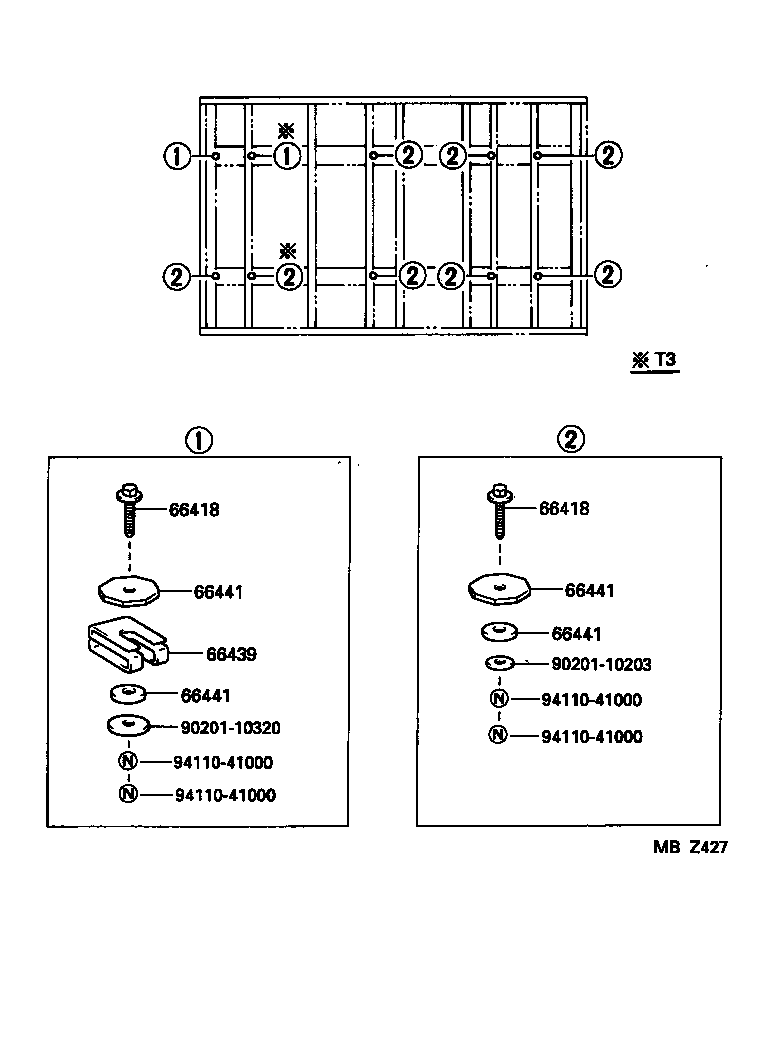

(9505- )T3,TW1..TS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418 - BOLT, MOUNTING | ||||
| 90109-10156 |
LY101,111,151..TB |
8 | ||
| 90119-10490 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU |
10 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90109-10156 |
LY101,111,151..TB |
8 | ||
| 90119-10490 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU |
10 | ||
| 66439 - SHIM, SUPPORT | ||||
| 66439-95400 |
LY101,111,151,161,YY101..T3..TS..CBU |
2 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90564-15142 |
LY151..TB;LY101,111..T3..TB;LY101,111,YY101..(T1,T2)..CBU |
10 | ||
| 90564-12013 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 下側 |
10 | ||
| 90564-15142 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 上側 |
10 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90564-15142 |
LY151..TB;LY101,111..T3..TB;LY101,111,YY101..(T1,T2)..CBU |
10 | ||
| 90564-12013 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 下側 |
10 | ||
| 90564-15142 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 上側 |
10 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90564-15142 |
LY151..TB;LY101,111..T3..TB;LY101,111,YY101..(T1,T2)..CBU |
10 | ||
| 90564-12013 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 下側 |
10 | ||
| 90564-15142 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 上側 |
10 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90564-15142 |
LY151..TB;LY101,111..T3..TB;LY101,111,YY101..(T1,T2)..CBU |
10 | ||
| 90564-12013 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 下側 |
10 | ||
| 90564-15142 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 上側 |
10 | ||
| Common parts | ||||
| 90201-10203 | ||||
| 90201-10320 | ||||
| 94110-41000 | ||||

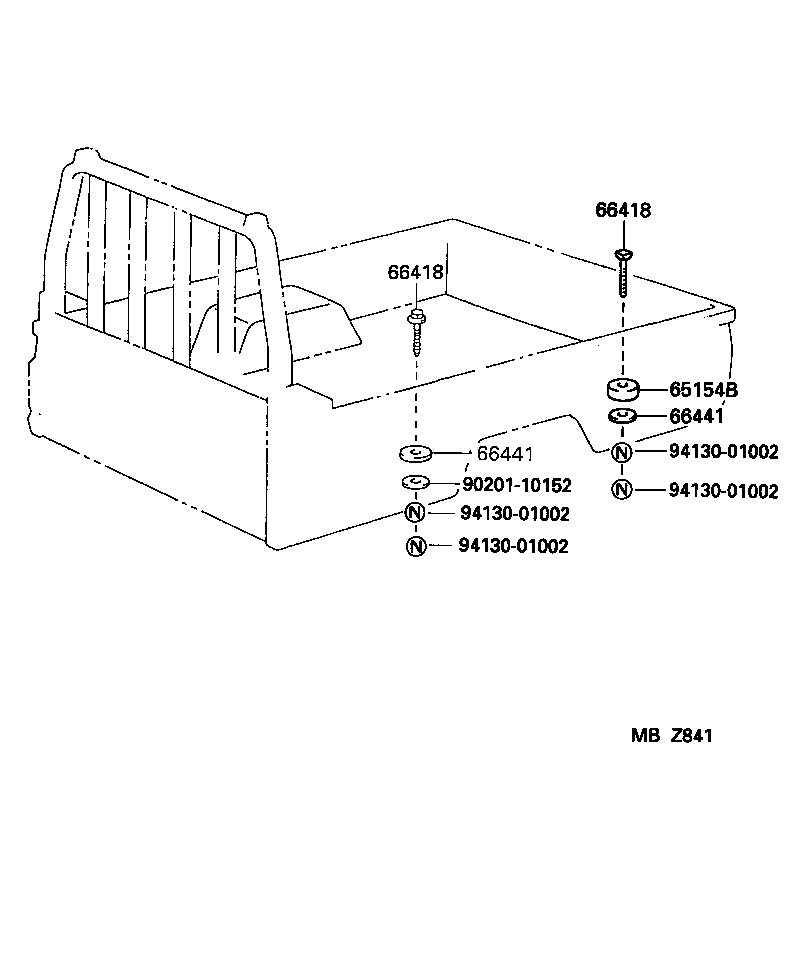

(9505- )TB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65154B - SPACER, CROSS SILL | ||||
| 65154-25010 |
LY151..T3..TB |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90109-10156 |
LY101,111,151..TB |
8 | ||
| 90119-10490 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU |
10 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90109-10156 |
LY101,111,151..TB |
8 | ||
| 90119-10490 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU |
10 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90564-15142 |
LY151..TB;LY101,111..T3..TB;LY101,111,YY101..(T1,T2)..CBU |
10 | ||
| 90564-12013 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 下側 |
10 | ||
| 90564-15142 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 上側 |
10 | ||
| 66441 - SHIM, MOUNTING, NO.1 | ||||
| 90564-15142 |
LY151..TB;LY101,111..T3..TB;LY101,111,YY101..(T1,T2)..CBU |
10 | ||
| 90564-12013 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 下側 |
10 | ||
| 90564-15142 |
LY151,161..(T2,T3)..TS..CBU;LY101,111,YY101..T3..TS..CBU 上側 |
10 | ||
| Common parts | ||||
| 90201-10152 | ||||
| 94130-01002 | ||||
