LY151-TBMDS (1995)

Toyota Hiace Truck

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )T2,T3,TW1..TS

Click highlighted areas on diagram

diagram 65500 65600 65679E 66013A 66014 66021A 66022A 66110C 66115C 66120C 66153A 66154A 66187 66783 66783 66784 66784 9011908657 9011908957 9017908123 9017908123 9046708011 9050107041 9054106021 9054110013 9166140620 9322018020 9327018020 9327018020 9616000600
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-25050

LY101,151,YY101..(T2,T3)..TS..CBU

 1
65500-25120

LY151..TB

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-25050

LY101,151,YY101..(T2,T3)..TS..CBU

 1
65600-25120

LY151..TB

 1
65679E - SEAL, SIDE GATE
65679-25040

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

右側

 1
65679-25030

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

左側

 1
65679-37010

LY101,111,151..TB

 1
66013A - SUPPORT SUB-ASSY, SIDE GATE, RH
66013-25010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
66014 - SUPPORT SUB-ASSY, CORNER, LH
66014-25010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
66021A - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER, RH
66021-25010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
66022A - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER, LH
66022-25010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65040-95A00

LY101,151,YY101..(T2,T3)..TS..CBU

 5
65010-37040

LY101,111,151..TB

2ND,3RD,4TH

 3
65050-37080

LY101,111,151..TB

1ST,5TH

 2
66115C - RETAINER, GATE HINGE
66115-95018

LY101,151,YY101..(T2,T3)..TS..CBU

 10
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
66110-95018

LY101,151,YY101..(T2,T3)..TS..CBU

 5
65010-37040

LY101,111,151..TB

2ND,3RD,4TH

 3
65050-37080

LY101,111,151..TB

1ST,5TH

 2
66153A - LATCH, TAIL GATE FEMALE, RH
66153-26010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
66154A - LATCH, TAIL GATE FEMALE, LH
66154-26010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2
66187-25010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 2
66783 - BRACKET, SIDE GATE SUPPORT, RH
66197-25010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
66783 - BRACKET, SIDE GATE SUPPORT, RH
66197-25010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
66784 - BRACKET, SIDE GATE SUPPORT, LH
66198-25010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
66784 - BRACKET, SIDE GATE SUPPORT, LH
66198-25010

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

 1
Common parts
90119-08657
90119-08957
90179-08123
90467-08011
90501-07041
90541-06021
90541-10013
91661-40620
93220-18020
93270-18020
96160-00600

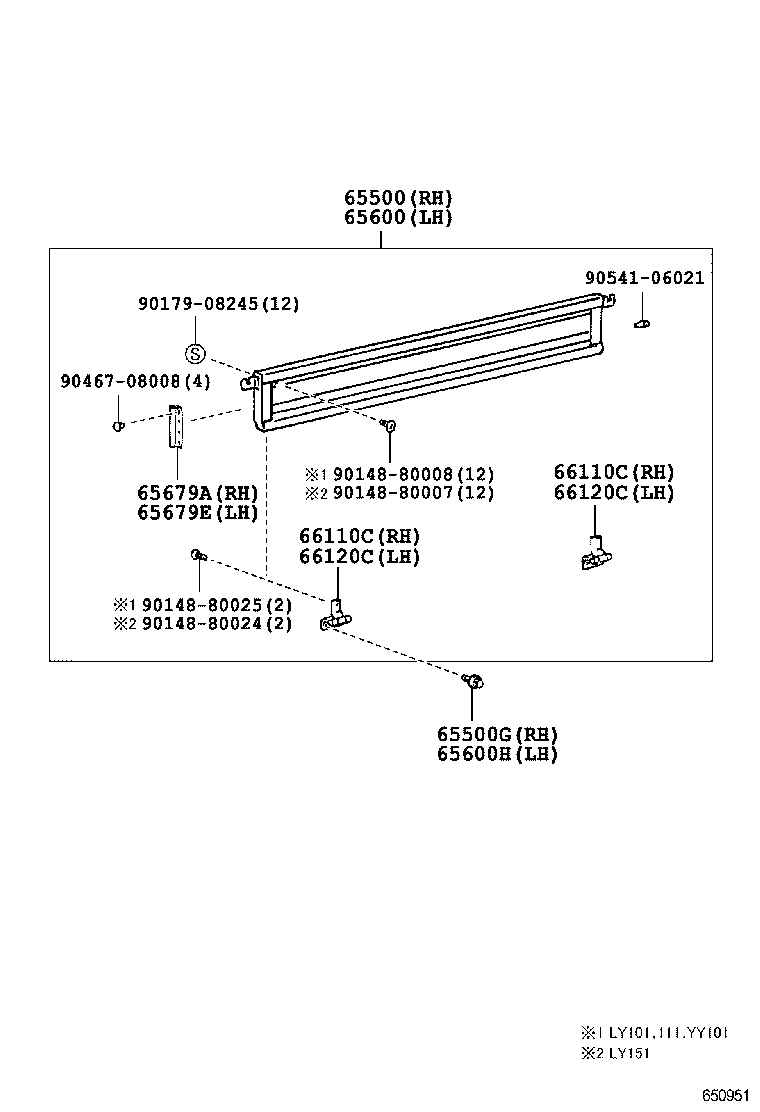

(9505- )TB ; (9505- )YY101..T2..IV ; (9505- )LY101..T2..ATM..IV

Click highlighted areas on diagram

diagram 65500 65500G 65600 65600H 65679A 65679E 66110C 66110C 66120C 66120C 9014880007 9014880008 9014880024 9014880025 9017908245 9046708008 9054106021
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-25050

LY101,151,YY101..(T2,T3)..TS..CBU

 1
65500-25120

LY151..TB

 1
65500G - BOLT, W/WASHER(FOR SIDE GATE, RH)
90119-08464

LY101,111,151..TB

 10
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-25050

LY101,151,YY101..(T2,T3)..TS..CBU

 1
65600-25120

LY151..TB

 1
65600H - BOLT, W/WASHER(FOR SIDE GATE, LH)
90119-08464

LY101,111,151..TB

 10
65679A - SEAL, SIDE GATE
65679-37010

LY101,111,151..TB

 1
65679E - SEAL, SIDE GATE
65679-25040

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

右側

 1
65679-25030

LY101,111,151,161,YY101..(T2,T3,TW1)..TS..CBU

左側

 1
65679-37010

LY101,111,151..TB

 1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65040-95A00

LY101,151,YY101..(T2,T3)..TS..CBU

 5
65010-37040

LY101,111,151..TB

2ND,3RD,4TH

 3
65050-37080

LY101,111,151..TB

1ST,5TH

 2
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65040-95A00

LY101,151,YY101..(T2,T3)..TS..CBU

 5
65010-37040

LY101,111,151..TB

2ND,3RD,4TH

 3
65050-37080

LY101,111,151..TB

1ST,5TH

 2
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
66110-95018

LY101,151,YY101..(T2,T3)..TS..CBU

 5
65010-37040

LY101,111,151..TB

2ND,3RD,4TH

 3
65050-37080

LY101,111,151..TB

1ST,5TH

 2
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
66110-95018

LY101,151,YY101..(T2,T3)..TS..CBU

 5
65010-37040

LY101,111,151..TB

2ND,3RD,4TH

 3
65050-37080

LY101,111,151..TB

1ST,5TH

 2
Common parts
90148-80007
90148-80008
90148-80024
90148-80025
90179-08245
90467-08008
90541-06021
